Installing M.2 module into M2_3 slot

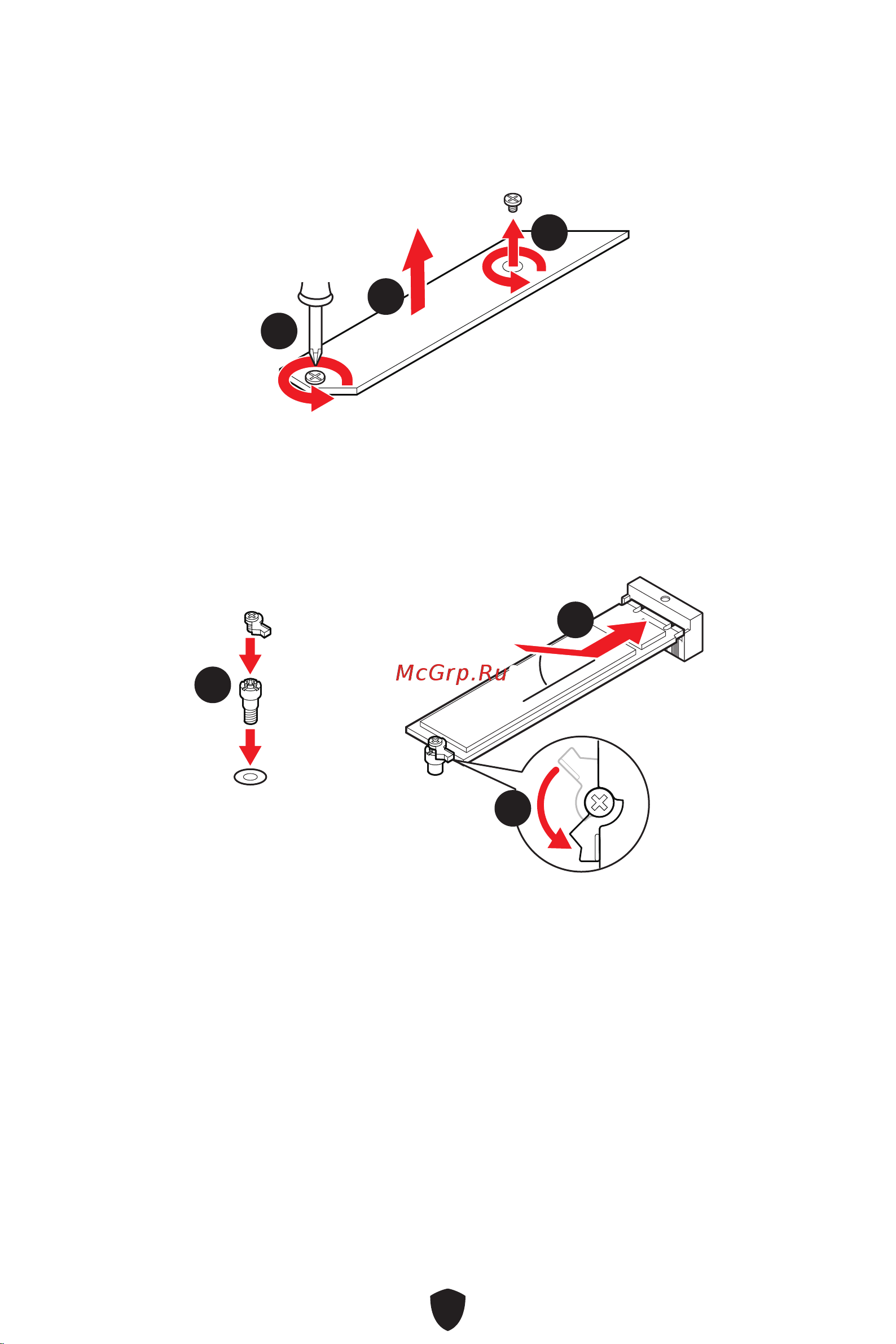

1. Loosen the screws of M.2 Shield Frozr heatsink.

2. Lift up the M.2 Shield Frozr heatsink and remove it.

3. Please install the supplied EZ M.2 Clip kit in the M.2 slot according to your SSD

length. Skip this step, if you install 2280 SSD.

4. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.

5. Rotate the EZ M.2 Clip to fix the M.2 SSD.

30º30º
