BAT1： CMOS Battery

If the CMOS battery is out of charge, the time in the BIOS will be reset and the data of

system configuration will be lost. In this case, you need to replace the CMOS battery.

WARNING

KEEP OUT OF REACH OF CHILDREN

∙

Swallowing can lead to chemical burns, perforation of soft tissue, can death.

∙

Severe burns can occur within 2 hours of ingestion.

∙

If you think batteries might have been swallowed or placed inside any part of

the body, seek immediate medical attention.

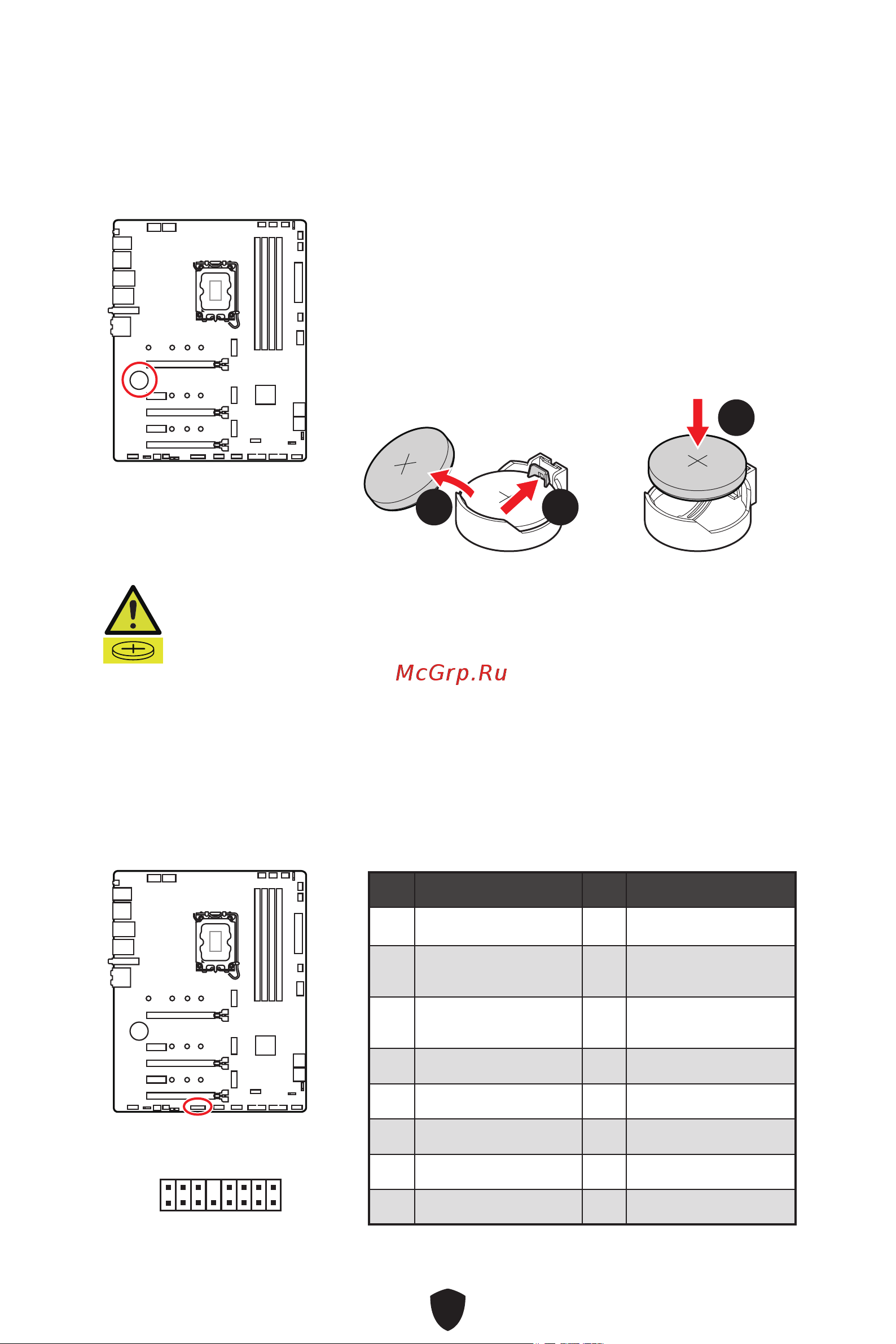

Replacing CMOS battery

1. Push the retainer clip to free the battery.

2. Remove the battery from the socket.

3. Install the new CR2032 coin-cell battery with the +

sign facing up. Ensure that the retainer holds the

battery securely.

1122

JTBT1: Thunderbolt Add-on Card Connector

This connector allows you to connect the add-on Thunderbolt I/O card.

2 16

Pin Signal Name Pin Signal Name

1 TBT_FORCE_PWR 2 TBT_S0IX_ENTRY_REQ

TBT_CIO_PLUG_

EVENT#

4 TBT_S0IX_ENTRY_ACK

5 SLP_S3#_TBT 6

TBT_PSON_

OVERRIDE_N

7 SLP_S5#_TBT 8 No Pin

9 Ground 10 SMBCLK_VSB

11 DG_PEWAKE# 12 SMBDATA_VSB

13 TBT_RTD3_PWR_EN 14 Ground

15 TBT_CARD_DET_R# 16 PD_IRQ#
