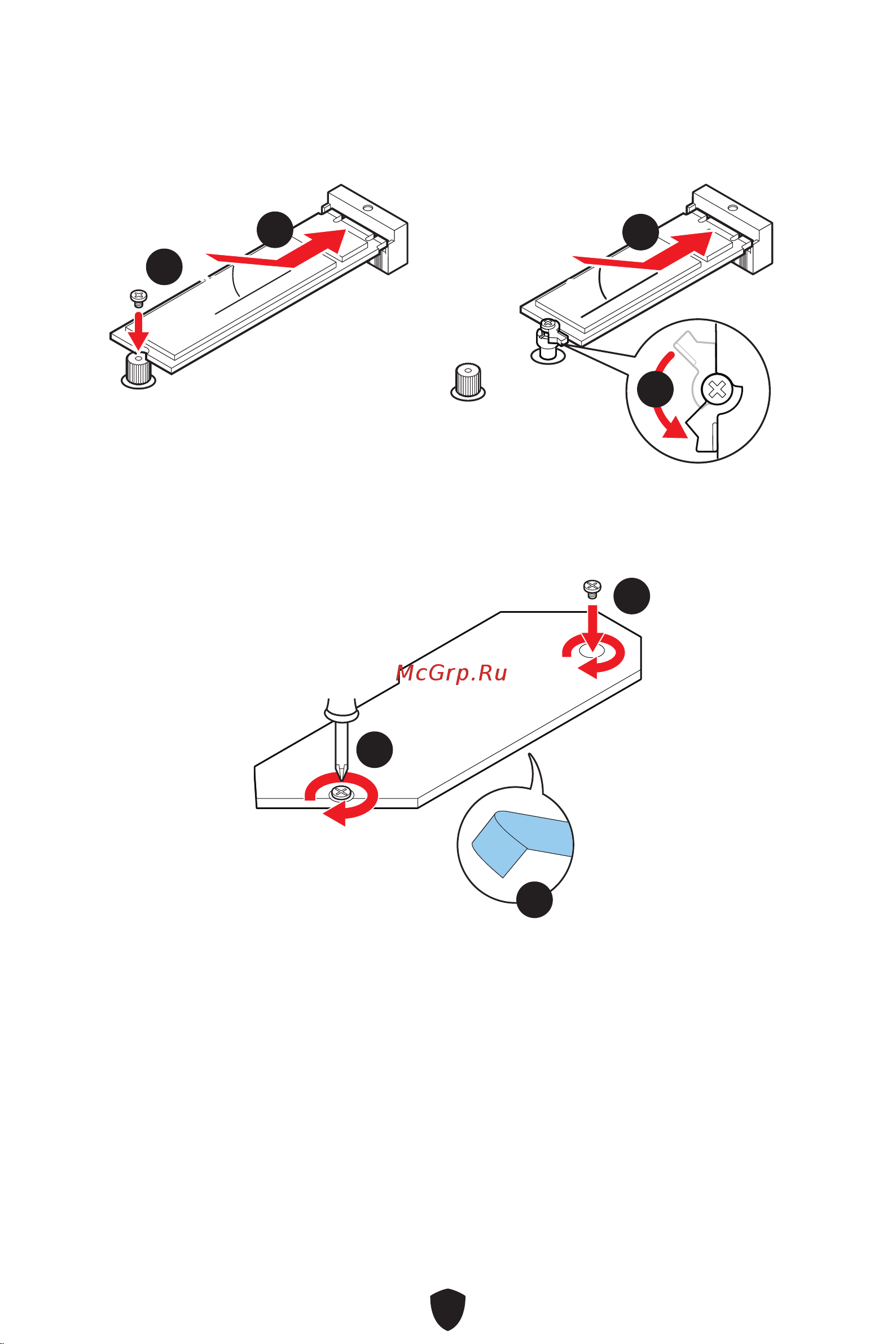

4. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.

5. For 2280 SSD, secure the M.2 SSD in place with the supplied M.2 screw. For 2260

SSD, rotate the EZ M.2 Clip to fix the M.2 SSD.

30º30º

2280 SSD

2260 SSD

6. Remove the protective film from the thermal pad under the M.2 Shield Frozr

heatsink.

7. Put the M.2 Shield Frozr heatsink back in place and secure it.
