JUSB3~4: USB 3.2 Gen 1 Connectors

These connectors allow you to connect USB 3.2 Gen 1 5Gbps ports on the front panel.

⚠

Important

Note that the Power and Ground pins must be connected correctly to avoid possible

damage.

JUSB5: USB 3.2 Gen 2 Type-C

Front Panel

Connector

This connector allows you to connect USB 3.2 Gen 2 10Gbps Type-C connector on the

front panel. The connector has a foolproof design. When you connect the cable, be

sure to connect it with the corresponding orientation.

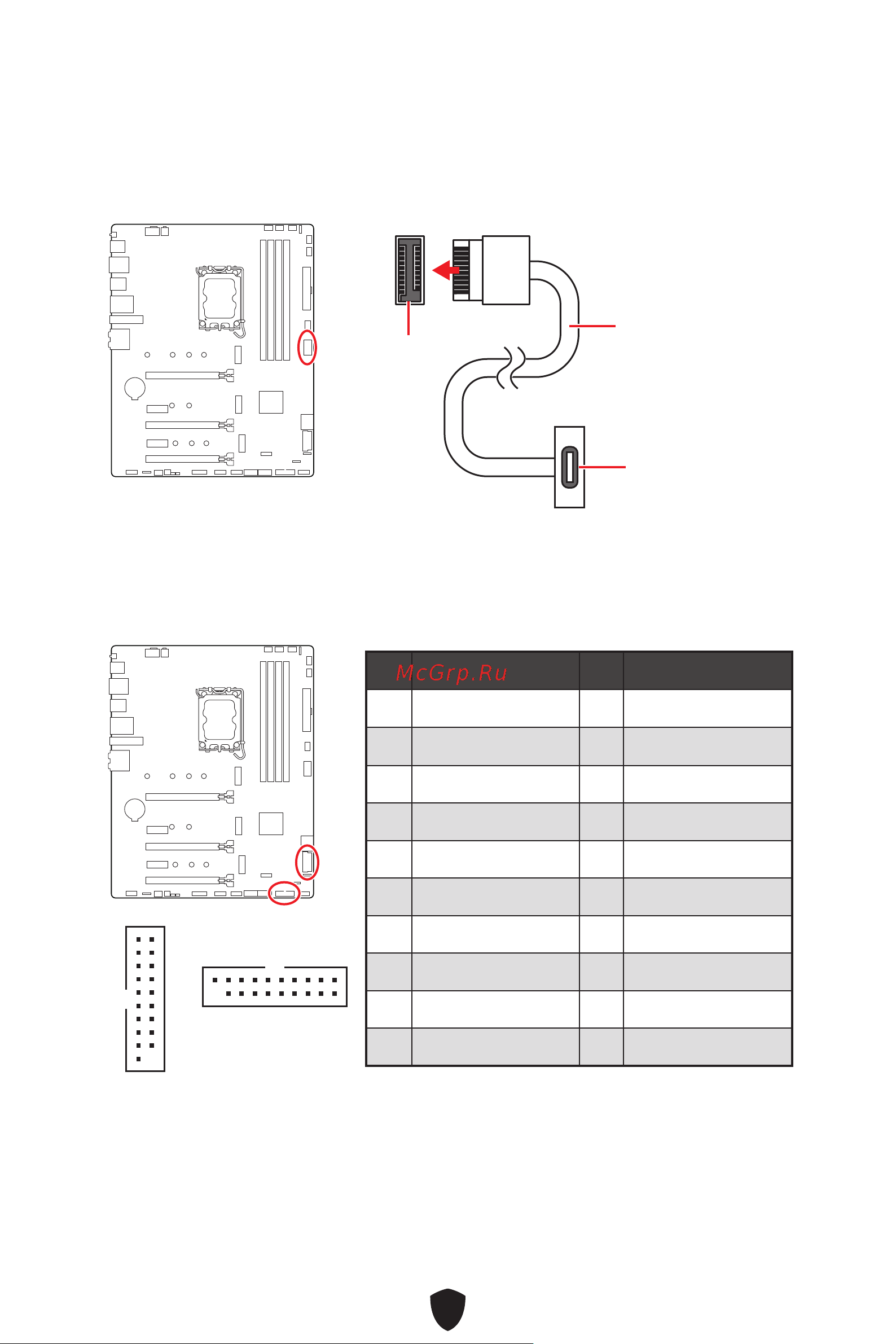

JUSB5

USB Type-C Cable

USB Type-C port on

the front panel

Pin Signal Name Pin Signal Name

1 Power 2 USB3_RX_DN

3 USB3_RX_DP 4 Ground

5 USB3_TX_C_DN 6 USB3_TX_C_DP

7 Ground 8 USB2.0-

9 USB2.0+ 10 Ground

11 USB2.0+ 12 USB2.0-

13 Ground 14 USB3_TX_C_DP

15 USB3_TX_C_DN 16 Ground

17 USB3_RX_DP 18 USB3_RX_DN

19 Power 20 No Pin

1 10

1120

10 11
