Installing M.2 module into M.2 slot

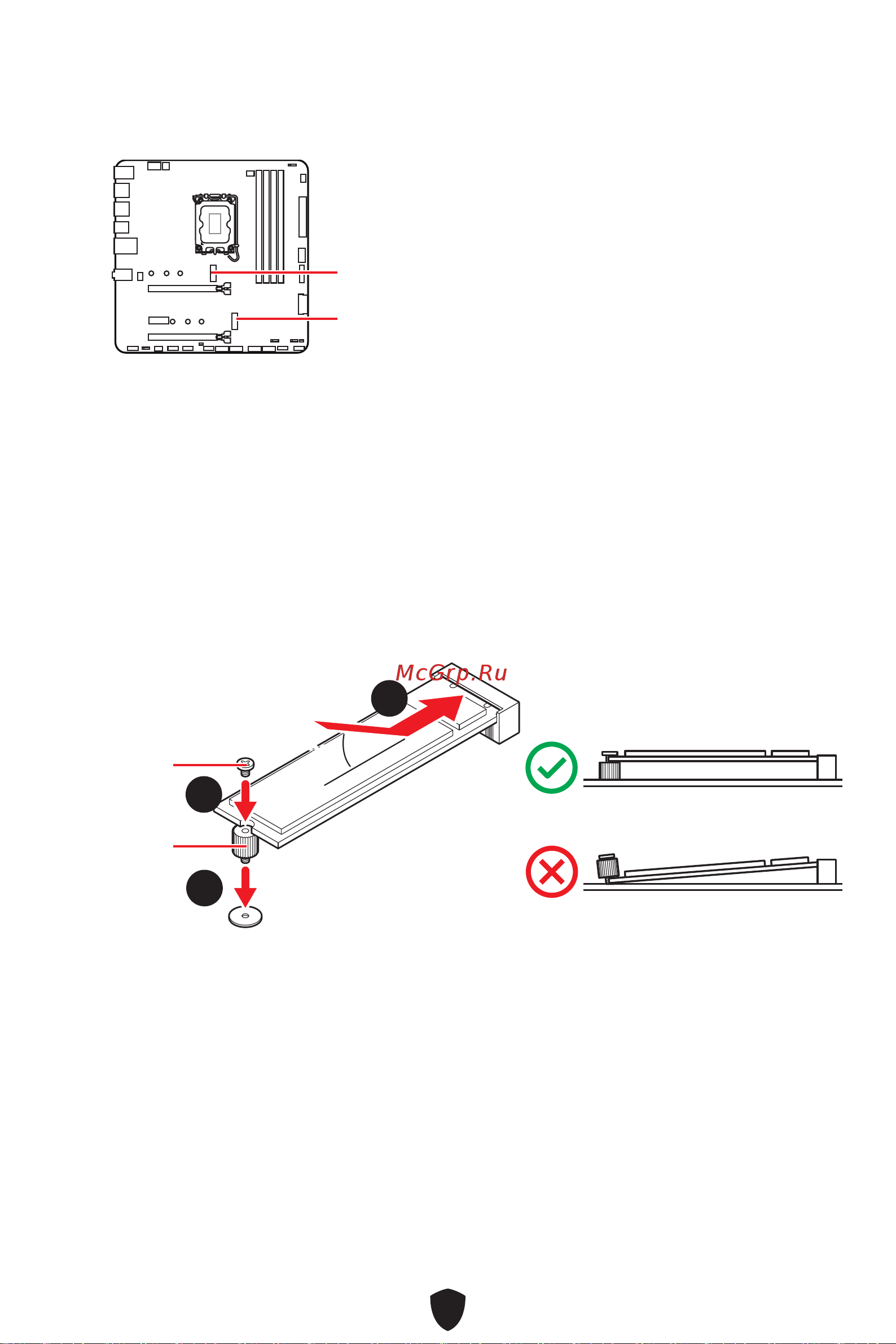

1. Please install the supplied M.2 standoff in the M.2 slot according to your SSD

length.

2. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.

3. Secure the M.2 SSD in place with the supplied M.2 screw.

30º30º

M.2 screw

M.2 standoff

M2_1~2: M.2 Slots (Key M)

M2_1

M2_2

⚠

Important

∙

Intel® RST only supports PCIe M.2 SSD with

UEFI ROM.

∙

If your M.2 SSD equips its own heatsink,

please remove the M.2 rubber cube in the

M.2 slot before installing M.2 SSD. Do not

re-install the heatsink supplied with your

motherboard.
