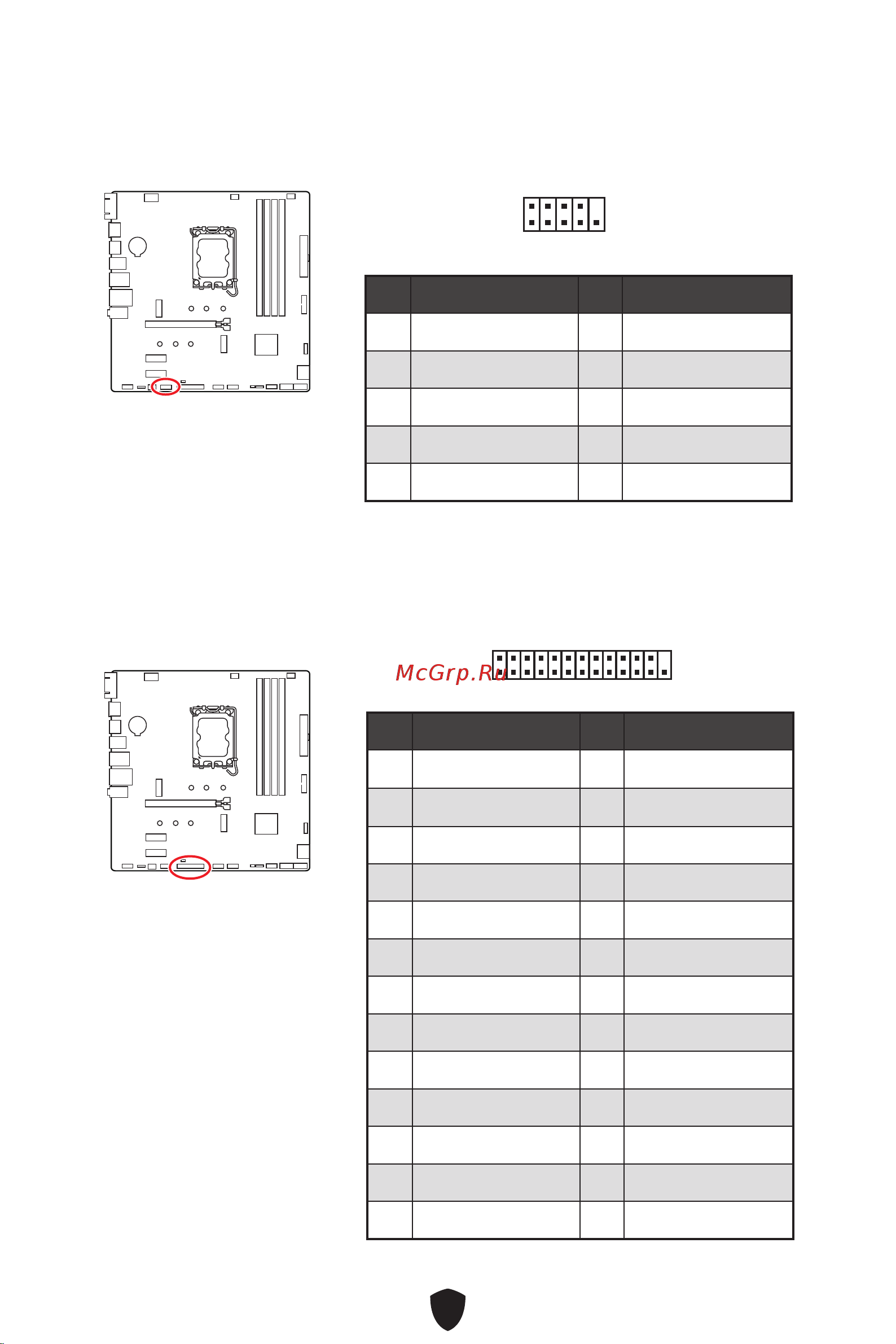

JCOM1: Serial Port Connector

This connector allows you to connect the optional serial port with bracket.

2 10

Pin Signal Name Pin Signal Name

1 DCD 2 SIN

3 SOUT 4 DTR

5 Ground 6 DSR

7 RTS 8 CTS

9 RI 10 No Pin

JLPT1: Parallel Port Connector

This connector allows you to connect the optional parallel port with bracket.

2 26

Pin Signal Name Pin Signal Name

1 RSTB# 2 AFD#

3 PRND0 4 ERR#

5 PRND1 6 PINIT#

7 PRND2 8 LPT_SLIN#

9 PRND3 10 Ground

11 PRND4 12 Ground

13 PRND5 14 Ground

15 PRND6 16 Ground

17 PRND7 18 Ground

19 ACK# 20 Ground

21 BUSY 22 Ground

23 PE 24 Ground

25 SLCT 26 No Pin
