M2_1~2: M.2 Slots (Key M)

M2_1

M2_2

⚠

Important

∙

Intel® RST only supports PCIe M.2 SSD with

UEFI ROM.

∙

If your M.2 SSD equips its own heatsink,

please remove the M.2 plate or rubber cube

in the M.2 slot before installing M.2 SSD.

Do not re-install the heatsink supplied with

your motherboard.

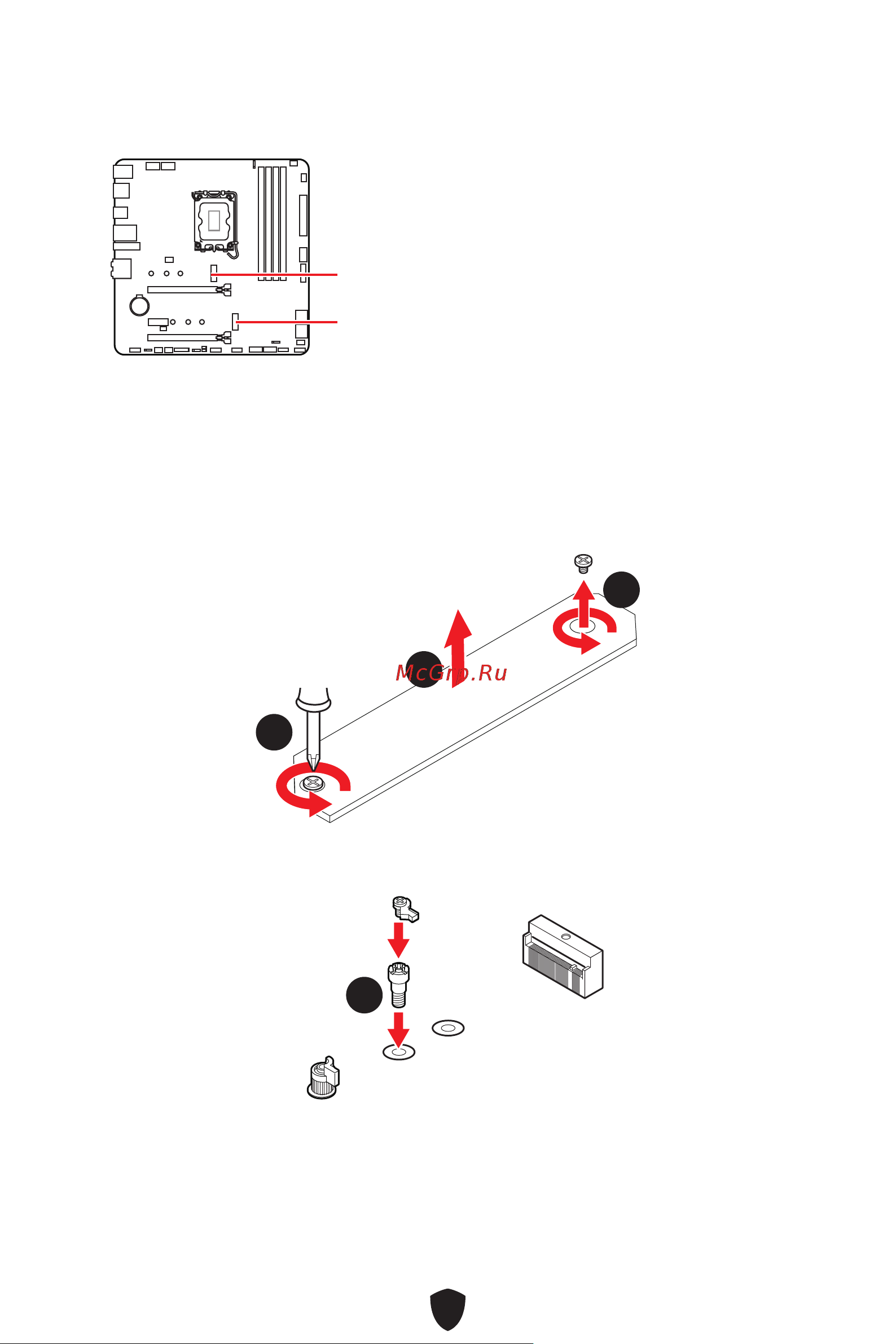

Installing M.2 module into M2_1 slot

(For MAG B760M MORTAR MAX WIFI)

1. Loosen the screws of M.2 Shield Frozr heatsink.

2. Lift up the M.2 Shield Frozr heatsink and remove it.

3. Install the supplied EZ M.2 Clip kit according to the 2242/ 2260 SSD length. Skip

this step if you install 2280 SSD.
