Installing M.2 module into M2_2 slot

(For MAG B760M MORTAR MAX WIFI)

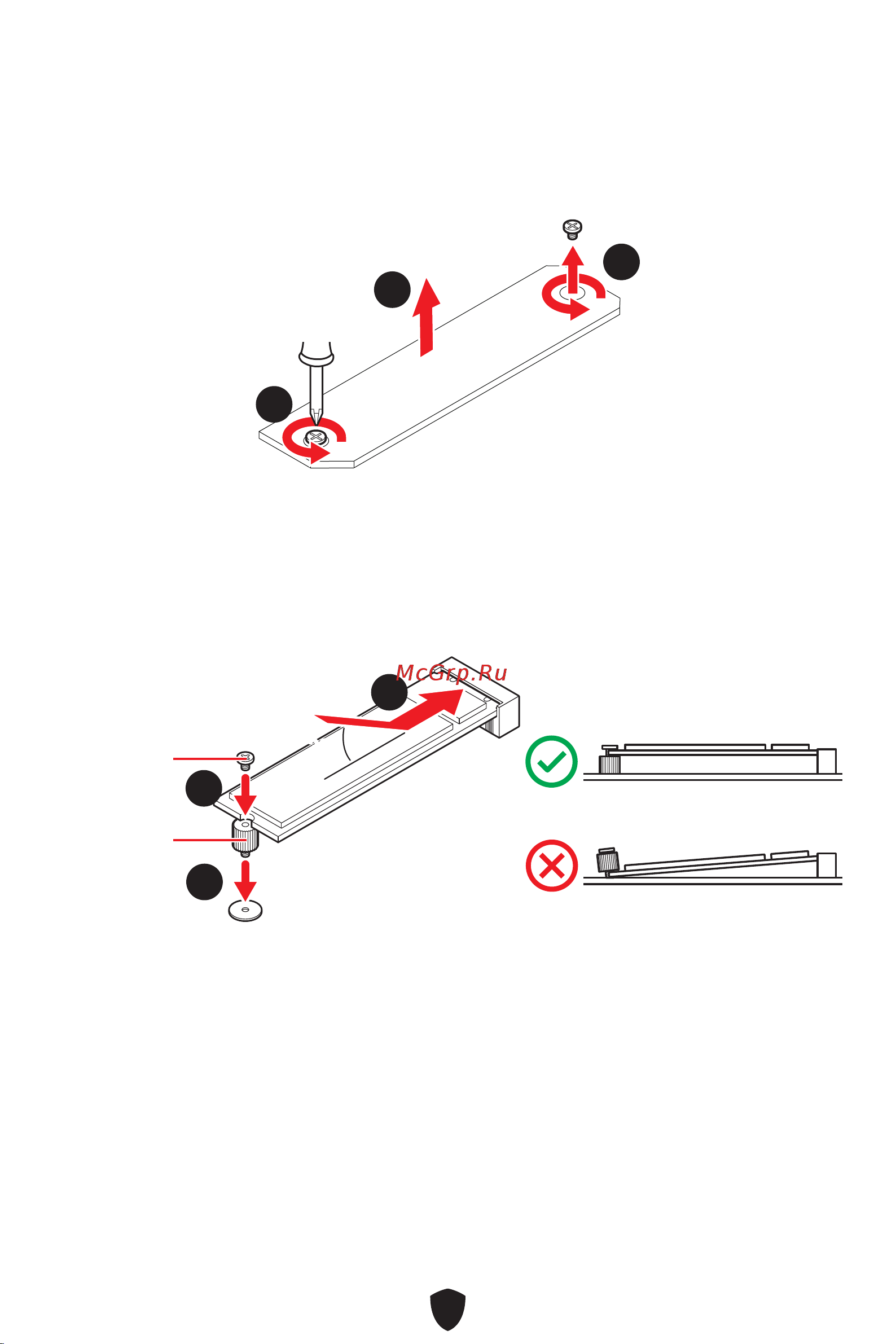

1. Loosen the screws of M.2 Shield Frozr heatsink.

2. Lift up the M.2 Shield Frozr heatsink and remove it.

3. Please install the supplied M.2 standoff in the M.2 slot according to your SSD

length. Skip this step if you install 2280 SSD.

4. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.

5. Secure the M.2 SSD in place with the supplied M.2 screw. Skip this step if you

install 2280 SSD.

30º30º

M.2 screw

M.2 standoff
