Installing M.2 module for M2_1 slot

(For MAG B760M MORTAR WIFI & MAG B760M MORTAR)

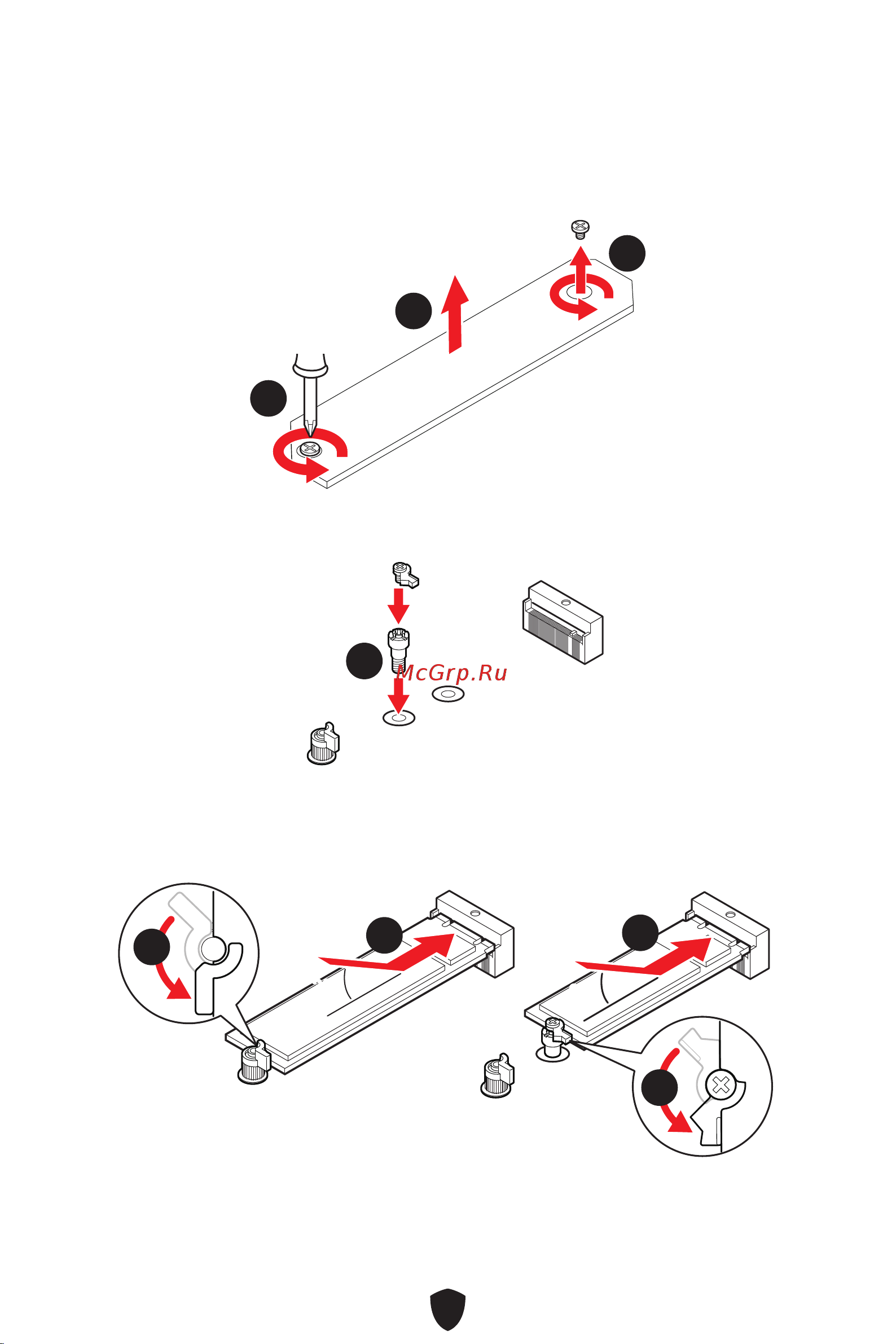

1. Loosen the screws of M.2 Shield Frozr heatsink.

2. Lift up the M.2 Shield Frozr heatsink and remove it.

3. Install the supplied EZ M.2 Clip kit according to the 2242/ 2260 SSD length. Skip

this step if you install 2280 SSD.

4. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.

5. Rotate the EZ M.2 Clip to fix the M.2 SSD.

30º30º

2280 SSD

2260/ 2242

SSD
