M2_1~3: M.2 Slots (Key M)

M2_1

M2_2

M2_3

⚠

Important

∙

Intel® RST only supports PCIe M.2 SSD with

UEFI ROM.

∙

If your M.2 SSD equips its own heatsink, please

remove the M.2 plates or rubber cubes in the

M.2 slots before installing M.2 SSD. Do not

re-install the heatsinks supplied with your

motherboard.

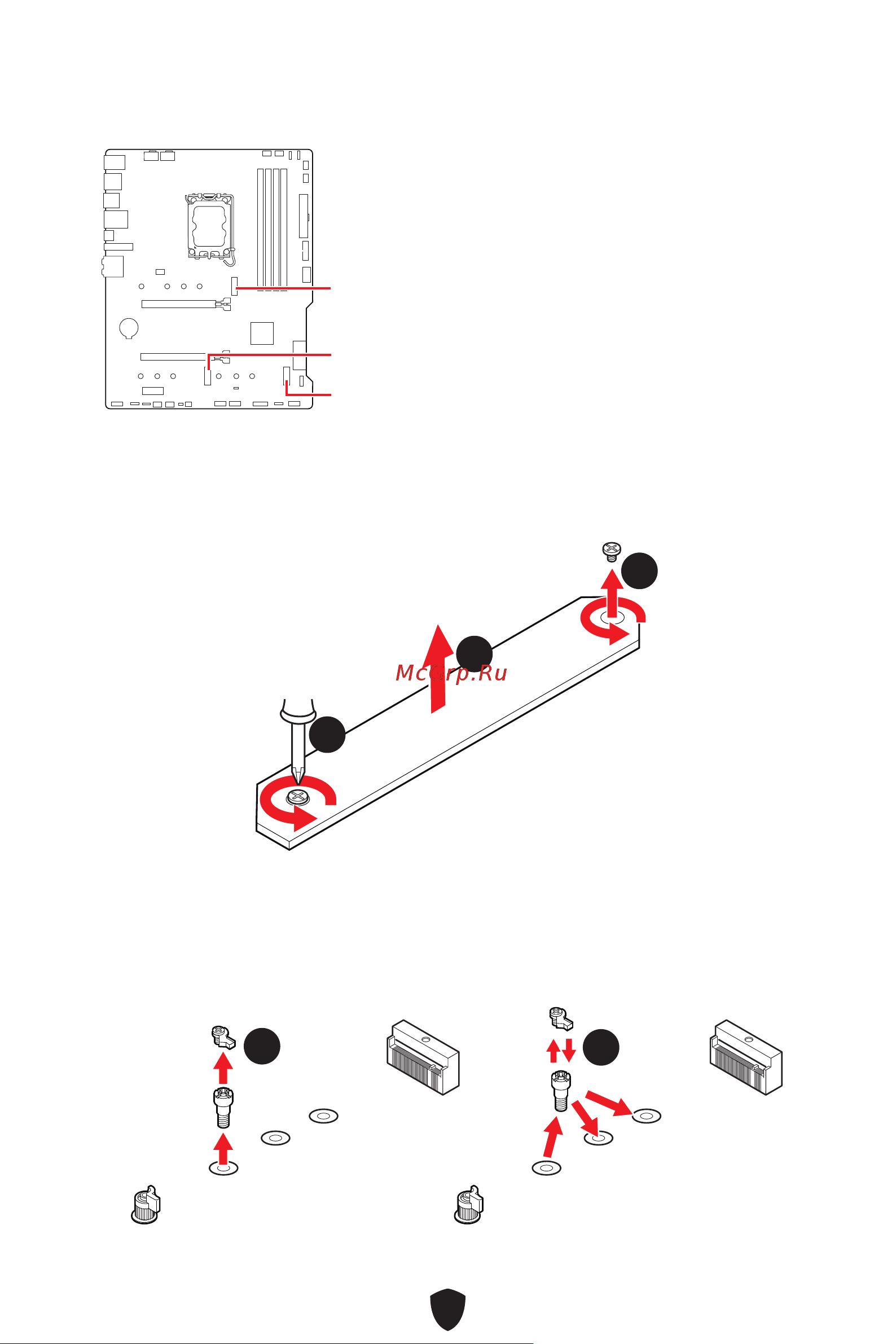

Installing M.2 module into M2_1 slot

1. Loosen the screws of M.2 Shield Frozr heatsink.

2. Lift up the M.2 Shield Frozr heatsink and remove it.

3. Remove or exchange the screws according to your SSD length. Skip this step, if you

install 2280 SSD.

22110

2260

2242
