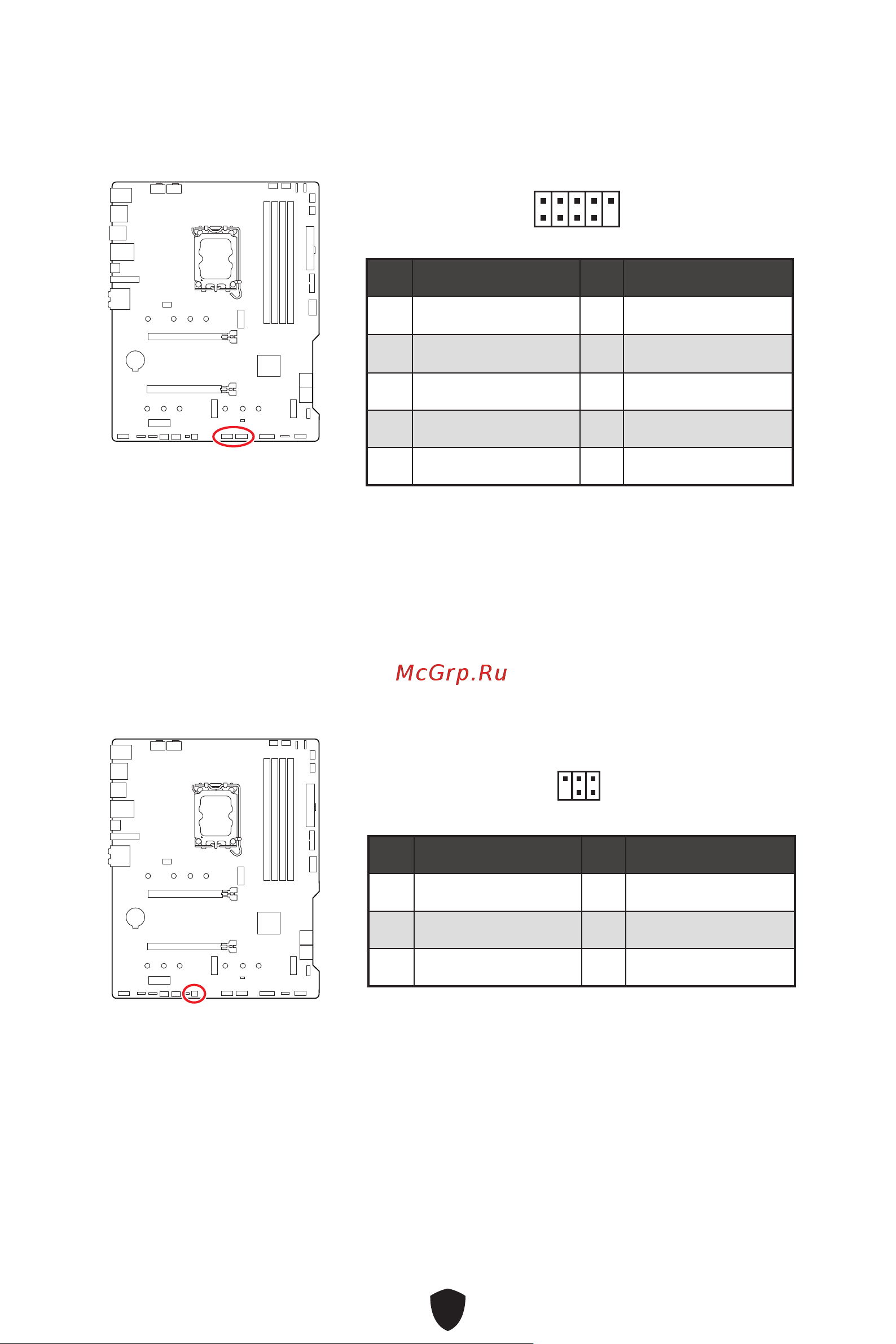

JUSB1~2: USB 2.0 Connectors

These connectors allow you to connect USB 2.0 ports on the front panel.

⚠

Important

∙

Note that the VCC and Ground pins must be connected correctly to avoid possible

damage.

∙

In order to recharge your iPad, iPhone and iPod through USB ports, please install

MSI Center utility.

Pin Signal Name Pin Signal Name

1 VCC 2 VCC

3 USB0- 4 USB1-

5 USB0+ 6 USB1+

7 Ground 8 Ground

9 No Pin 10 NC

2 10

JDASH1 : Tuning Controller Connector

This connector is used to connect an optional Tuning Controller module.

Pin Signal Name Pin Signal Name

1 No Pin 2 NC

3 MCU_SMB_SCL_M 4 MCU_SMB_SDA_M

5 VCC5 6 Ground

2 6
