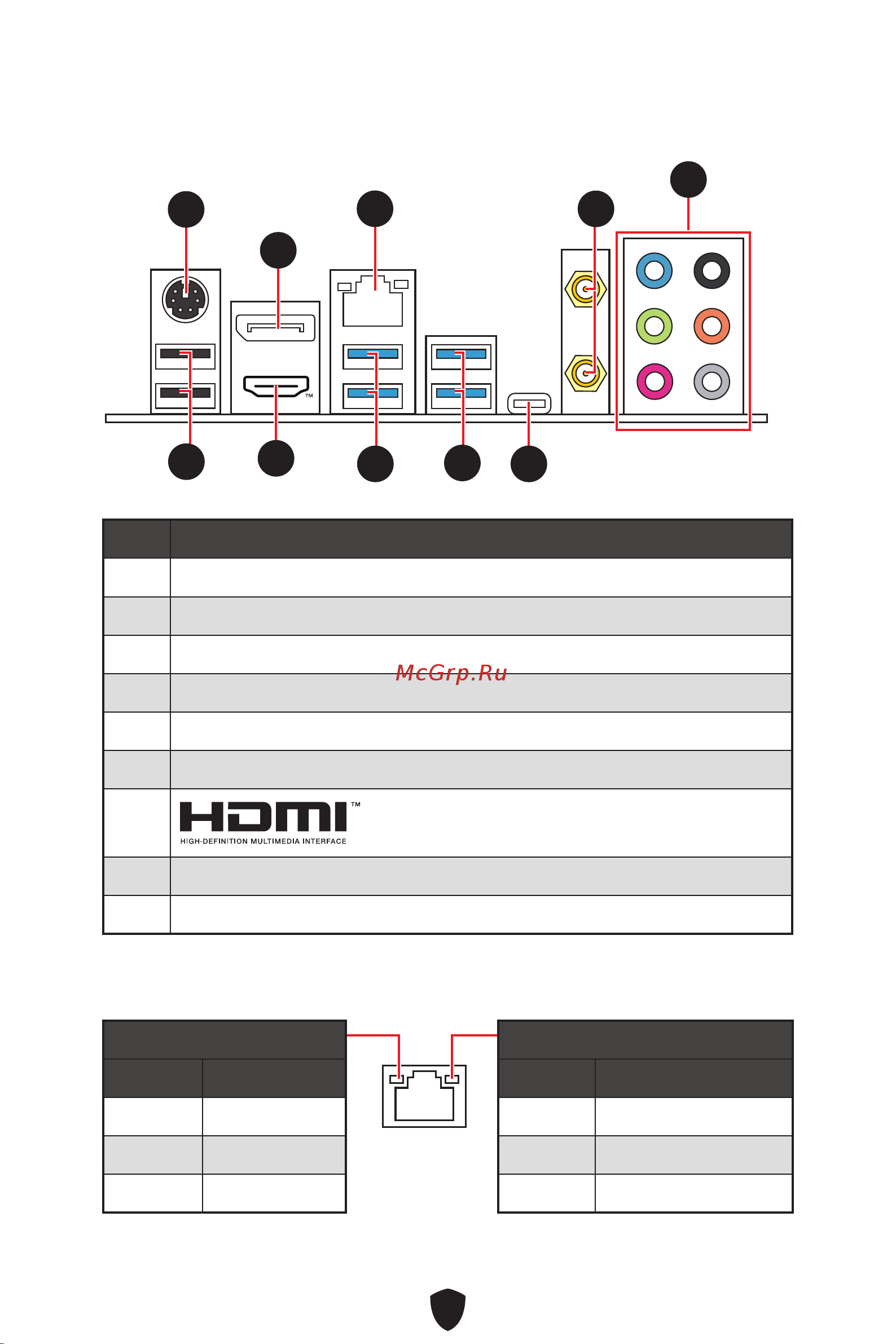

Back Panel Connectors

Item Description

1 PS/2 Mouse/Keyboard port

2 DisplayPort port

3 2.5 Gbps LAN port

4 Wi-Fi Antenna connectors

5 Audio ports

6 USB 2.0 Type-A ports (From Z690 chipset)

8 USB 3.2 Gen 1 5Gbps Type-A ports (From Z690 chipset)

9 USB 3.2 Gen 2x2 20Gbps Type-C port (From Z690 chipset)

LAN Port LED Status Table

Link/ Activity LED

Status Description

Off No link

Yellow Linked

Blinking Data activity

Speed LED

Status Speed

Off 10 Mbps

Green 100/1000 Mbps

Orange 2.5 Gbps
