For M2_2 slot

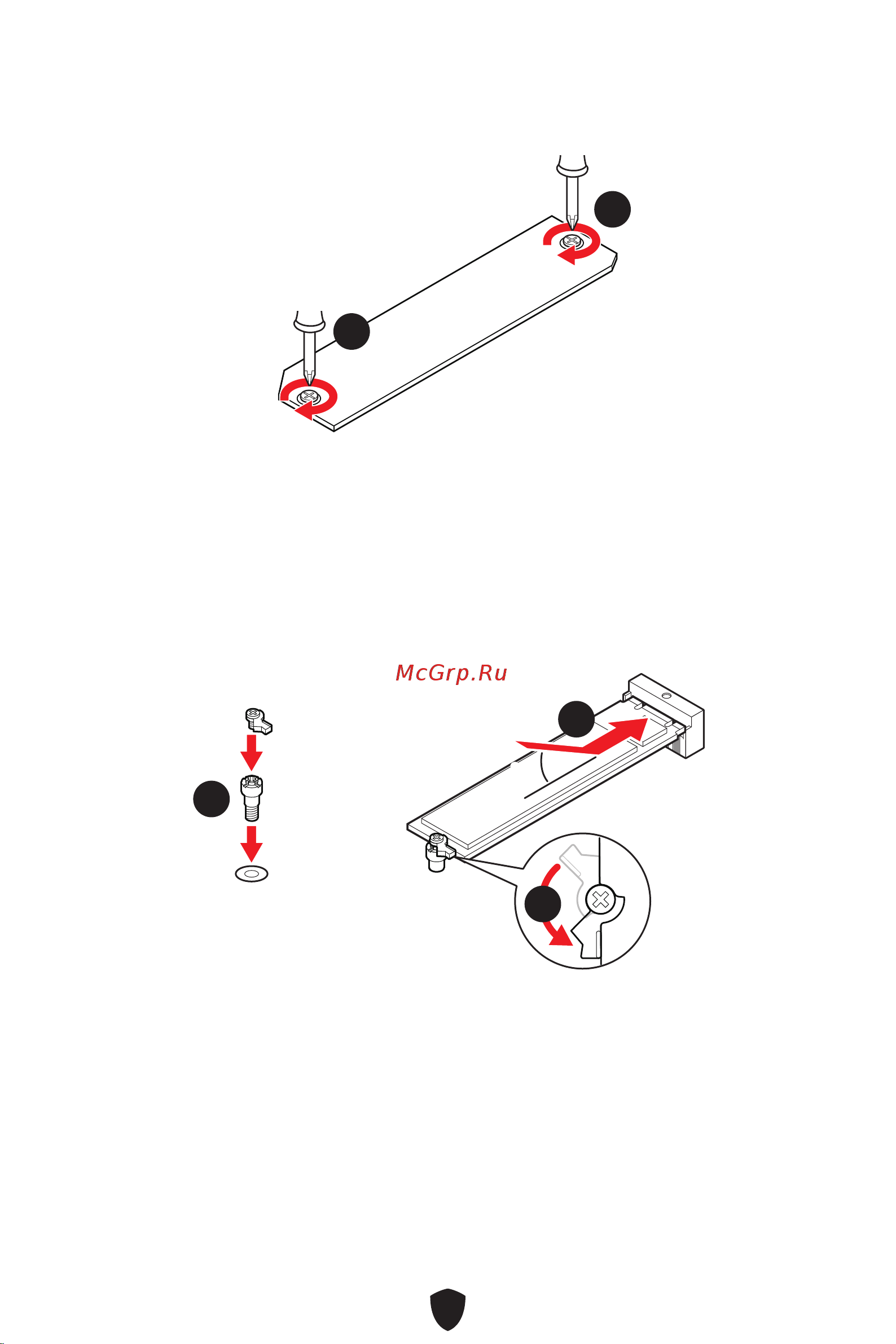

1. If there is no EZ M.2 Clip installed, please install the supplied EZ M.2 Clip kit in the

M.2 slot according to your SSD length.

2. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.

3. Rotate the EZ M.2 Clip to fix the M.2 SSD.

30º30º

6. Put the M.2 SHIELD FROZR heatsink back in place and secure it.
