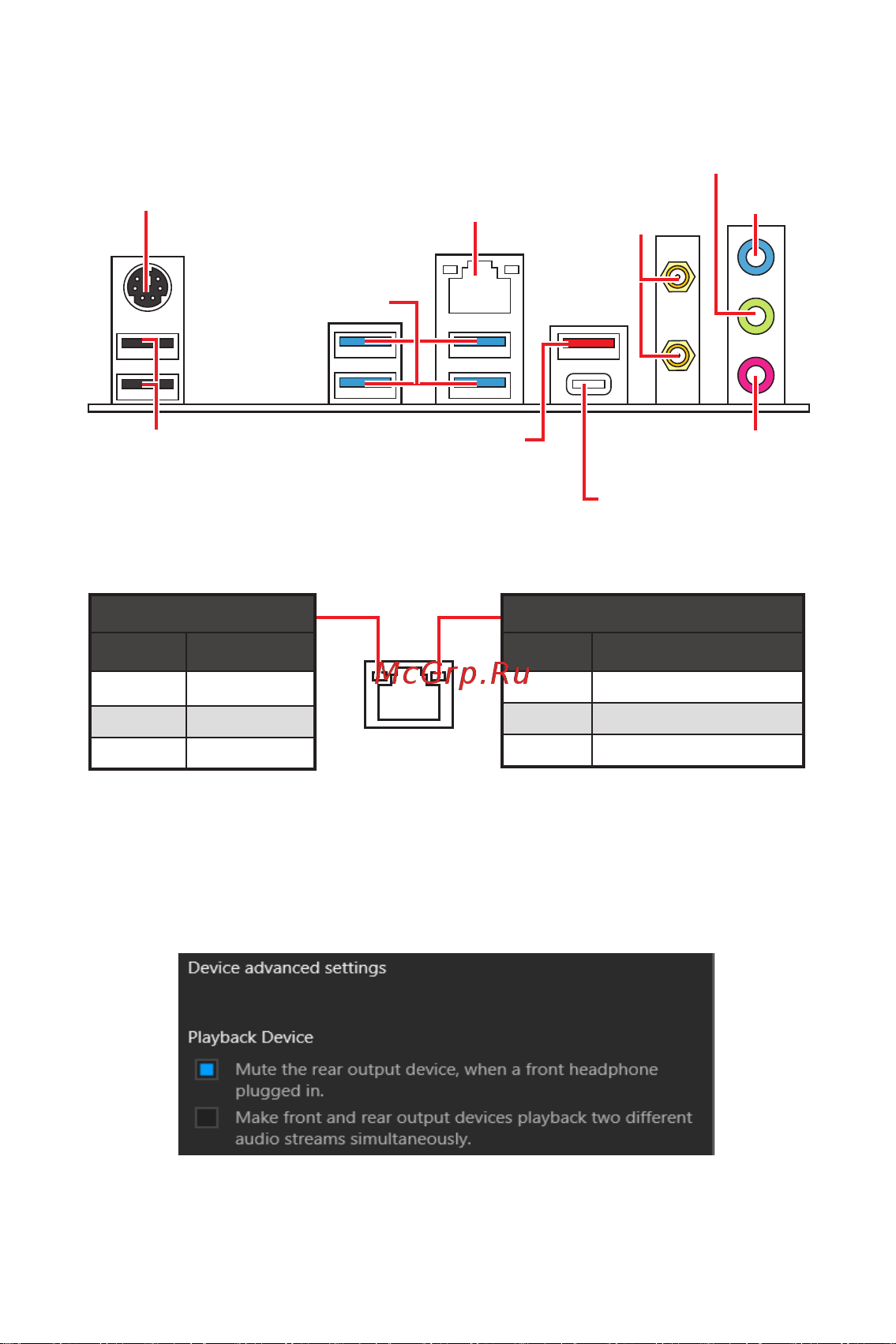

Rear I/O Panel

Link/ Activity LED

Status Description

Off No link

Yellow Linked

Blinking Data activity

Speed LED

Status Description

Off 10 Mbps connection

Green 100/ 1000 Mbps connection

Orange 2.5 Gbps connection

LAN Port LED Status Table

Audio 7.1-channel Configuration

To configure 7.1-channel audio, you have to connect front audio I/O module to JAUD1

connector and follow the below steps.

1. Click on the Realtek HD Audio Manager > Advanced Settings to open the dialog

below.

2. Select Mute the rear output device, when a front headphone plugged in.

3. Plug your speakers to audio jacks on rear and front I/O panel. When you plug into

a device at an audio jack, a dialogue window will pop up asking you which device

is current connected.

USB 3.2 Gen 1

5Gbps Type-A

PS/2 Combo port

2.5 Gbps LAN

USB 2.0 Type-A

Line-in

Mic-in

Line-out

USB 3.2 Gen 2

10Gbps Type-A

USB 3.2 Gen 2

10Gbps Type-C

Wi-Fi Antenna

connectors
