Overview of Components

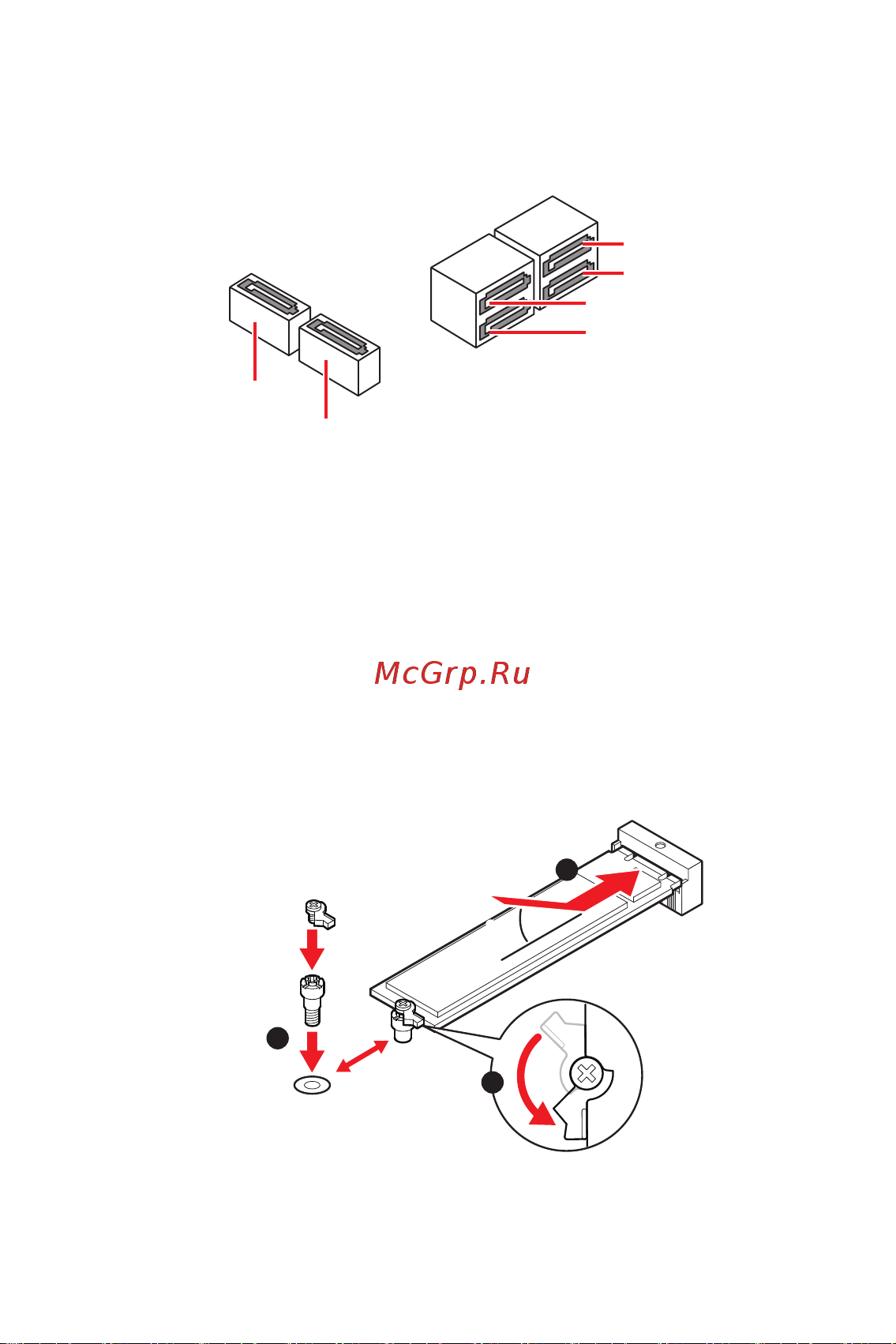

SATA5~8, SATA_A1& SATA_B1: SATA 6Gb/s Connectors

These connectors are SATA 6Gb/s interface ports. Each connector can connect to one

SATA device.

SATA5

SATA7

SATA6

SATA_B1

SATA_A1

SATA8

⚠

Important

∙

SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

∙

Please do not fold the SATA cable at a 90-degree angle. Data loss may result

during transmission otherwise.

∙

SATA cables have identical plugs on either sides of the cable. However, it is

recommended that the at connector be connected to the motherboard for space

saving purposes.

M2_1~2: M.2 Slot (Key M)

Please install the M.2 solid-state drive (SSD) into the M.2 slot as shown below.

30º30º

(Optional)
