Overview of Components Overview of Components

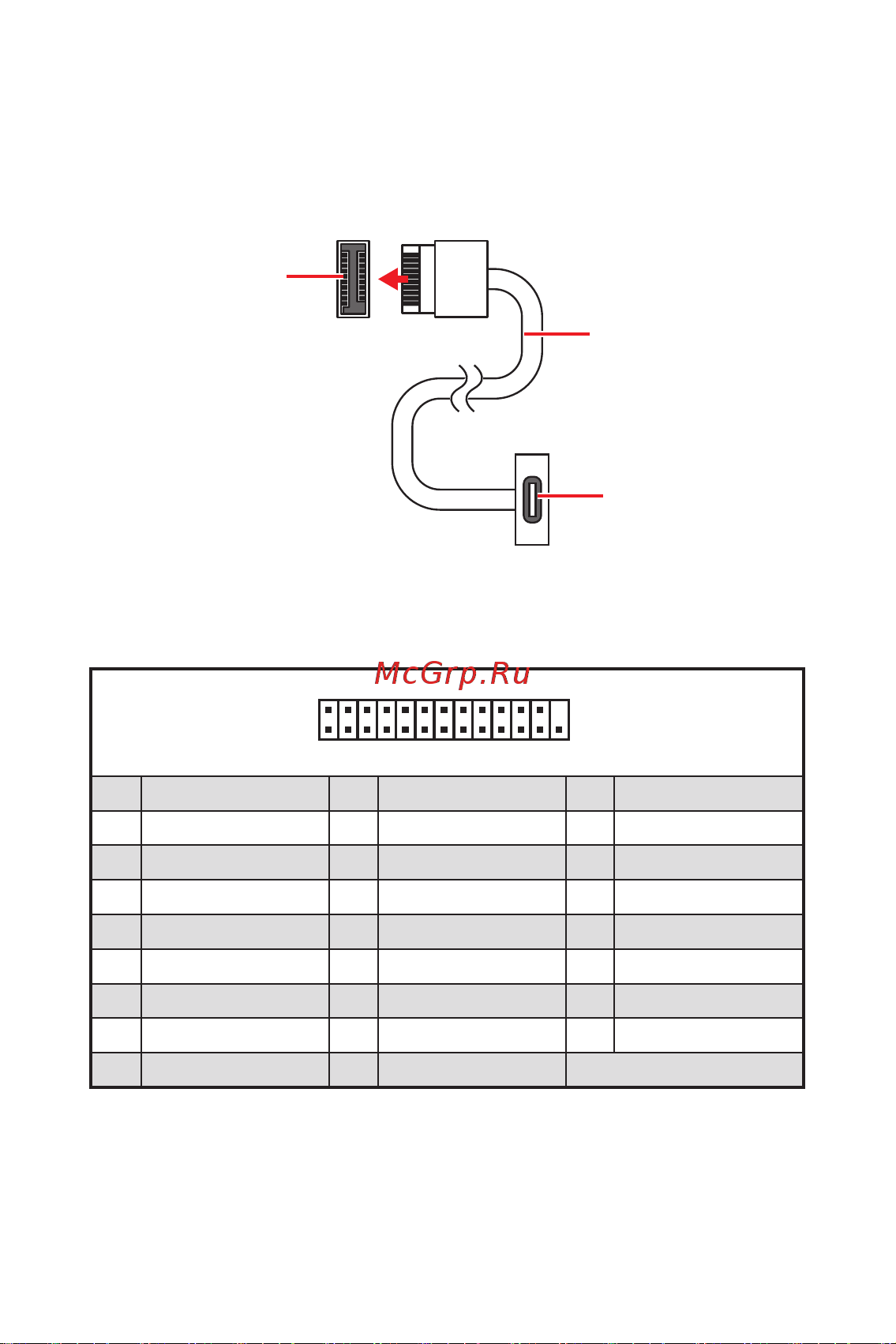

JUSB4: USB 3.2 Gen 1 Type-C Connector

This connector allows you to connect USB 3.2 Gen 1 5Gbps Type-C connector on

the front panel. The connector possesses a foolproof design. When you connect the

cable, be sure to connect it with the corresponding orientation.

JUSB4

USB Type-C Cable

USB Type-C port on the

front panel

2 26

1 RSTB# 2 AFD# 3 PRND0

4 ERR# 5 PRND1 6 PINIT#

7 PRND2 8 LPT_SLIN# 9 PRND3

10 Ground 11 PRND4 12 Ground

13 PRND5 14 Ground 15 PRND6

16 Ground 17 PRND7 18 Ground

19 ACK# 20 Ground 21 BUSY

22 Ground 23 PE 24 Ground

25 SLCT 26 No Pin

JLPT1: Parallel Port Connector

This connector allows you to connect the optional parallel port with bracket.
