组件概述组件概述

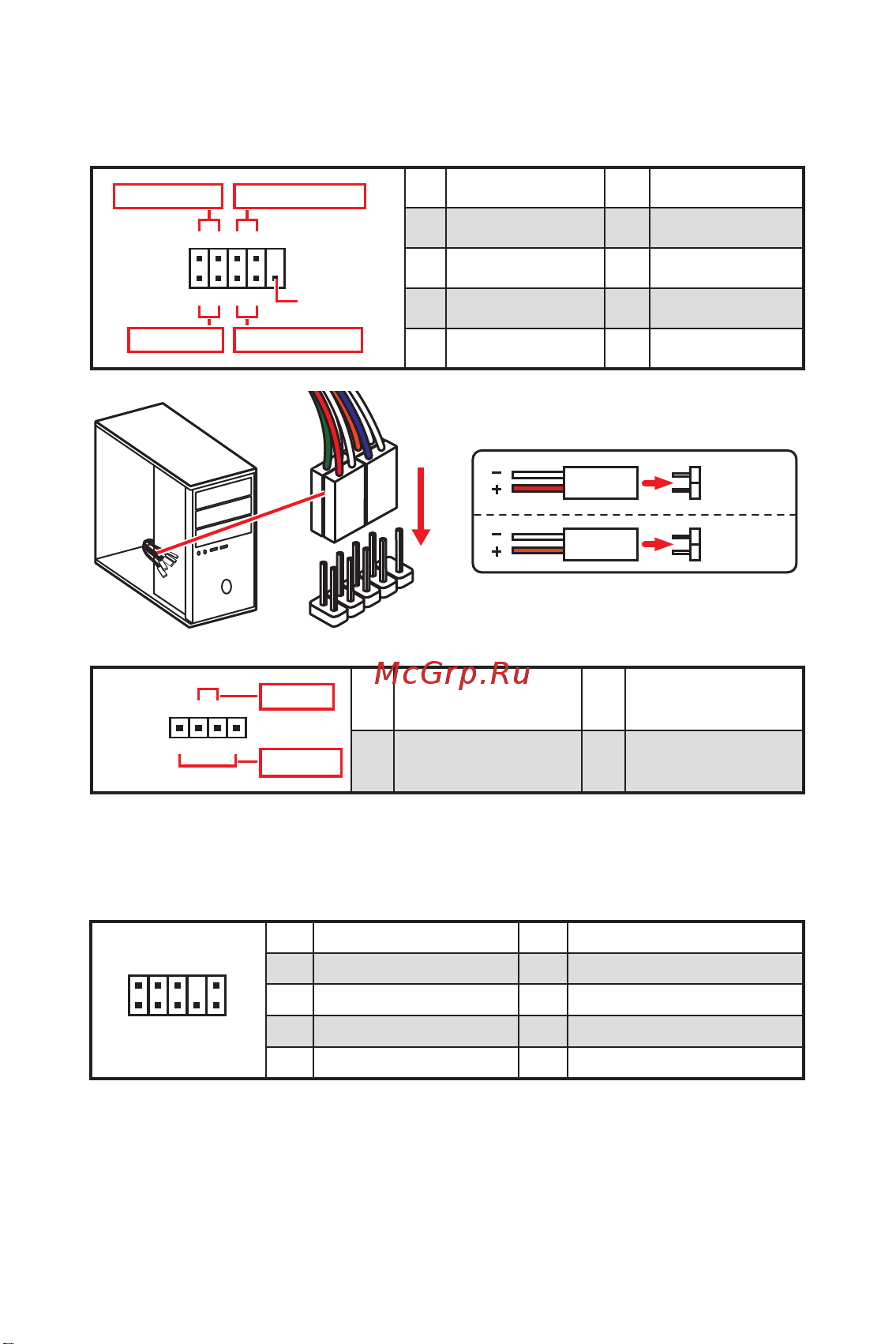

JFP1, JFP2: 前置面板接口

这些接口连接至前置面板上的开关和 LED 灯。

2 10

Power LED

HDD LED Reset Switch

Reserved

Power Switch

1 HDD LED + 2 Power LED +

3 HDD LED - 4 Power LED -

5 Reset Switch 6 Power Switch

7 Reset Switch 8 Power Switch

9 Reserved 10 No Pin

JFP2

Speaker

Buzzer

1 Speaker - 2 Buzzer +

3 Buzzer - 4 Speaker +

HDD LED

RESET SW

HDD LED

HDD LED -

HDD LED +

POWER LED -

POWER LED +

POWER LED

JFP1

JAUD1: 前置音频接口

此接口允许您连接前置面板上音频插孔。

2 10

1 MIC L 2 Ground

3 MIC R 4 NC

5 Head Phone R 6 MIC Detection

7 SENSE_SEND 8 No Pin

9 Head Phone L 10 Head Phone Detection
