- 105 - Appendix

Step 3:

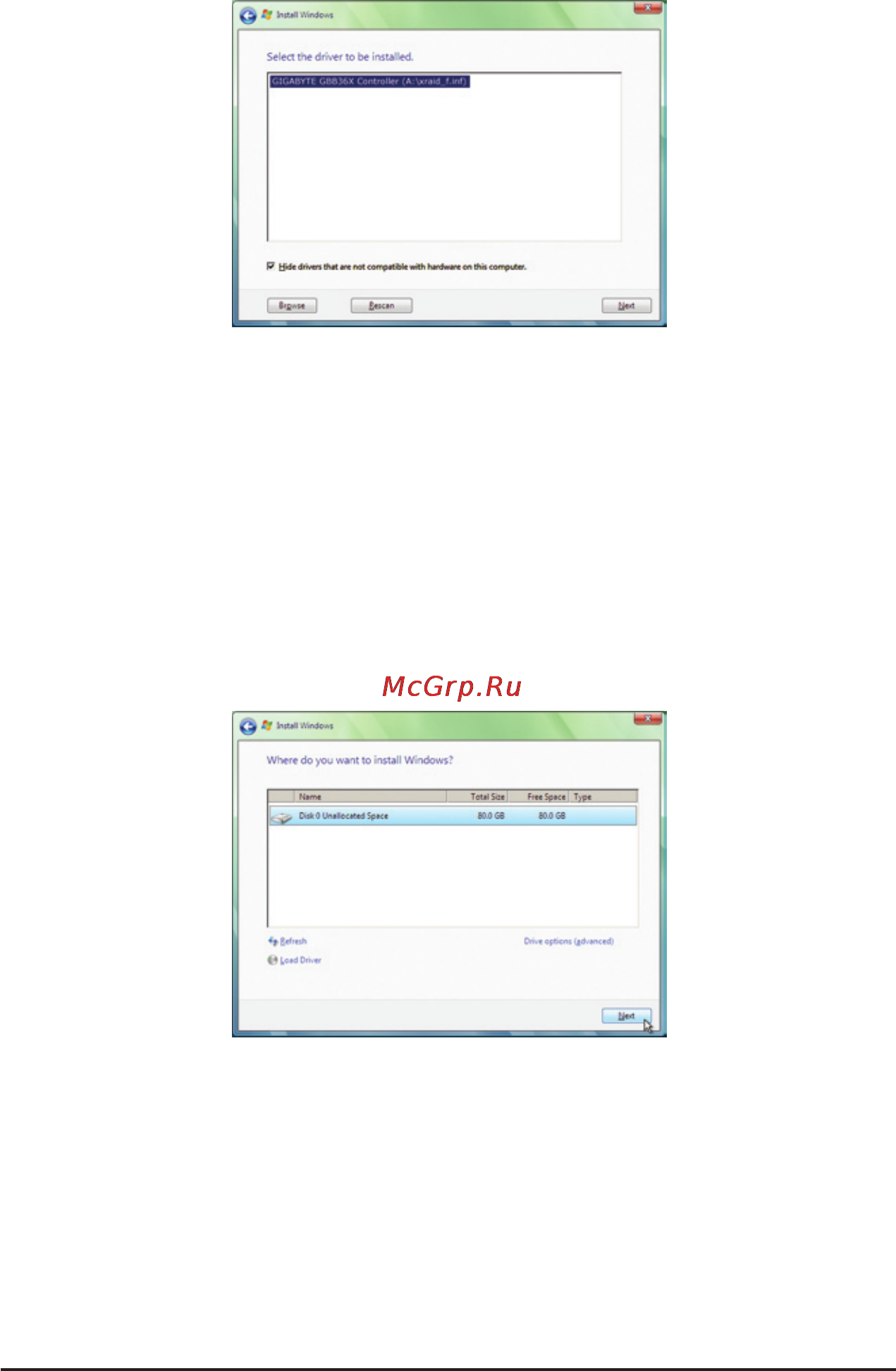

When a screen as shown in Figure 10 appears, select GIGABYTE GBB36X Controller and click Next.

Step 4:

After the driver is loaded, select the RAID/AHCI drive(s) where you want to install the operating system and

then click Next to continue the OS installation (Figure 11).

Figure 10

Figure 11
