L+

L-

R+

R-

REM OUT or ELECTRIC ANT.

HP 1D

GND +BATT

REM OUT or ELECTRIC ANT.

HP 1KD

GNDGND +BATT

Provided

BFH 11

300A

150A 150A

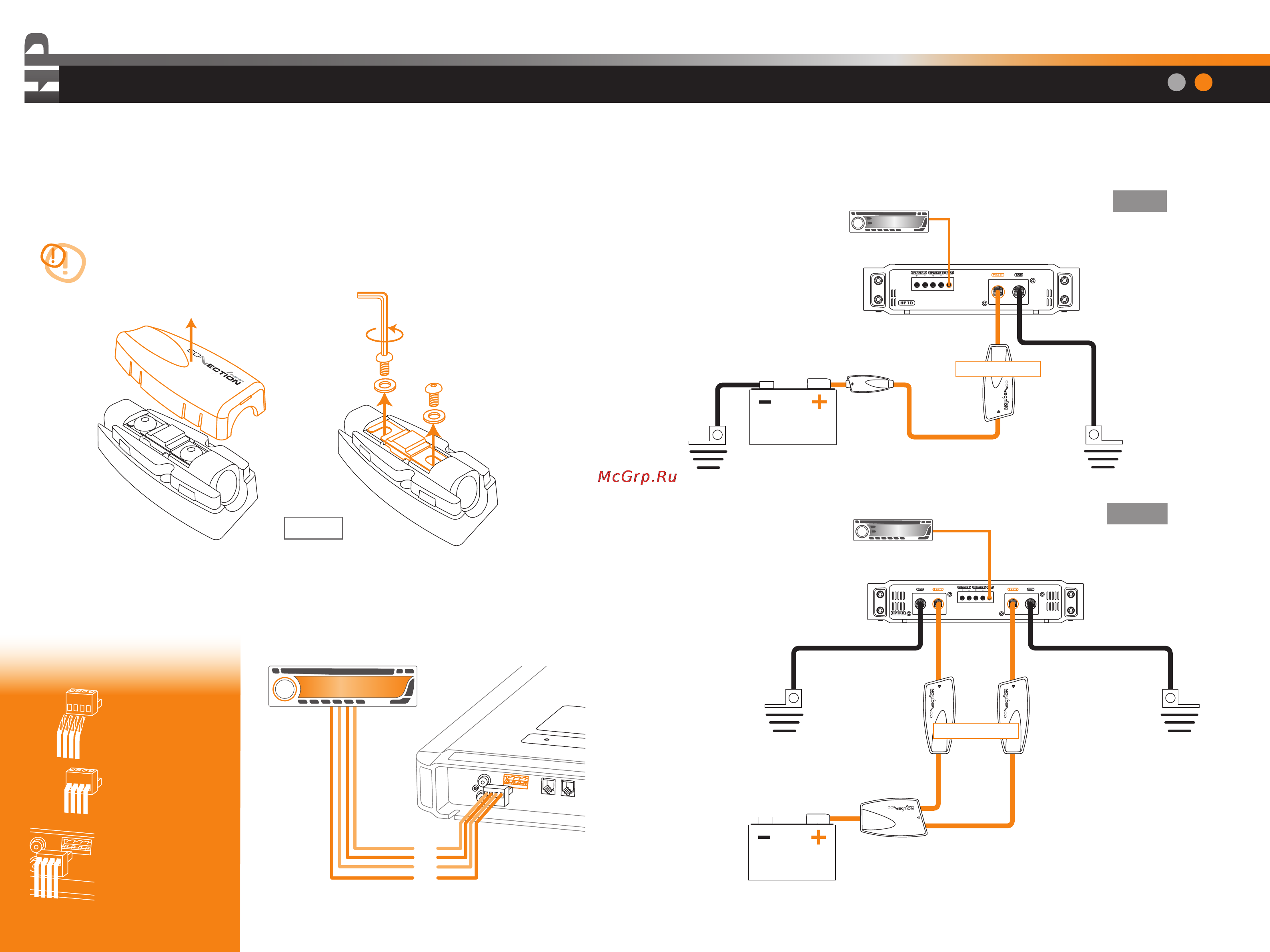

How to replace the fuse

• Remove the protective cover.

• Remove the fuse with a 3mm Allen wrench.

• Be sure that the value of the new fuse is identical to the fuse supplied, then insert it into its seat

tightening the screws thoroughly. Be sure to carry out a perfect connection to avoid false

contacts or voltage drops along the power supply line.

• Insert again the protective shell into its seat.

CAUTION: In order to ensure the proper fuse working tighten the screws making sure

the washer bend and perfectly fit the fuse.

Power Terminals

High Level Input (SPEAKER IN)

For greater convenience you can connect the cables to the specific connector before inserting it

into the inputs panel. Refer to the following instructions. Carry out this operation with amplifier

and head unit off.

1_Peel the cables

2_Fix the cables

into the connector

3_Insert the

connector

Italiano | English

58 59
