IV. БУФЕРИ ЗА ОТОПЛИТЕЛНИ С-МИ 200-2000.

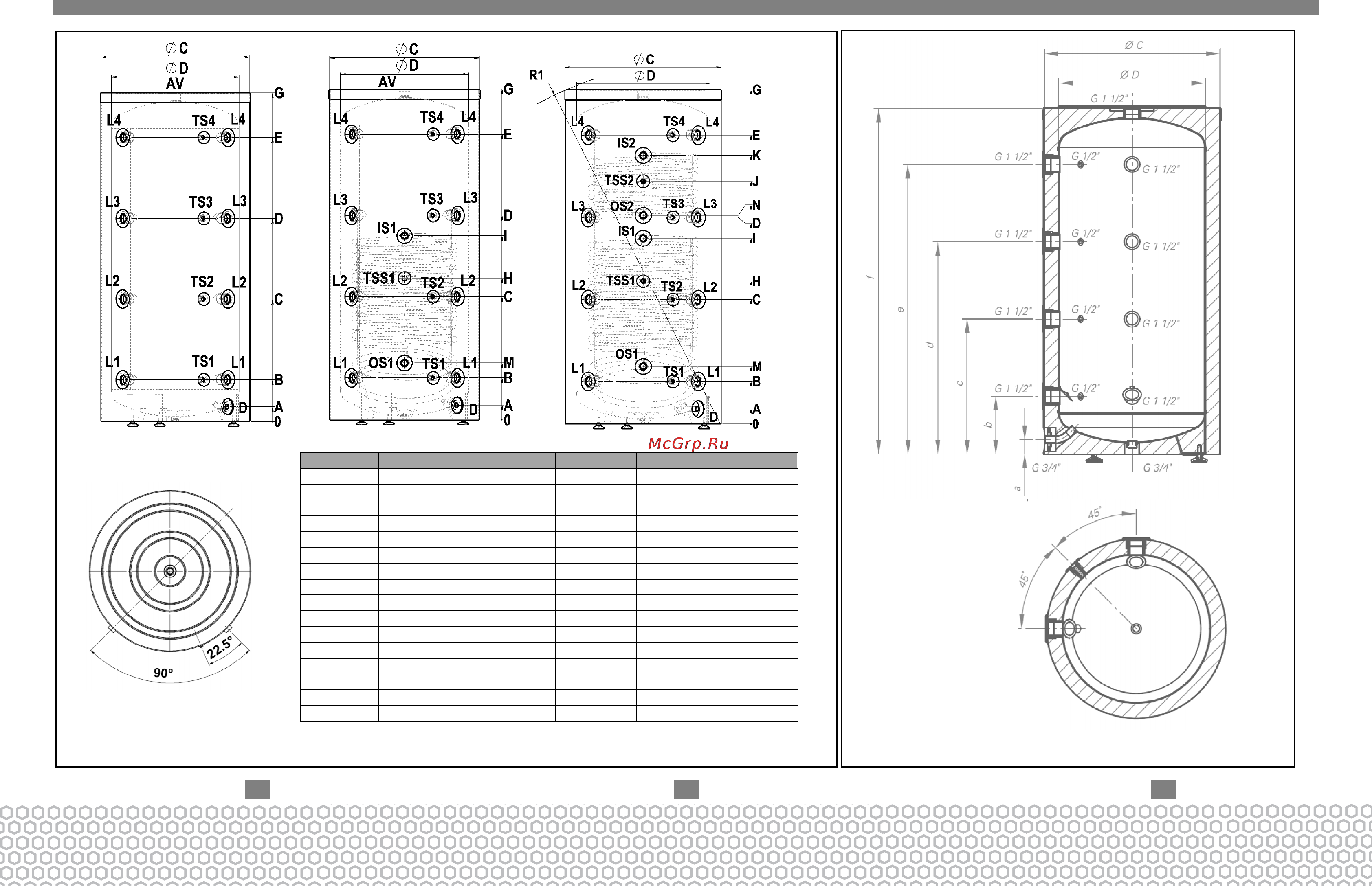

Fig. 1 - V400 -2000; V400 –
2000 S1; V400
L1
level 1
L2
level 2
L3
level 3
L4
level 4
D
IS1
inlet heat exchanger 1
OS1
outlet heat exchanger 1
IS2
inlet heat exchanger 2
OS2
outlet heat exchanger 2
TS1
thermoprobe level 1
TS2
thermoprobe level 2
TS3
thermoprobe level 3
TS4
thermoprobe level 4
TSS1
thermoprobe HE 1
TSS2
thermoprobe HE 2
AV
air vent
GB
Page 5 от 12
BUFFERS FOR CENTRAL HEATING 200-2000
BUFFERE PENTRU
Fig.2 -
V200
2000 S1; V400
- 2000S 2
1500
-
2000
800
-
1000
200
-
500
G 2"
G 1 1/2"
G 1 1/2"
G 2"
G 1 1/2"
G 1 1/2"
G 2"
G 1 1/2"
G 1 1/2"
G 2"
G 1 1/2"
G 1 1/2"
G 3/4"
G 1 1/2"
G 3/4"
inlet heat exchanger 1
G 1 1/2"
G 1 1/2"
G 1"
outlet heat exchanger 1
G 1 1/2"
G 1 1/2"
G 1"
inlet heat exchanger 2
G 1 1/2"
G 1"
G 1"
outlet heat exchanger 2
G 1 1/2"
G 1"
G 1"
thermoprobe level 1
G 1/2"
G 1/2"
G 1/2"
thermoprobe level 2
G 1/2"
G 1/2"
G 1/2"
thermoprobe level 3
G 1/2"
G 1/2"
G 1/2"
thermoprobe level 4
G 1/2"
G 1/2"
G 1/2"
thermoprobe HE 1
G 1/2"
G 1/2"
G 1/2"
thermoprobe HE 2
G 1/2"
G 1/2"
G 1/2"
G 2"
G 1 1/2"
G 1 1/2"
RO
BUFFERE PENTRU
INCALZIRE CENTRALA 200-2000
V200
; V300
