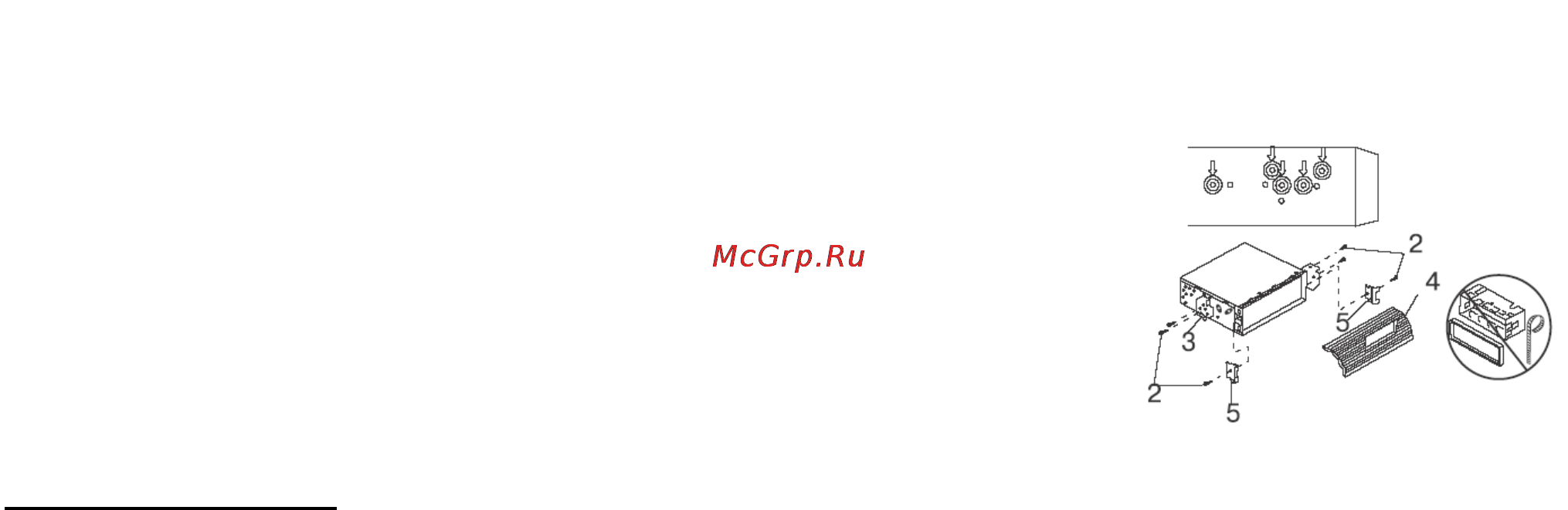

2. DIN REAR-MOUNT (Method B)

For this method, use the screw holes in the lateral sides of the unit. Fix the unit with the help of the factory radio mounting

brackets.

1. Select a position in which the screw holes of the brackets (3) are aligned with the screw

holes in the unit body, and screw in two screws (2) in each side.

2. Screw.

3. Factory radio mounting brackets.

4. Vehicle dashboard.

5. Lock (remove this part).

Note: The outer trim frame and mounting sleeve are not used for method of installation.

Detachable control panel

Detaching the control panel

1. Press OPEN button on the front panel. The panel will go down.

2. Push the panel to the left and then pull it towards you.

Attaching the control panel

 Insert the left side of the control panel into the left fastening of the unit.

Note: The control panel must be attached into the T-Joint.

 Press the right side of the control panel, then insert the right side of the control panel into the right fastening of the unit.

 Lift the panel. Press the right upper part of the panel until a click.

Caution: The control panel can easily be damaged by shocks. After removing it, place it in a protective case and be careful

not to drop it or subject it to strong shocks. The rear connector that connects the main unit and the control panel is an

extremely important part. Be careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.

Note: If the control panel is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked in isopropyl

alcohol to clean the socket on the back of the control panel.
