CUBE

To check the accuracy of line laser level

To check the accuracy of line laser level (slope of plane)

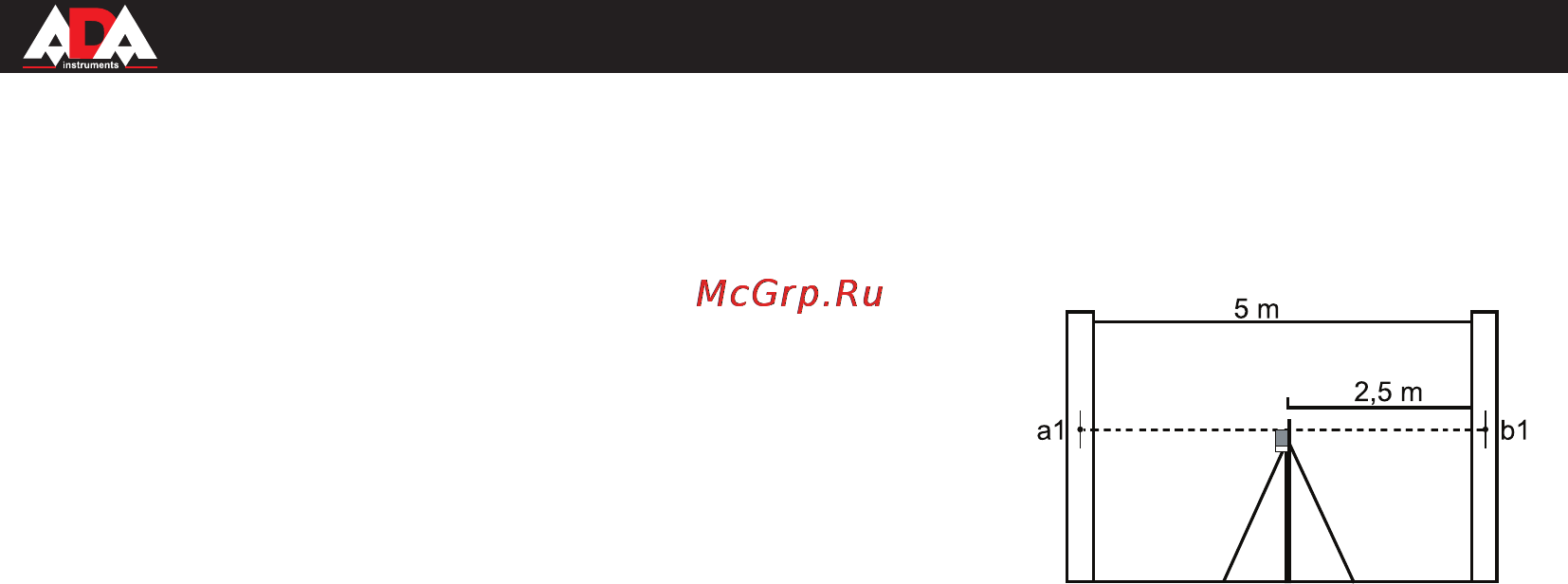

Set up the instrument between two walls, the distance is 5

m.Turn on the Cross Line Laser and mark the point of cross

laser line on the wall.

Set up the instrument 0,5-0,7m away from the wall and make, as

described above, the same masrks. If the difference {a1-b2} and

{b1-b2} is less then the value of “accuracy” (see spesications),

there is no need in calibration.

Example: when you check the accuracy of Cross Line Laser the

difference is {a1-a2}=5 mm and {b1-b2}=7 mm. The

instrument’s error: {b1-b2}-{a1-a2}=7-5=2 mm. Now you can

compare this error with standard error.

If the accuracy of Cross Line Laser isn’t corresponding with

claimed accuracy, contact the authorized service center.
