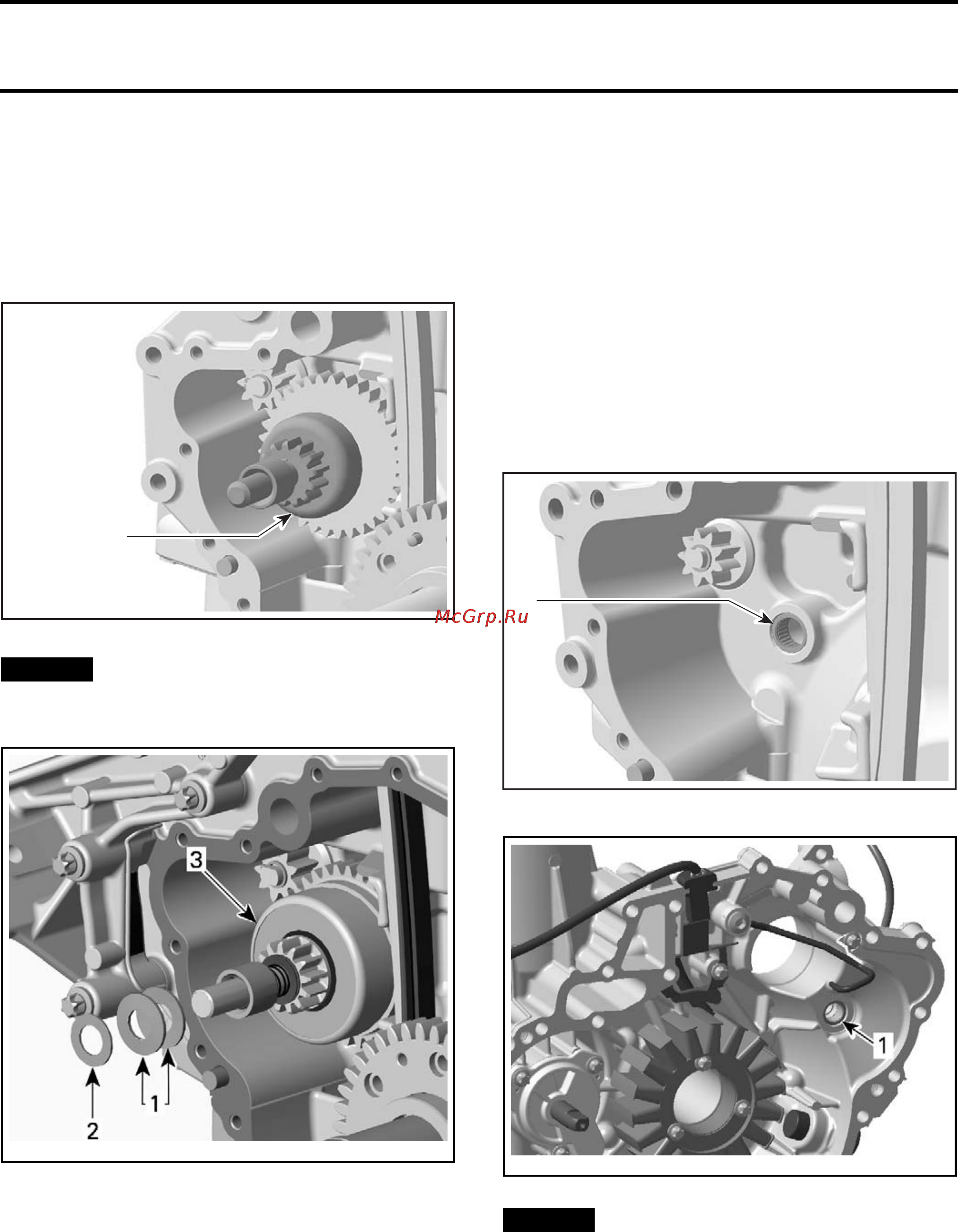

Section 02 ENGINE
Subsection 07 (PTO HOUSING AND MAGNETO)
STARTER DRIVE
Starter Drive Removal
Remove the PTO housing and ring gear as de-
scribed in this subsection.
Remove starter drive assembly.
1
R1503motr55A
1. Starter drive assembly
NOTICE
Be careful not to lose the disc
springs and thrust washer located on the
starter drive shaft.
smr2005-034-002_a
1. Disc springs
2. Thrust washer
3. Starter drive gear
Starter Drive Inspection
Inspect all starter drive parts for excessive wear,
cracks and other defects. Pay attention to the
condition of the drive gear teeth.
Ensure proper operation of the starter drive sprag
clutch.
If any part of the assembly shows signs of ab-
normal wear, cracks, broken teeth or malfunction
(sprag clutch), replace the faulty part.
Starter Drive Installation
For installation, reverse the removal procedure.
However, pay attention to the following.
NOTE: When installing a new starter drive assem-
bly, oil the shaft, gear teeth and splines with en-
gine oil.
Apply
ISOFLEX GREASE TOPAS NB 52 (P/N 293 550
021)
on the starter drive bearing located in the
cylinder block and in the PTO housing.
1
R1503motr56A
1. Starter
drive bearing (cylinder block)
smr2009-022-009_a
1. Star
ter drive bearing (PTO housing)
NOTICE
Be sure not to forget the disc springs
and washer on the starter drive shaft when re-
assembling.
smr2009-022 83
