Section 02 ENGINE

Subsection 08 (LUBRICATION SYSTEM)

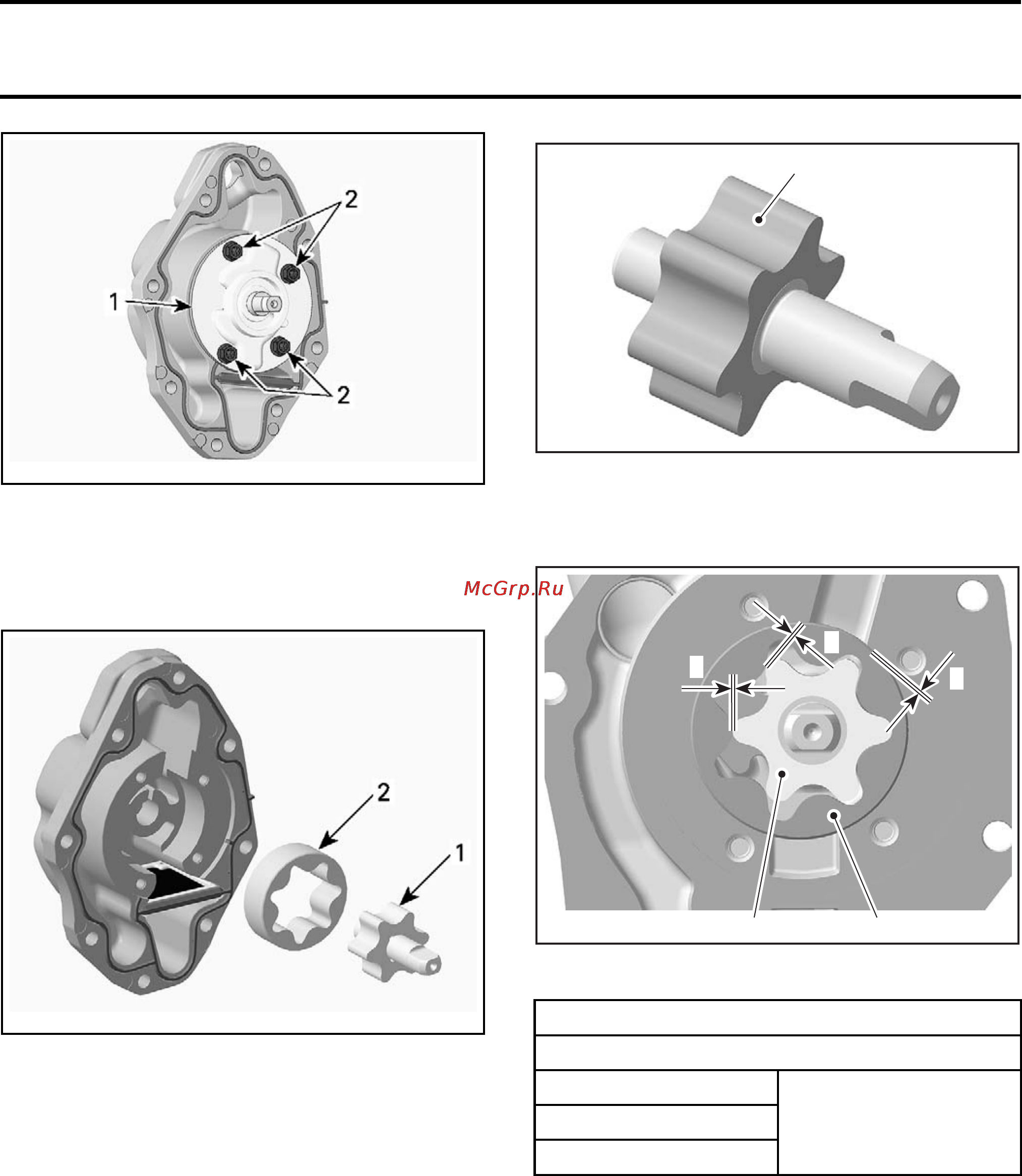

smr2008-015-006_a

TYPICAL

1. Oil pump cover

2. Oil pump screws

13. Remove oil pump shaft.

14. Remove outer rotor.

smr2006-014-023_a

TYPICA

1. Oil pump shaft

2. Outer rotor

Oil Suc

tion Pump Inspection

Inspect oil pump shaft, housing and cover for

marks or other damages.

Check inner rotor for corrosion, pin-holes or other

damages. If so, replace oil pump shaft. Ensure

to also check oil pump housing and cover and re-

place if damaged.

R1503motr137A

1. Pittings on the teeth

Using a feeler gauge, measure the clearance be-

tween inner and outer rotors.

R1503motr138A

1. Outer rotor

2. Inner rotor

OUTER AND INNER ROTOR CLEARANCE

SERVIC

ELIMIT

0.25 mm (.0098 in)

If clearance between inner and outer rotors ex-

ceeds the tolerance, replace oil pump shaft. En-

sure to also check oil pump housing and cover and

replace if damaged.

If cl

earance between outer rotor and its bore in

oil p

ump exceeds the tolerance, replace the com-

plet

e oil pump and the PTO housing.

Using a vernier depth gage, measure side wear as

shown.

smr2009-023 103
