Section 02 ENGINE

Subsection 08 (LUBRICATION SYSTEM)

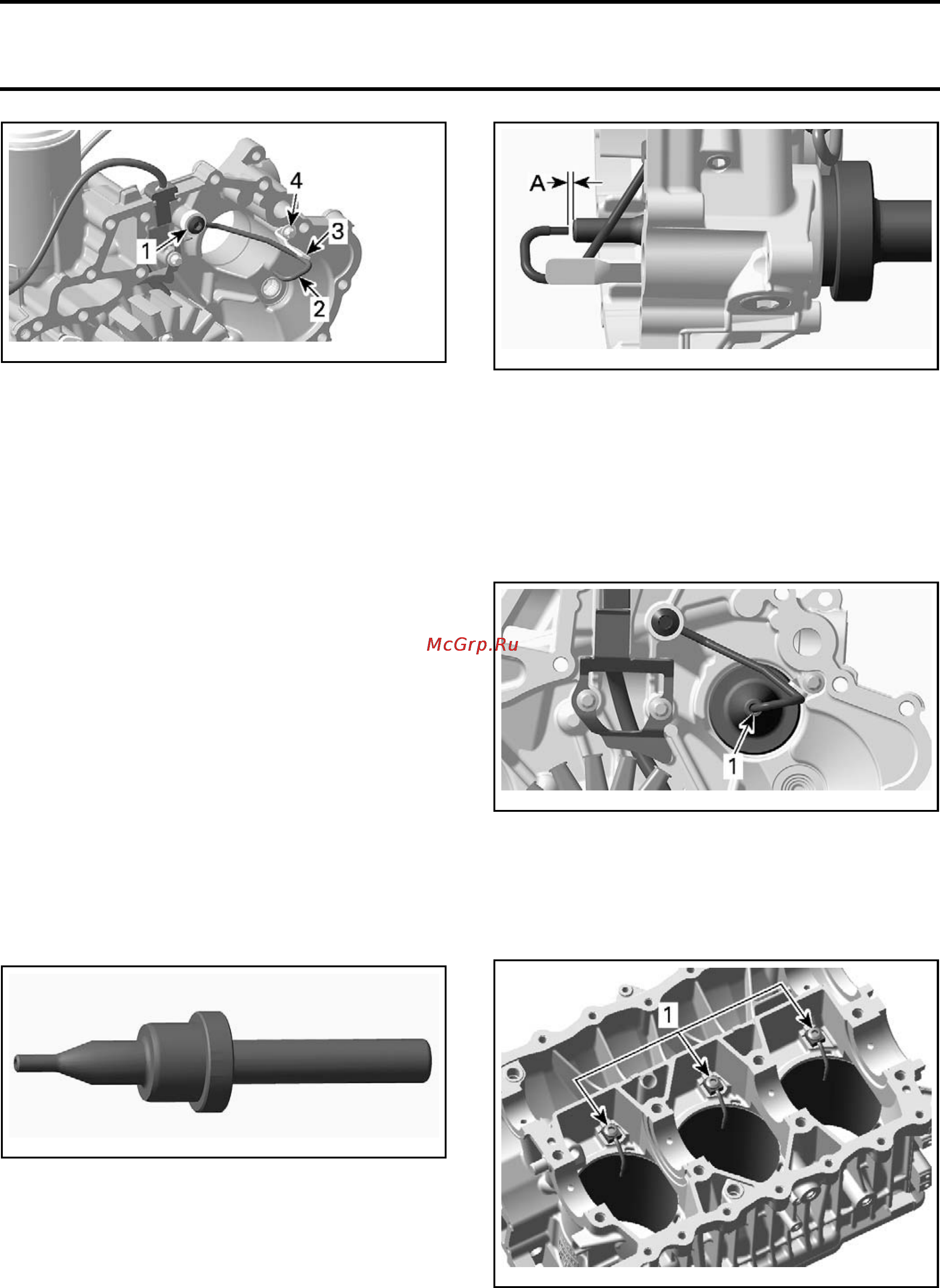

smr2008-015-007_a

1. Banjo bolt

2. Oil spray nozzle

3. Oil spray nozzle support

4. Torx screw

Oil Spray Nozzle Inspection

Check oil spray nozzle for:

–Dirt

– Bend

– Other damages.

Replace if necessary.

Oil Spray Nozzle Installation

For installation reverse the removal procedure.

However, pay attention to the following.

Apply

LOCTITE 243 (BLUE) (P/N 293 800 060) on

threads of Torx screw.

Install the oil spray nozzle support.

Tighten Torx screw to 9 N•m (80 lbf•in).

Install oil spray nozzle with Banjo bolt.

Tighten Banjo bolt to 19 N•m (168 lbf•in).

Adjust the position of the oil spray nozzle, by us-

ing the

SUPERCHARGER OIL SPRAY NOZZLE TOOL

(P/N 529 036 134)

529036134

The dist

ance between the adjustment tool and oil

spray no

zzle must be within 1 mm (.039 in).

smr2008-015-008_a

A. 1 mm (0.039 in)

NOTE: Make sure that the oil spray nozzle is fac-

ing to the center of the tool. Not following this

procedure will lead to an insufficient oiling of the

supercharger and a supercharger failure can oc-

curs. Adjust the oil spray nozzle if necessary by

slightly bending it, take care not to over bend the

oil spray nozzle.

smr2008-015-009_a

1. Center

of supercharger oil spray nozzle tool

OIL SPR

AY NOZZLES (PISTONS)

The oil spray nozzles are located on the upper half

of cylinder block.

smr2009-023-012_a

1. Oil spray nozzles

smr2009-023 105
