Section 02 ENGINE
Subsection 08 (LUBRICATION SYSTEM)
NOTE: Make sure not to loose thrust washer
when removing it from oil separator cover, oth-
erwise thrust washer would fall into the PTO
housing.

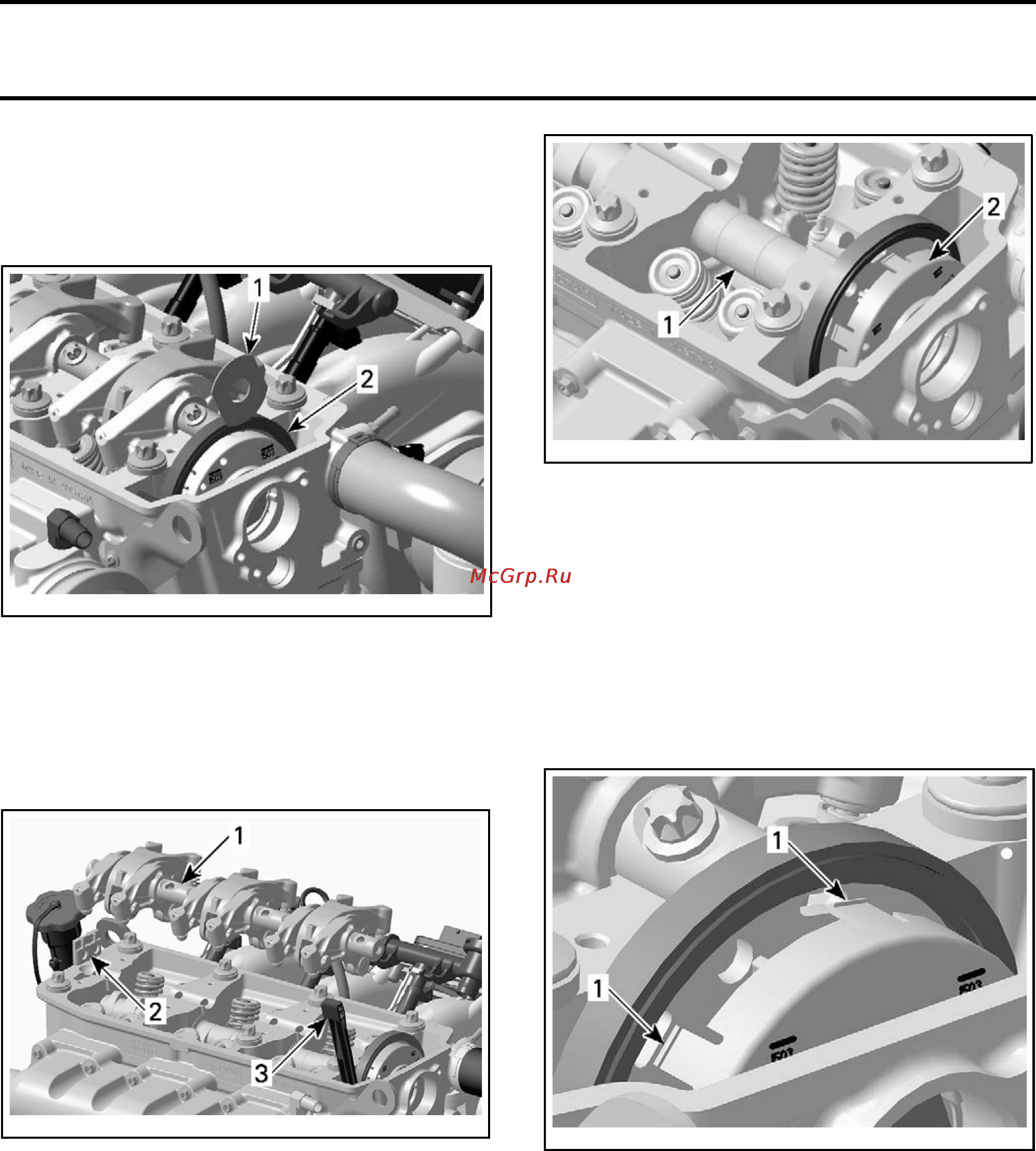

smr2009-023-016_a
1. Thrust wa
sher
2. Oil separator cover
5. Remove spark plug tube.
6. Remove rocker arm shaft together with rocker
arms, refer to
CYLINDER HEAD
subsection.
7. Remove c
hain guide and camshaft guide.
smr2006-014-066_a
1. Rocker arm
2. Camshaft guide
3. Chain guide
8. Move camshaft backwards as far as possible.
9. Remove oil separator cover from timing gear by
releasing the holding clips.
smr2006-014-067_a
1. Camshaft
2. Oil separator cover
NOTE: Be careful not to break the holding clips
from oil separator cover when its removed from
thetiminggear.
Oil Separator Cover Inspection
Inspect oil separator cover for marks or other dam-
ages. Ensure to check also the holding clips of oil
separator cover and for thrust washer. If any dam-
age is visible replace oil separator cover.
smr20
06-014-037_a
1. Holding clips
Oil Separator Cover Installation
For installation, reverse the removal procedure.
Pay attention to the following details.
Prope
rly install oil separator cover and thrust
washe
r. They need to be in a perfect even posi-
tion w
ith timing gear.
NOTE: Make sure not to lose thrust washer when
installed on oil separator cover.
For installation of rocker arm shaft with rocker
arms, follow the procedure as it is described in
CYLINDER HEAD
subsection.
Inst
all all other removed parts.
smr2009-023 107
