Section 02 ENGINE

Subsection 10 (CYLINDER HEAD)

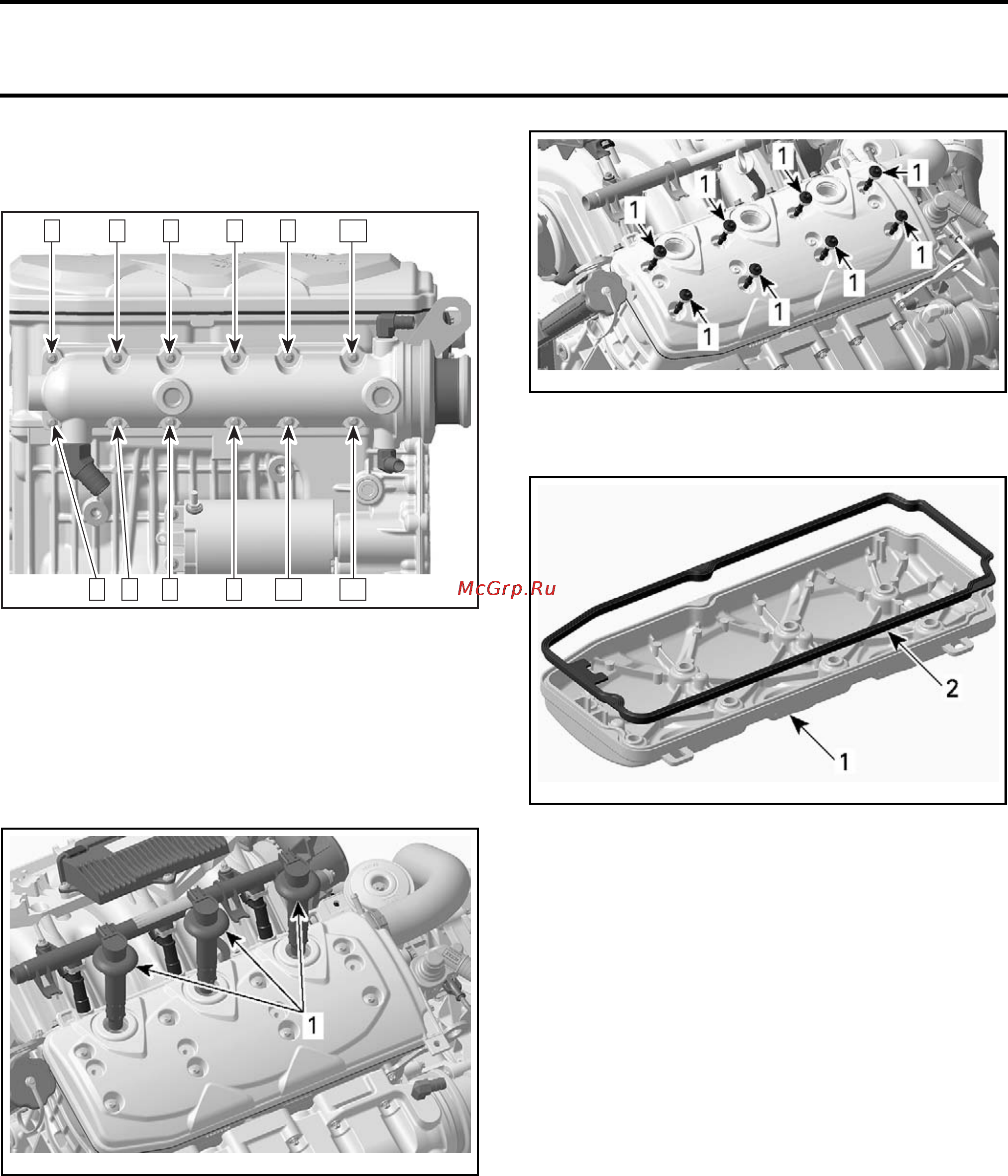

Torque screws to 9 N•m (80 lbf•in) as per follow-

ing illustrated sequence.

R1503motr152A

7 5 1 3 9 11

8 6 4 2 10 12

CYLINDER HEAD COVER

Cylinder

Head Cover Removal

1. Open seat.

2. Remove the rear ventilation cover.

3. Unplug a

nd remove ignition coils.

smr2009-025-005_a

1. Ignition coils

4. Remove screws securing the cylinder head

cover.

smr2008-017-005_a

1. Cylinder head cover screws

5. Remove the cylinder head cover and its gasket.

smr2006-016-028_a

1. Cylinde

r head cover

2. Gasket

Cylinder Head Cover Inspection

Check if the gasket on the cylinder head cover

and the rubber bushing on the cylinder head cover

screws are brittle, cracked or hard. If so, replace

the gasket or the cylinder head cover screw ac-

cordingly.

Cylinder Head Cover Installation

For installation, reverse the removal procedure.

However, pay attention to the following.

Proper

ly seat the gasket in the cover groove.

Install the cylinder head cover screws according

to following sequence.
