Section 02 ENGINE

Subsection 10 (CYLINDER HEAD)

NOTE: Valve cotters must be properly engaged in

valve stem grooves.

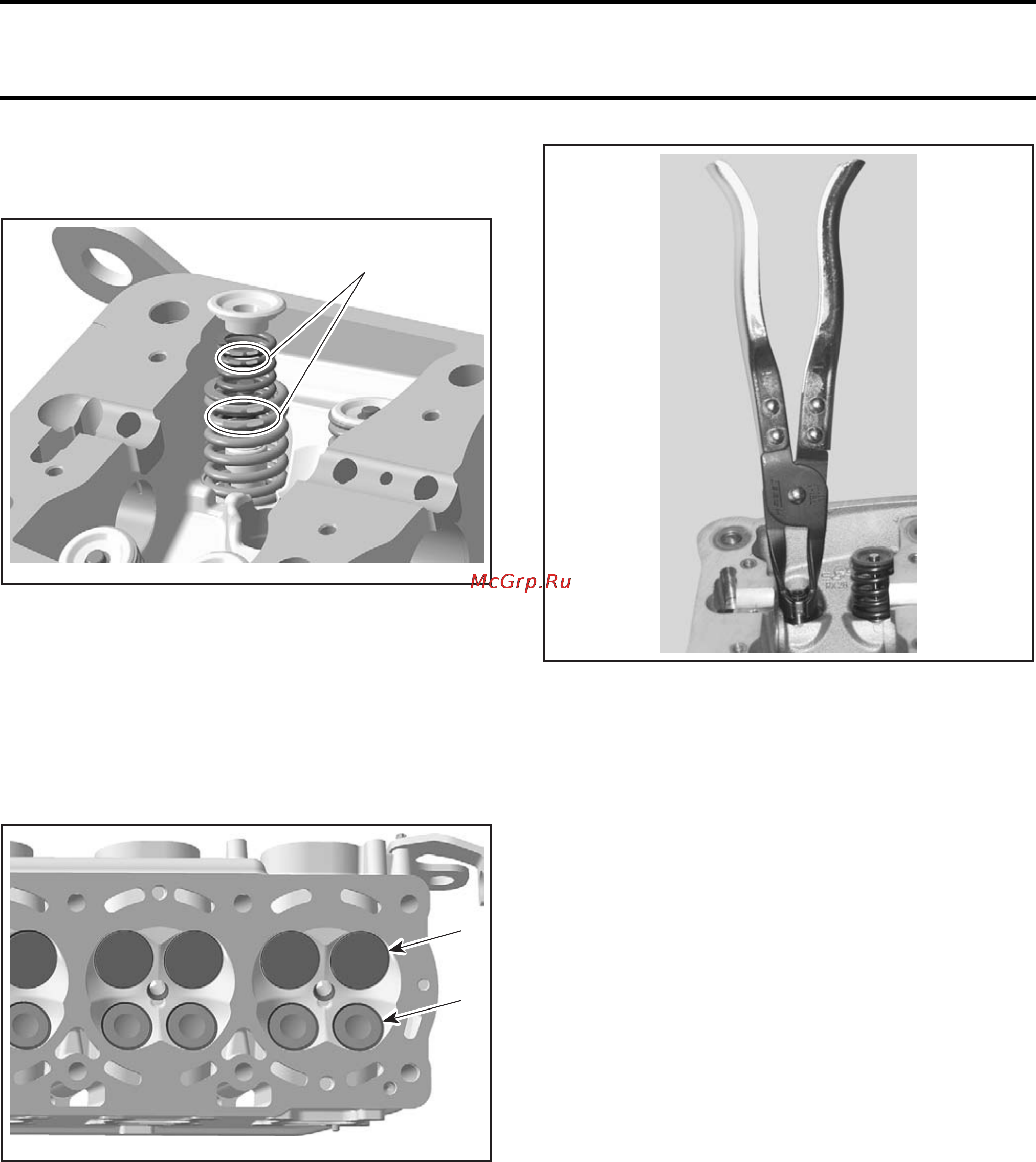

R1503motr105B

1. Position

of the valve spring

VALVES

Valve Removal

Remove va

lve spring.

Push valve stem then pull valves out of valve

guides.

R1503motr106A

1. Intake valve 38 mm

2. Exhaust valve 31 mm

Remove valve stem seal with a valve stem seal

pliers such as the

SNAP-ON VALVE STEM SEAL PLI-

ERS (P/N YA8230)

R610motr125A

Valve Inspection

ValveStemSeal

Inspection of valve stem seals is not needed

because NEW seals should always be installed

whenever cylinder head is removed.

Valve

Inspect valve surface, check for abnormal stem

wear and bending. If so, replace by a new one.

Valve Stem and Valve Guide Clearance

Measure valve stem and valve guide in three

places, using a micrometer and a small bore

gauge.

NOTE: Clean valve guide to remove carbon de-

posits before measuring.

Change valve if valve stem is out of specification

or has other damages such as wear or friction sur-

face.

smr2009-025 143
