Section 02 ENGINE

Subsection 11 (CYLINDER BLOCK)

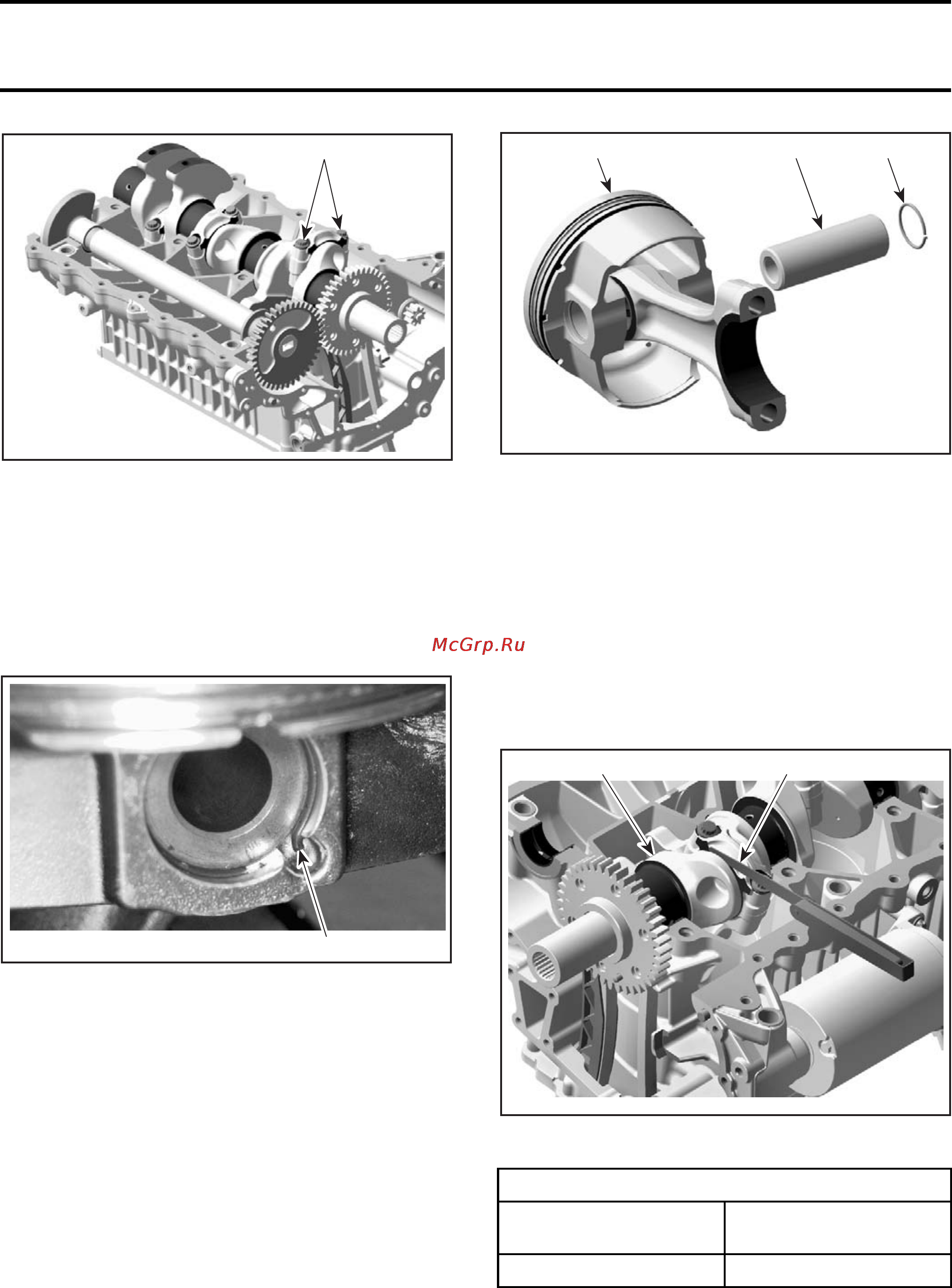

R1503motr08A

1. Connecting rod screws

NOTE: Before removing the connecting rod caps,

mark them to remember the right position when

reassembling.

3. Pull piston with connecting rod out of the cylin-

ders.

4. Remove one piston circlip no. 8 and discard it.

R610motr134A

1. Piston circlip

NOTE: The removal of both piston circlips is not

necessary to remove piston pin.

5. Push piston pin no. 9 out of piston.

R1503motr27A

1. Piston

2. Piston pin

3. Circlip

6. Detach piston no. 10 from connecting rod no. 5.

Connecting Rod Inspection

Connecting Rod Big End Axial Play

Using a feeler gauge, measure distance between

butting face of connecting rod and crankshaft

counterweight. If the distance exceeds specified

tolerance, replace the worn part.

R1503motr12A

1. Cran

kshaft

2. Feeler gauge

CONNECTING ROD BIG END AXIAL PLAY

NEW

0.150 mm - 0.302 mm

(.006 in - .012 in)

SERVICE LIMIT

0.500 mm (.02 in)

Connecting Rod Small End Radial Play

Measure connecting rod small end.

154 smr2009-026
