INTRODUCTION
TIGHTENING TORQUE
Tighten fasteners to torque mentioned in ex-
ploded views and/or text, When they are not
specified, refer to following table.
WARNING
Torque wrench tightening specifications
must be strictly adhered to.
Locking devices (e.g.: locking tabs, elastic
stop nuts, self-locking fasteners, cotter pins,
etc.) must be replaced with new ones.
In order to avoid a poor assembling, tighten
screws, bolts or nuts in accordance with the
following procedure:
1. Manually screw all screws, bolts and/or nuts.
2. Apply the half of the recommended torque
value.
NOTICE
Be sure to use proper tightening
torque for the proper strength grade.
NOTE: When possible, always apply torque on
the nut.
3. Torque at the recommended torque value.
NOTE: Always torque screws, bolts and/or nuts in
a crisscross sequence.

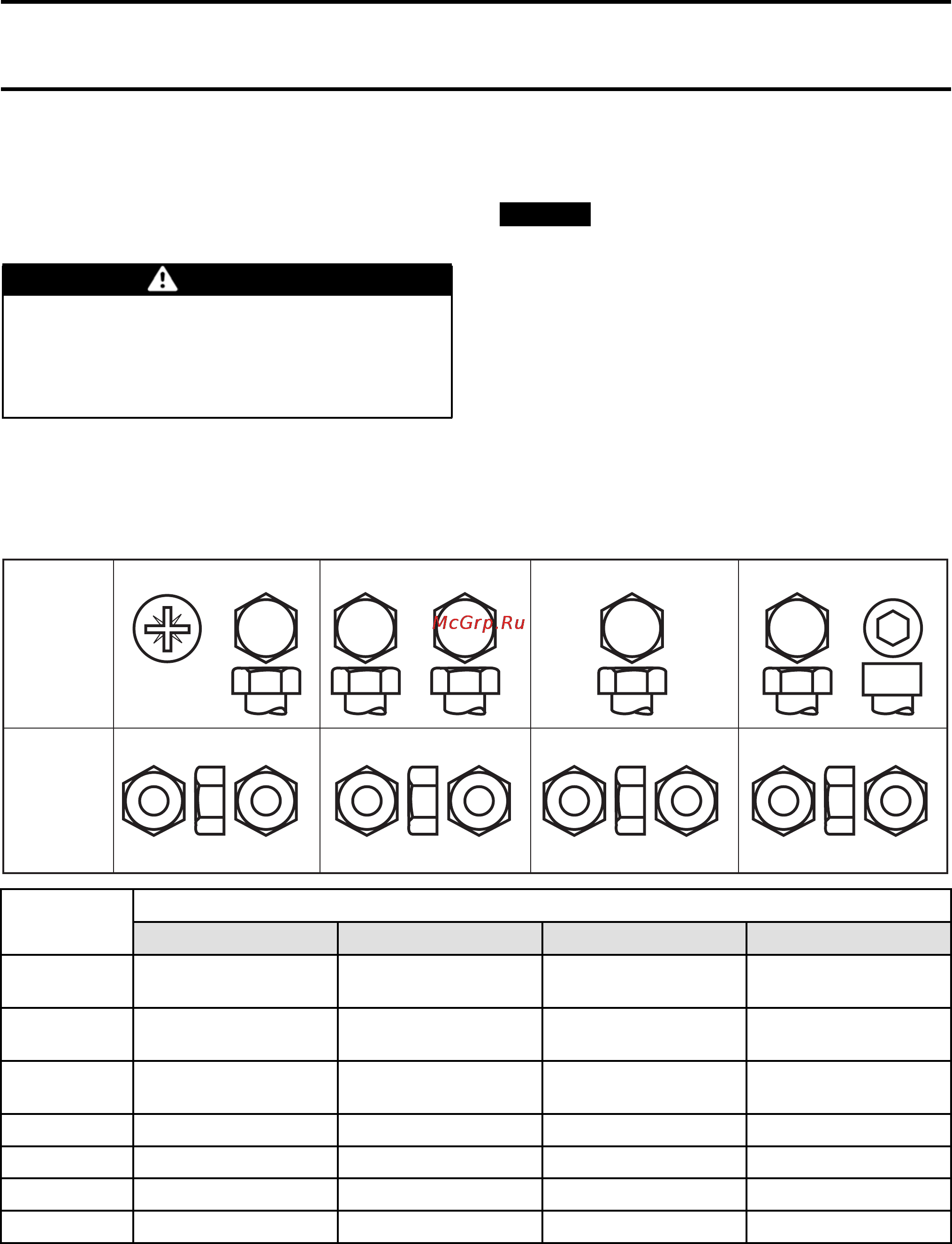

A00A8BS
Property
class and
head
markings
Property
class and
nut
markings
5
5
8
8
10
10
12
12
4.8
4.8
4.8
8.8
8.8
8.8
9.8
9.8
9.8
10.9
10.9
10.9
12.9
12.9
12.9
12.9
FASTENER GRADE/TORQUE
FASTENER
SIZE
5.8 Grade 8.8 Grade 10.9 Grade 12.9 Grade
M4
1.5 – 2 N•m
(13 – 18 lbf•in)
2.5 – 3 N•m
(22 – 27 lbf•in)
3.5 – 4 N•m
(31 – 35 lbf•ft)
4–5N•m
(35 – 44 lbf•ft)
M5
3–3.5N•m
(27 – 31 lbf•ft)
4.5 – 5.5 N•m
(40 – 47 lbf•ft)
7–8.5N•m
(62 – 75 lbf•ft)
8–10N•m
(71 – 89 lbf•ft)
M6
6.5 – 8.5 N•m
(58 – 75 lbf•ft)
8–12N•m
(71 – 106 lbf•ft)
10.5 – 15 N•m
(93 – 133 lbf•in)
16 N•m (142 lbf•in)
M8 15 N•m (133 lbf•in) 25 N•m (18 lbf•ft) 32 N•m (24 lbf•ft) 40 N•m (30 lbf•ft)
M10 29 N•m (21 lbf•ft) 48 N•m (35 lbf•ft) 61N•m (45 lbf•ft) 73 N•m (54 lbf•ft)
M12 52 N•m (38 lbf•ft) 85N•m (63 lbf•ft) 105 N•m (77 lbf•ft) 128 N•m (94 lbf•ft)
M14 85 N•m (63 lbf•ft) 135 N•m (100 lbf•ft) 170 N•m (125 lbf•ft) 200 N•m (148 lbf•ft)
smr2009-011 XV
