INTRODUCTION
2. Apply LOCTITE PRIMER N (P/N 293 800 041) on
threads and allow to dry.
3. Put 2 or 3 drops of proper strength Loctite
threadlocker on female threads and in hole.
NOTE: To avoid a hydro lock situation, do not ap-
ply too much Loctite.
4. Apply several drops of proper strength Loctite
on stud threads.
5. Install stud.
6. Install cover, etc.
7. Apply drops of proper strength Loctite on un-
covered threads.
8. Tighten nuts as required.

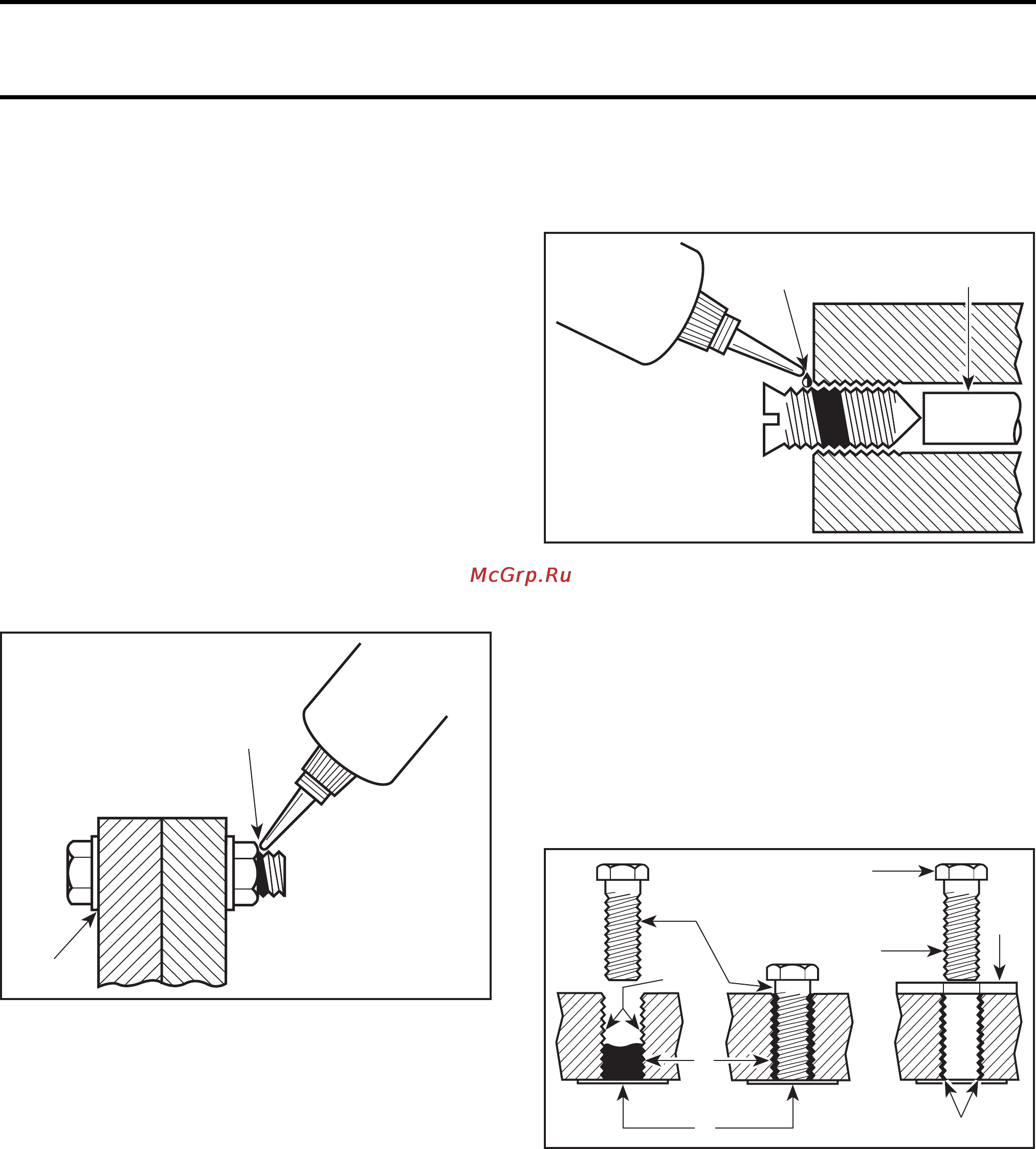

Threadlocker Application for
Pre-Assembled Parts
A00A3OA
1
2
1. Apply h
ere
2. Do not apply
1. Clean bolts and nuts with solvent.
2. Assemble components.
3. Tight
en nuts.
4. Apply drops of proper strength Loctite on
bolt/nut contact surfaces.
5. Avoid touching metal with tip of flask.
NOTE
: For preventive maintenance on exist-
ing e
quipment, retighten nuts and apply proper
stre
ngth Loctite on bolt/nut contact surfaces.
Threadlocker Application for Adjusting
Screw
A00A3PA
1
2
1. Apply here
2. Plunger
1. Adjust sc
rew to proper setting.
2. Apply drops of proper strength Loctite thread-
locker on screw/body contact surfaces.
3. Avoid touching metal with tip of flask.
NOTE: If i
t is difficult to readjust, heat screw with
a solder
ing iron (232°C (450°F)).
Application for Stripped Thread Repair
A00A3QA
5
8
6
7
1
2
3
4
1. Release agent
2. Stripped threads
3. Form-A-Thread
4. Tapes
5. Cleaned bolt
6. Plate
7. New threads
8. Threadlocker
Standard Thread Repair
Follow instructions on Loctite FORM-A-THREAD
81668 package.
If a plate is used to align bolt:
1. Apply release agent on mating surfaces.
2. Put waxed paper or similar film on the surfaces.
smr2009-011 XVII
