Section 03 ELECTRONIC MANAGEMENT SYSTEMS

Subsection 03 (COMMUNICATION TOOLS AND B.U.D.S. SOFTWARE)

ssi2009-002-004_a

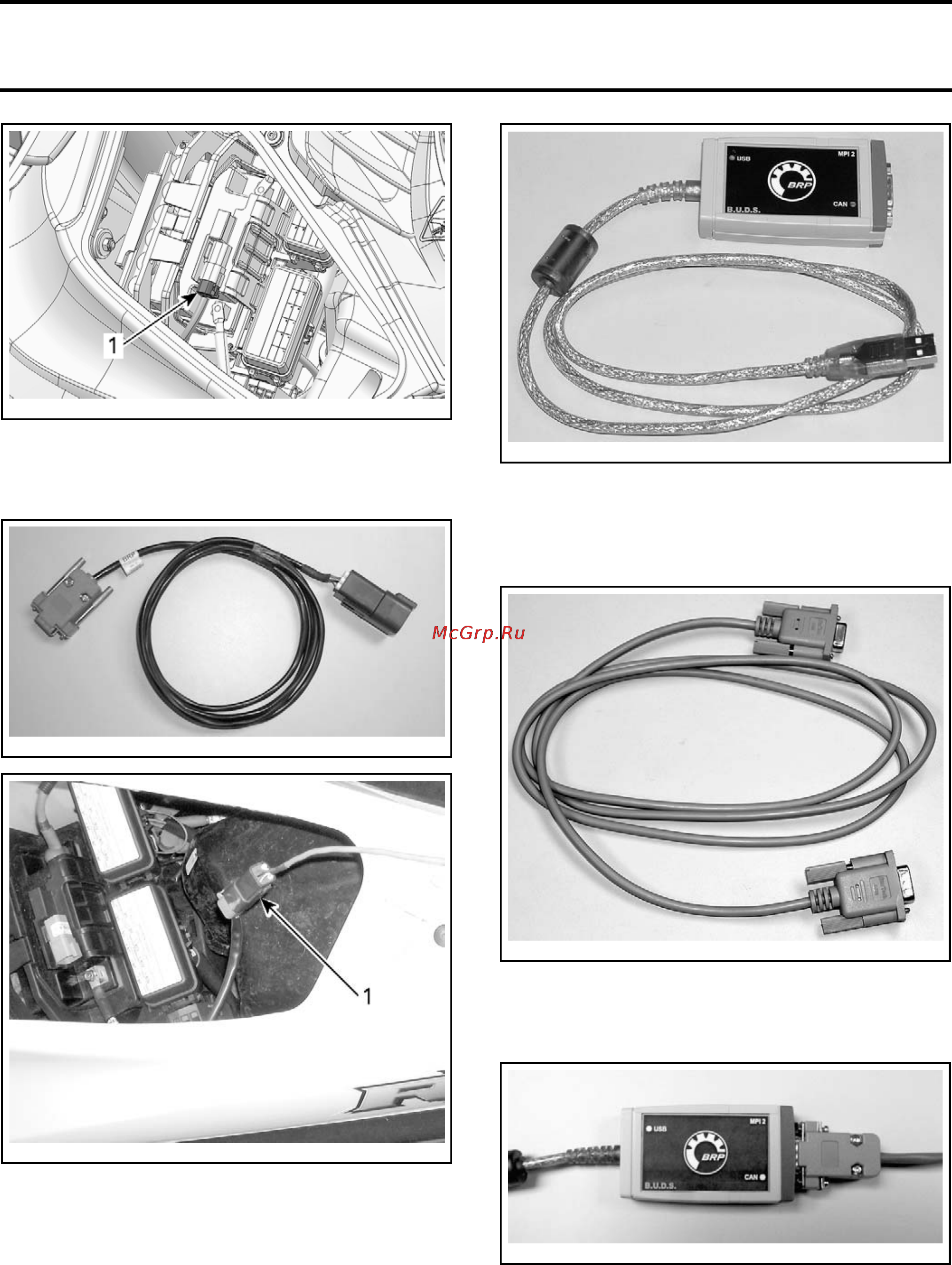

1. Diagnostic connector

Connect the MPI-2 DIAGNOSTIC CABLE (P/N 710

000 851)

to vehicle connector.

710000851

smr2009-028-004_a

1. Diagnostic cable connected to vehicle

Conn

ect the other end of diagnostic cable to the

MPI-

2 INTERFACE CARD (P/N 529 036 018)

529036018

NOTE: An optional MALE-FEMALE EXTENSION SE-

RIAL CABLE (P/N DB9)

available at electronic retail

outlets can be used between diagnostic cable and

MPI-2 interface. Do not exceed 7.6 m (25 ft).

529035697

OPTIONAL MALE-FEMALE EXTENSION SERIAL CABLE

Connect the MPI-2 INTERFACE CARD (P/N 529 036

018)

to the USB port of a PC (personal computer).

vdd2006-001-151
