Section 04 FUEL SYSTEM

Subsection 01 (INTELLIGENT THROTTLE CONTROL (iTC))

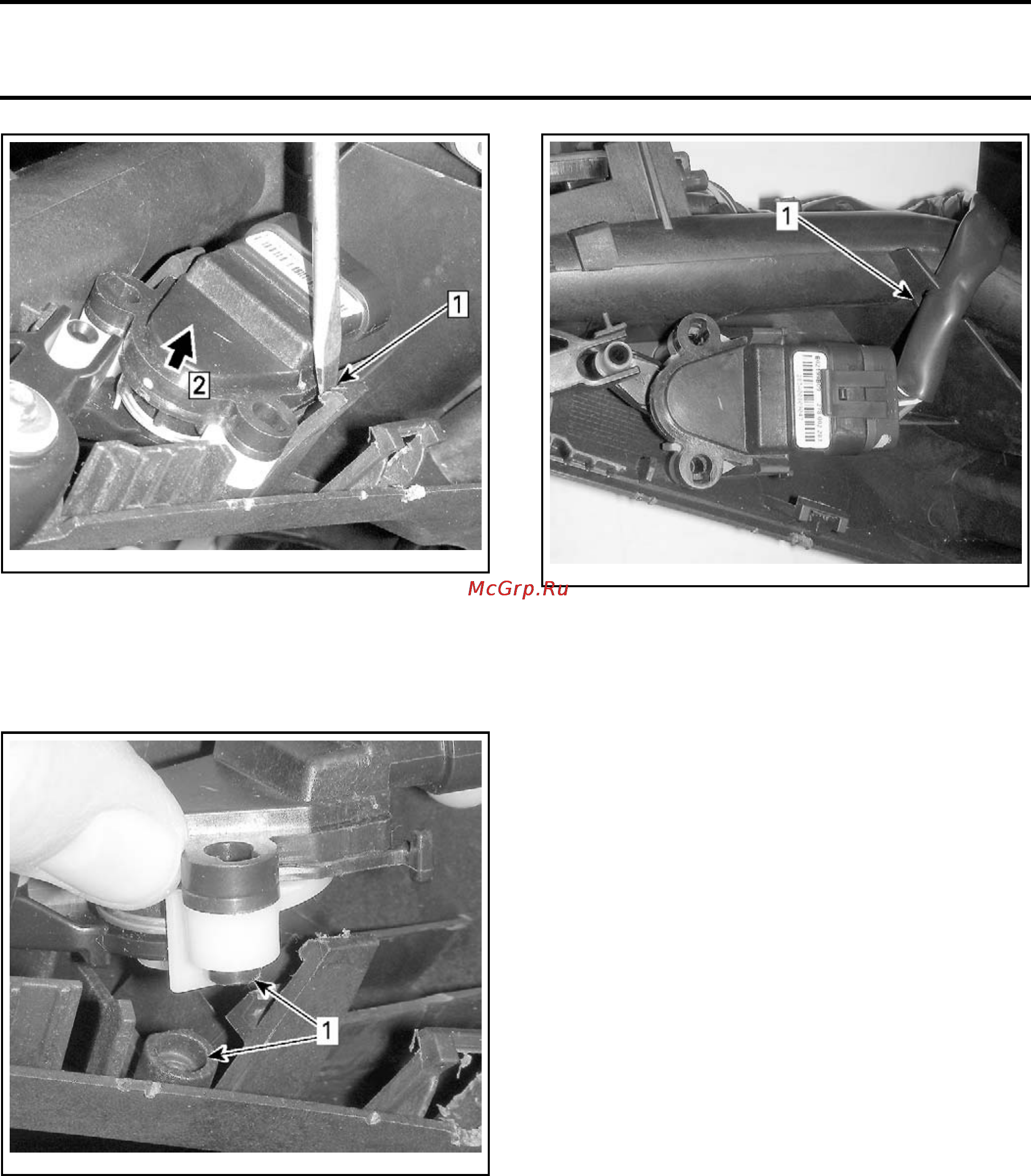

smr2009-030-100_a

Step 1: Pry out

Step 2: Pull out sensor

Revert removal procedure for installation. Pay at-

tention to the following.

Align sensor pins into their holes.

smr20

09-030-101_a

1. Align pin into hole

Snap sensor in position. Ensure it is properly

locked in place.

Route harness into the notched bracket.

smr2009-030-102_a

1. Route harn

ess here

When installation is completed, ensure throttle

lever works properly.

CRUISE SWITCH

Cruise Switch Test

If pressing the cruise switch does not engage the

CRUISE or SLOW SPEED modes, test the cruise

switch as per following procedure.

1. Connect t

he watercraft to the latest B.U.D.S.

software

. Refer to

COMMUNICATION TOOLS

AND B.U.

D.S. SOFTWARE

subsection for de-

tails.

2. In B.U.D.S., select the Monitoring tab then the

Cluster tab.

3. Press the vehicle cruise button and look for the

Cruise indicator light to come on in the Switch

inputs area.

216 smr2009-050
