Section 04 FUEL SYSTEM
Subsection 02 (ELECTRONIC FUEL INJECTION (EFI))
– Relay and wiring. Refer to
POWER DISTRIBU-
TION
– ECM power supply wires and ground wires.
See below.

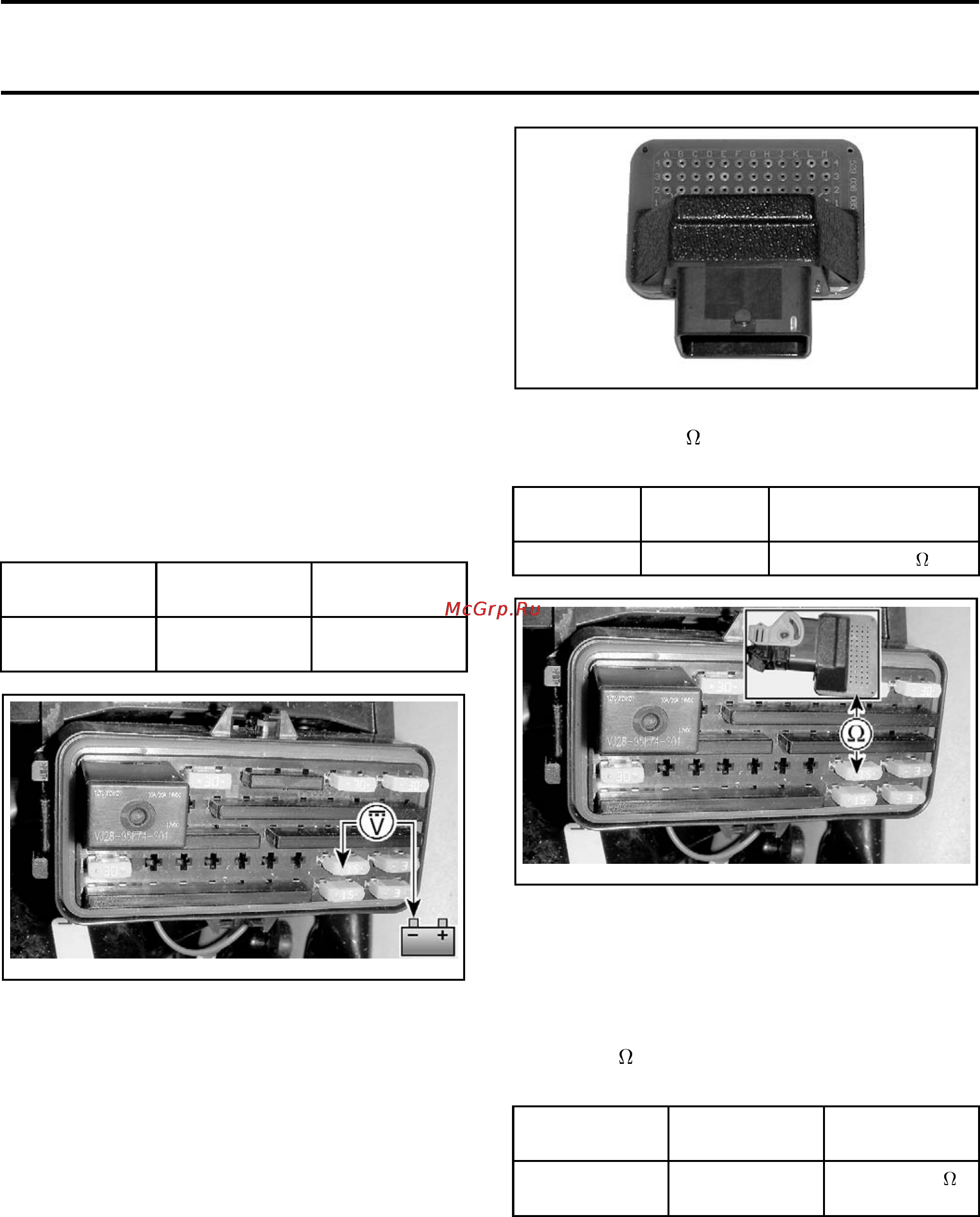

ECM Power Supply Test
Remove cover of fuse box #2 (FB). Refer to
POWER DISTRIBUTION
subsection.
Install the D.E.S.S. key on its post.
BrieflypresstheSTARTbuttontowakeupthe
ECM.
Use the
FLUKE 115 MULTIMETER (P/N 529 035 868)
and select Vdc.
Probe the fuse F20 as shown.
NOTE: This will validate the fuse at the same
time.
FUSE BOX #2
BATTERY
POST
VOLTAGE
Fuse F20
terminal at D4
Ground
Battery vol
tage
smr2009-030-009_a
If voltage is not as per specification, check the
wiring and connections between relay output and
F20 output. Refer to
WIRING DIAGRAM
.
If voltage is as per specification, check the conti-
nuity of wiring and connections between FB2 and
ECM as follows.
1. Disconnect B connector from ECM.
2. Install
ECM ADAPTER TOOL (P/N 529 036 166) on
ECM connector.
smr2009-030-010
3. Use the FLUKE 115 MULTIMETER (P/N 529 035
868)
and select .
4. Probe terminals as follows.
FUSE BOX
#2
ECM
ADAPTER
RESISTANCE
Terminal D4 Pin B-M4
Closeto0
smr2009-030-009_b
ECM Ground Test
Disconnect B connector from ECM.
Install
ECM ADAPTER TOOL (P/N 529 036 166) on
ECM connector.
Use the
FLUKE 115 MULTIMETER (P/N 529 035 868)
and select .
Probe adapter terminals as follows.
ECM
ADAPTER
BATTERY
POST
RESISTANCE
Pins B-L1,
B-M2 and B-M3
Ground
Close t
o0
(continuity)
smr2009-030 225
