Section 04 FUEL SYSTEM

Subsection 02 (ELECTRONIC FUEL INJECTION (EFI))

Fuel Rail Removal

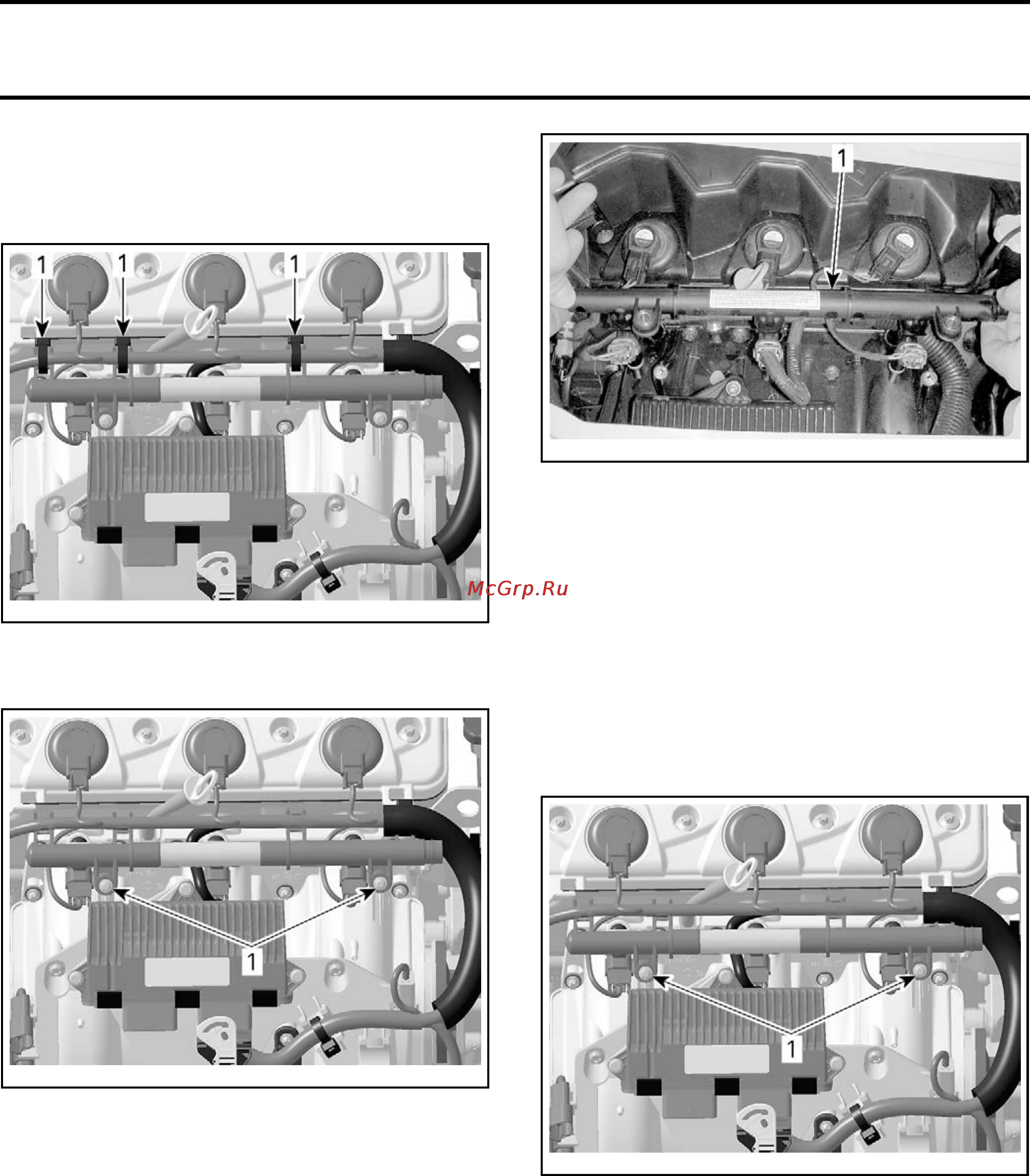

Cut locking ties retaining engine harness to fuel

rail.

smr2009-030-011_b

1. Cut locking ties

Remove ret

aining screws of fuel rail.

smr2009-030-026_a

1. Retaining screws

Gently pull fuel rail side to side (wiggle).

smr2009-030-027_a

1. Fuel rail

Unplug all injector connectors.

Pull fuel rail out with fuel injectors.

Fuel Rail Installation

Reverse the removal procedure. However, pay at-

tention to the following.

Apply

LOCTITE 243 (BLUE) (P/N 293 800 060) on fuel

rail retaining screws.

Torque fuel rail retaining screws to 9 N•m

(80 lbf•in).

smr2009-030-026_a

1. Retaining screws

Properly install new locking ties to secure engine

harness to fuel rail.

smr2009-030 231
