Section 04 FUEL SYSTEM
Subsection 02 (ELECTRONIC FUEL INJECTION (EFI))
NOTICE
Only use an appropriate throttle
body cleaner that will not damage O-rings and
EFI sensors.
WARNING
Use the product in well ventilated area. Refer
to product manufacturer's warnings. Wipe
off any product leakage in bilge.
To avoid getting dirt into engine, spray cleaner on
a clean rag (outside the bilge) then rub rag against
throttle plate and bore. A toothbrush works well
too.
WARNING
First ensure ECM is off. Otherwise, if ECM
would turn off, it would quickly close the
throttle plate and this could cause serious
finger injuries if you were working in this
area.
Manually op
en throttle and hold fully open to
reach all s
urfaces.
WARNING
Ensure nobody presses the START button.
The ECM would turn on and throttle actuator
would cycle. This could cause serious finger
injuries as throttle plate quickly moves.
To remove residual dirt, spray cleaner on throttle
plate and on bore.
Reinstall removed parts.
Throttle Body Inspection
Always check for corroded terminals or damaged
wiring when diagnosing throttle body.
Dynamic Tests
To gain access to throttle body, remove the re-
quired parts as described in
THROTTLE BODY RE-
MOVAL.
Look at throttle plate when the engine is stopped.
Throttle plate should be in the rest position
(slightly opened).
Install the D.E.S.S. key on its post.
Ask someone to briefly press the START button
to wake up the ECM while watching the throttle
plate. Do not start engine.
WARNING
Keep your fingers out of the throttle plate
area while the ECM turns on. The throttle
actuator will cycle. This could cause seri-
ous finger injuries as throttle plate quickly
moves.
Throttle plate should quickly move from the rest
position to a partially open position (approximately
14°). It will then move back to the rest position.
Ask someone to gradually and evenly depress
andthenreleasethesamewaythethrottlelever.
Throttle plate should open then close according
to throttle lever position.
If any test failed, proceed with the
STATIC TESTS.
Static Tests
WARNING
First ensure ECM is off. Otherwise, if ECM
would turn off, it would quickly close the
throttle plate and this could cause serious
finger injuries if you wsere working in this
area.
WARNING
During the test, ensure nobody presses the
START button. The ECM would turn on and
throttle actuator would cycle. This could
cause serious finger injuries as throttle plate
quickly moves.
Check that the throttle plate opens smoothly
when manually pushing on throttle plate in throt-
tle body.

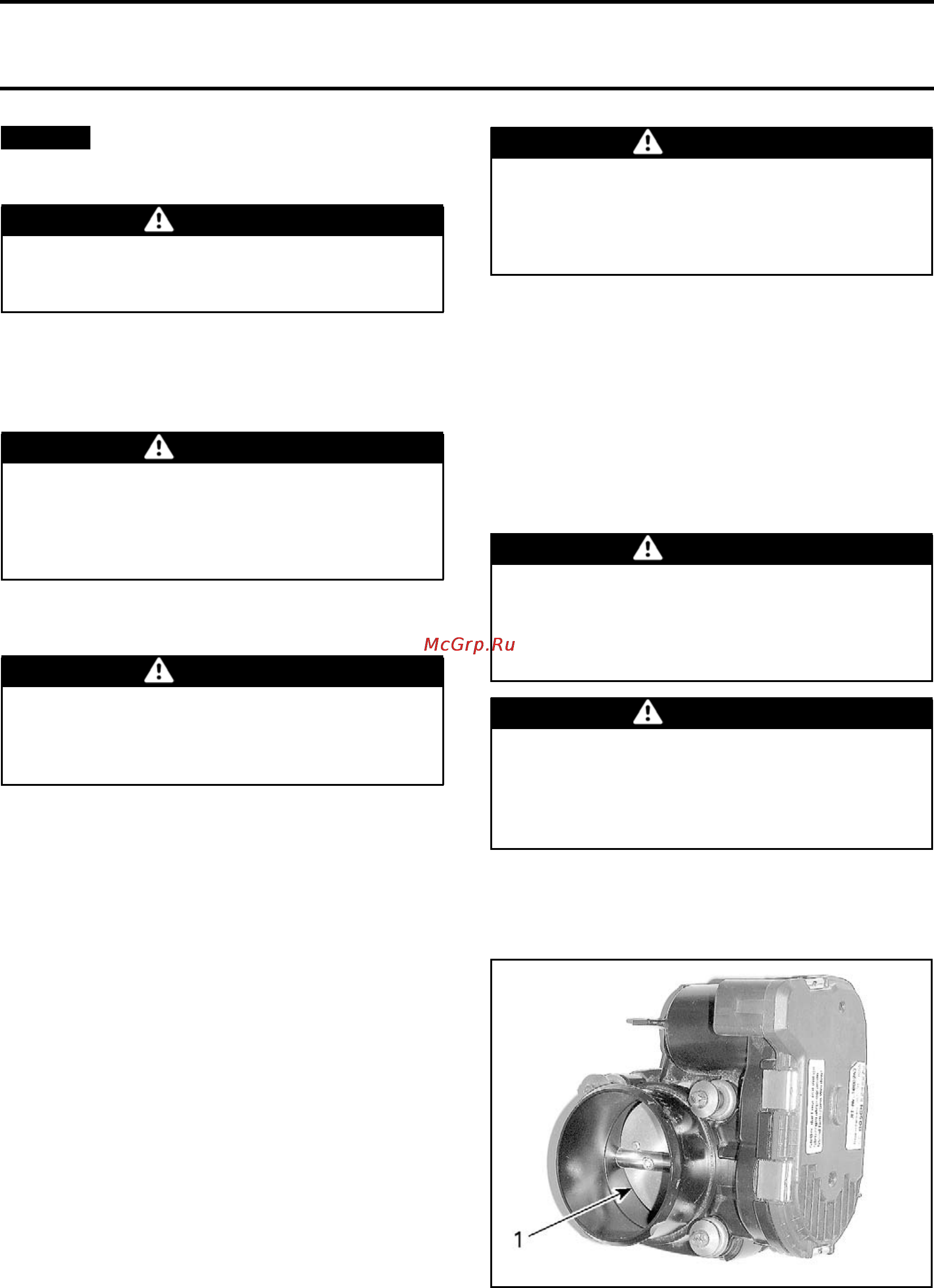

smr2009-030-016_b
1. Push here to open
238
smr2009-030
