Section 05 ELECTRICAL SYSTEM

Subsection 02 (POWER DISTRIBUTION)

If B.U.D.S. is being used for communicating with

the electronic modules, or if the information cen-

ter must be ON for testing, selecting modes of

operation, changing key settings, or for other

functions accessed through the information cen-

ter, the D.E.S.S. key must be installed.

NOTE: To prevent the electrical power from

shutting down after approximately 3 minutes,

press the START button before the three minute

power-up period ends.

TROUBLESHOOTING

DIAGNOSTIC TIPS

NOTE: It is a good practice to check for fault

codes using B.U.D.S. software as a first trou-

bleshooting step. Refer to

COMMUNICATION

TOOLS AND B.U.D.S. SOFTWARE

subsection.

IMPORTANT: When troubleshooting an electrical

system fault, check battery condition, cables and

connections first.

Circuit Testing

Check the related-circuit fuse condition with a

fuse tester or ohmmeter. A visual inspection on

itsowncouldleadtoanincorrectconclusion.

Electrical Connection Inspection

When replacing an electric or electronic compo-

nent, always check electrical connections. Make

sure they are tight, make good contact, and are

corrosion-free. Dirty, loose or corroded contacts

are poor conductors and are often the source of a

system or component malfunction.

Pay particular attention to ensure that pins are not

bent or pushed out of their connectors.

Ensure all wire terminals are properly crimped on

wires, and connector housings are properly fas-

tened.

Check for signs of moisture, corrosion or dullness.

Clean pins properly and coat them with

DIELEC-

TRIC GREASE (P/N 293 550 004)

or other appropri-

ate lubricant (except if otherwise specified) when

reassembling them.

Pay attention to ground wires.

Fuse Inspection

If an electrical system fault occurs, check the

fuses. If a fuse is burnt, replace it with a fuse of

the same rating.

Keep in mind that an electrical component may

require more than one fuse, one low amperage

rated fuse for its control circuit, and another higher

rated fuse for the main component power. These

two fuses may not be in the same fuse box.

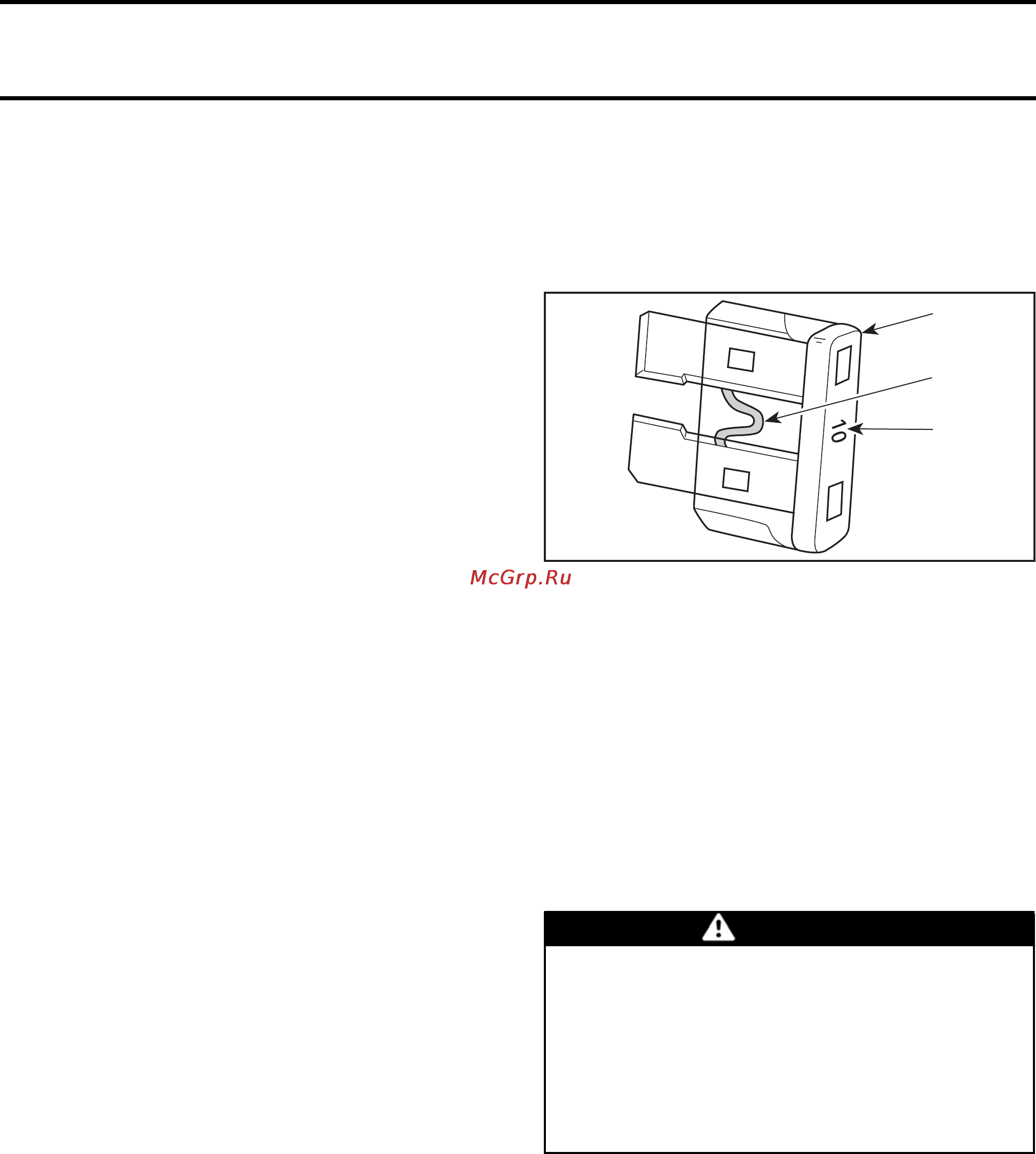

A15E0KB

1. Fuse

2. Check if m

elted

3. Ampere rating

A visual inspection of a fuse may not be conclu-

sive.

Two metal contacts are visible at the top of the

fuses. They can be used for testing the fuse us-

ing a fuse tester or a multimeter. They can also be

used for testing the circuit the fuse protects with-

out removing the fuse.

However

, when testing a fuse using an ohmme-

ter, the

fuse should always be removed from the

fuse box

WARNING

When replacing a fuse, do not use a higher

rated fuse than recommended. Use of a

higher rated fuse can lead to severe compo-

nent or circuit damage, an overheat condi-

tion, and possibly and electrical fire. If a fuse

has burnt out, the source of the malfunction

should be identified and corrected before

applying power to the vehicle.

TESTI

NG SEQUENCE

Electrical Power Does Not Come ON

Elect

rical system power up is normally identified

by the

information center powering up and cycling

throu

gh its self-test function.

If the information center does not come on, check

the following:

– Ensur

e battery is properly connected.

– Check the BATT. fuse in FB2.

– Check for activation of the power relay in FB2.

286 smr2009-049
