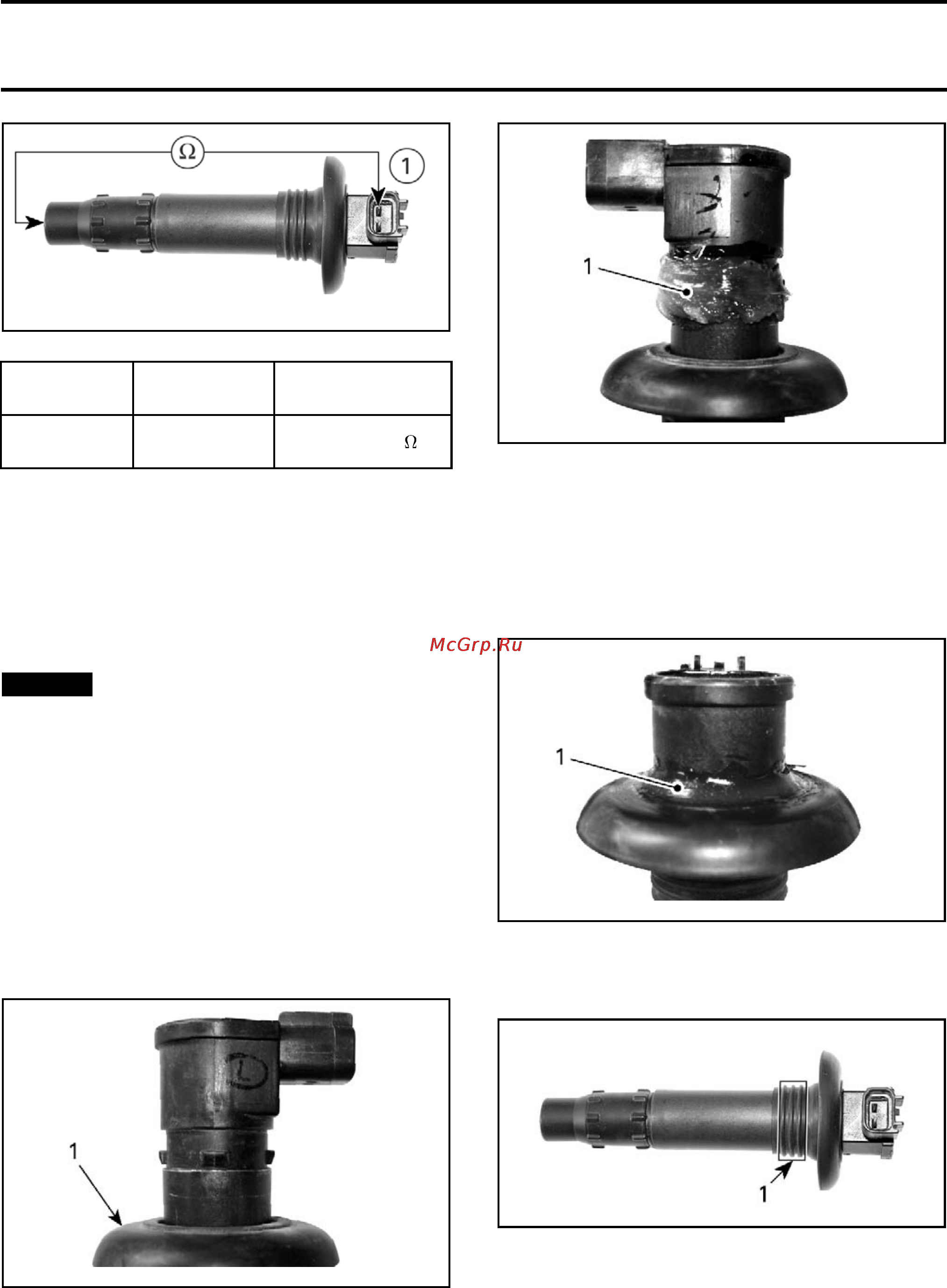

Section 05 ELECTRICAL SYSTEM

Subsection 03 (IGNITION SYSTEM)

smr05-015-002_b

SECONDARY WINDING

CIRCUIT TERMINAL

RESISTANCE @

20°C (68°F)

Secondary

winding

1 and spark

plug terminal

9.5 - 13.5 k

If any test failed, replace ignition coil.

Ignition Co

il Removal

Open seat.

Remove rear ventilation box. Refer to

AIR INTAKE

SYSTEM

Disconnect

ignition coil connector.

NOTICE

Do not remove the ignition coil be-

fore disconnecting the input connector or the

wires may be damaged. Do not pry up ignition

coil with a screwdriver to avoid damage.

NOTE: Twist ignition coil in both directions as you

pull it up to ease removal.

Remove ignition coil from spark plug.

Ignition Coil Installation

Prior to inserting the ignition coil on its spark plug,

apply sealant as described in following procedure:

1. Pull rubbe

r seal down.

sbs2009-011-002_a

1. Rubber seal pulled down

2. Apply DOW CORNING 111 (P/N 413 707 000) to

rubber seal seat as shown.

sbs2009-011-001_a

1. Apply product here

3. Pull rubber seal back on its seat making sure the

tabs on the ignition coil and the slots in the seal

properly match together.

4. Leave a ring of grease on top of the seal as

shown to act as a water barrier. Wipe off the

excess.

sbs2009-011-003_a

1. Correctly shaped excess of product

5. Apply

DOW CORNING 111 (P/N 413 707 000) on

rubbe

r seal contact area.

smr05-015-002_d

1. Apply product here

6. Install coil in cylinder head hole.

7. Push the ignition coil down to securely install it

on the spark plug tip.

8. Ensure the seal seats properly with top surface

of engine valve cover.

smr2009-032 293
