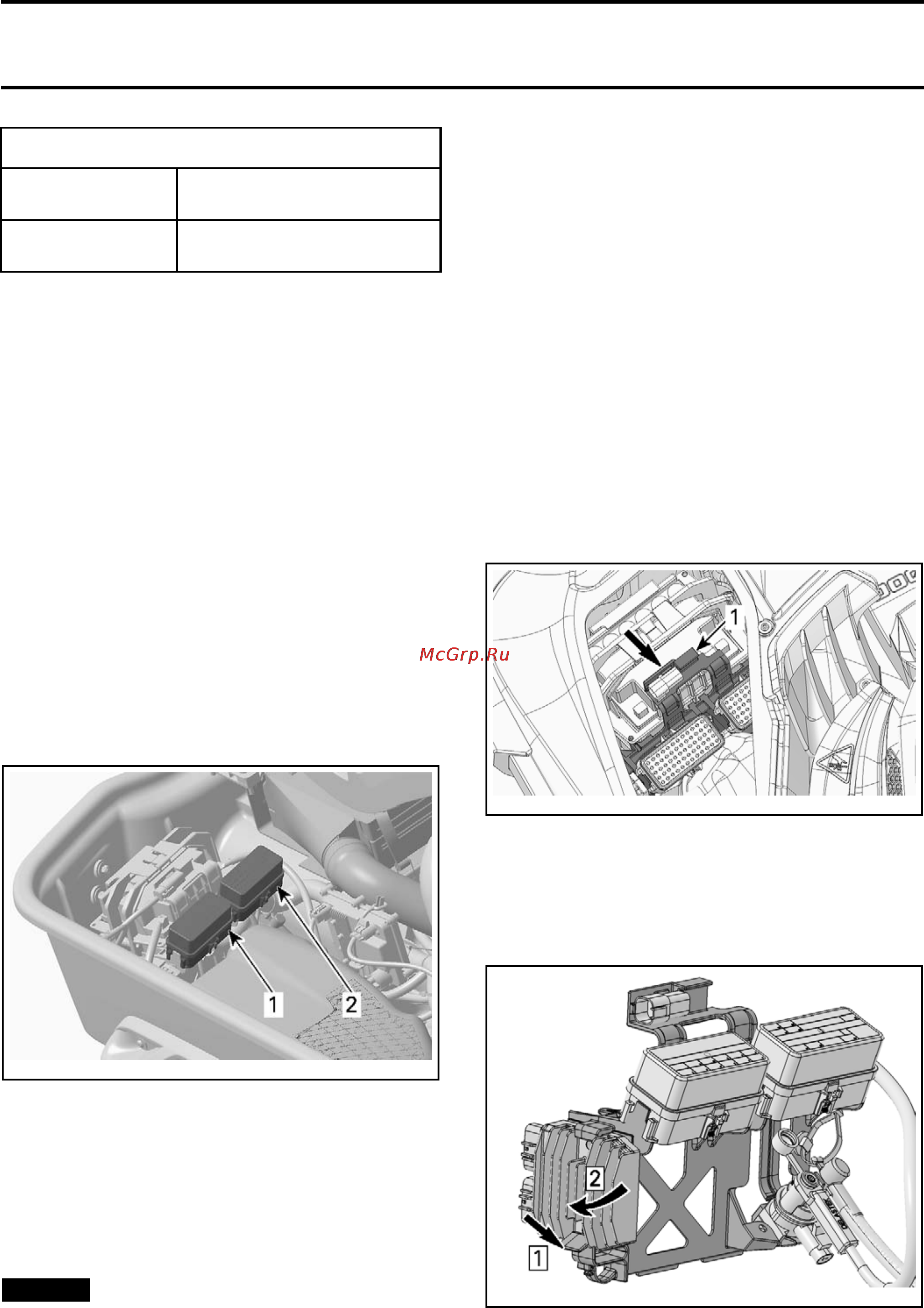

Section 05 ELECTRICAL SYSTEM
Subsection 04 (CHARGING SYSTEM)
OUTPUT CURRENT TEST
TEST ENGINE
SPEED
CURRENT (DC)
5500 RPM
Approx. 10 A (while
suspension does not move)
NOTE: Initia
l current reading will be higher than
specified d
ue to the battery drain from the engine
start. This
proves the charging system works.
Current loa
d will come down as the battery re-
covers its c
harge.
If current is below specification, carry out a stator
output test and wiring harness prior to concluding
that rectifier is faulty.
PROCEDURES
CHARGING SYSTEM FUSE
The charging system is protected by a 30 A fuse
(F15).
If the batt
ery becomes discharged, check the
charging s
ystem fuse condition, located in fuse
box #2.
Remove fuse box cover. Refer to
POWER DISTRI-
BUTION
.
2009-027-009_a
1. Fuse box #1
2. Fuse box #2
The voltage regulator/rectifier could be the culprit
of a blown charging system fuse. To test for this
possibility, simply disconnect the voltage regula-
tor/rectifier from the circuit and install a new fuse.
If the fuse still burns, check for a shorted wire or
connector pins.
NOTICE
Do not use a fuse of a higher rating
as this can cause severe electrical system and
component damage.
VOLTAGE
REGULATOR/RECTIFIER
Voltage Regulator Continuity Test
Due to internal circuitry, there is no static test
available to check continuity.
Voltage Regulator/Rectifier
Replacement
Voltage Regulator/Rectifier Removal
Remove components to reach voltage regula-
tor/rectifier as described in
BATTERY REMOVAL
of this subsection.
Disconnect connectors from voltage regula-
tor/rectifier.
Lift and push the top of electrical component sup-
port forward to unlock it from the battery holder.
ssi2009-002-008_a
1. Electrical component support
Lift electrical component support to reach the bot-
tom locking tab of voltage regulator/rectifier.
Unlock the bottom locking tab of voltage regula-
tor/rectifier and pull out voltage regulator/rectifier.
smr2009-033-006_a
Step 1: Push and hold
Step 2: Pull out
300
smr2009-033
