Section 05 ELECTRICAL SYSTEM

Subsection 04 (CHARGING SYSTEM)

WARNING

Battery electrolyte is caustic. To prevent

spillage, ensure battery cell caps are suffi-

ciently tight to properly seal each cell.

Battery Electrolyte Level

Check electro

lyte level in each cell, add distilled

wateruptothe

upper fill level line.

NOTICE

Add only distilled water in an acti-

vated battery.

Battery Testing

There are 3 types of battery tests.

TEST

METHOD

COMMENT

Voltage

test (load

applied)

A dynamic voltage test with a load

applied gives an accurate indication

of the condition of the battery. This

is the most recommended method.

Voltage test

(no load)

A static voltage test is carried out

without discharging current. It is

the simplest and most commonly

used but the most likely to give false

results.

Battery

electrolyte

reading

Gives an a

ccurate indication of the

charge conditionofeachcell.

Battery Voltage Test (Load Applied)

Use a load testing device such as the

ELECTRO

SPECIALTIES BATTERY LOAD TESTER (P/N 710)

.It

has a 500 A carbon pile adjustable load.

Follow battery load tester instructions.

Apply a load of 3 times the ampere-hour rating

of the battery for 14 seconds, then check battery

voltage.

BATTERY VOLTAGE TEST (LOAD APPLIED)

TIME TO MEASURE

INTO TEST

VOLTAGE

14 seconds 10.5 Vdc min.

If battery voltage has dropped below specifica-

tion, the battery storage capacity has decreased

appreciably and the battery should be replaced.

Battery Voltage Test (No Load)

NOTE: Be aware that the voltage test can indi-

cate that the battery is in good condition even

though the battery does not have enough stored

energy to crank the engine. A load test gives a

more accurate indication of the condition of the

battery.

If the battery has just received a charge, allow it to

rest for 1-2 hours before taking a voltage reading.

Set multimeter to Vdc and measure voltage at bat-

tery terminals.

FULLY CHARGED BATTERY VOLTAGE (NO LOAD)

12.6 Vdc minimum

Battery Electrolyte Reading

NOTE: Do not

top up cell electrolyte level with

distilled w

ater prior to taking an electrolyte read-

ing.

Check charge condition of each cell using a hy-

drometer.

NOTE: A hydrometer measures the charge of a

battery in terms of specific gravity of the elec-

trolyte.

BATTERY ELECTROLYTE SPECIFICATION

BATTERY CONDITION SPECIFIC GRAVITY

Fully cha

rged

1.265 - 1.

280

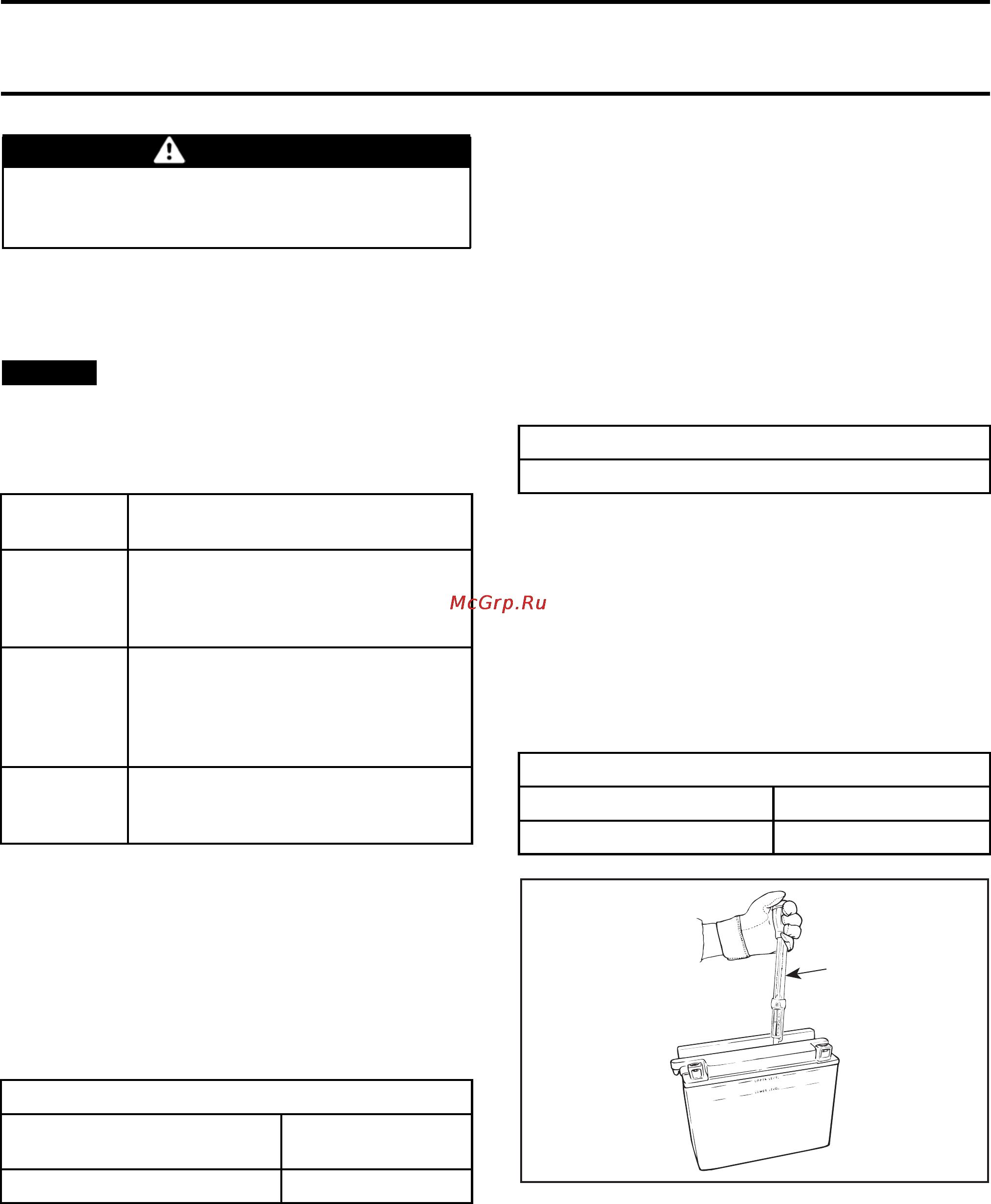

A17E0JA

1. Hydrometer

Most hydrometers give a true reading at 21°C

(70°F).

In order to obtain the correct value, adjust the ini-

tial reading by adding or substracting the number

indicated in the following table.

306 smr2009-033
