Section 05 ELECTRICAL SYSTEM
Subsection 05 (STARTING SYSTEM)

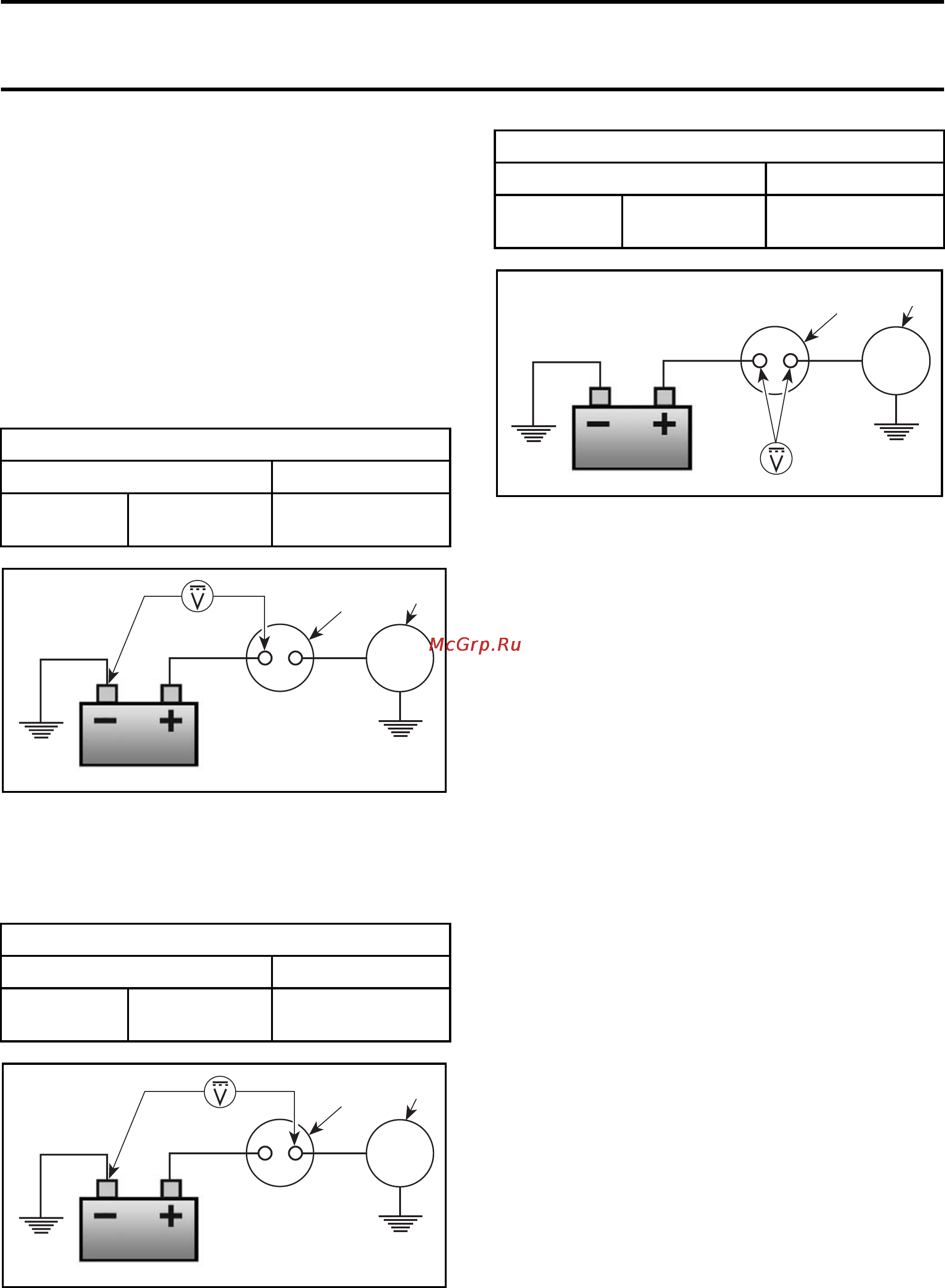

Solenoid Dynamic Test
Ensure battery and starter solenoid are properly
connected.
Set ECM in engine drowned mode: Depress
throttle lever and install a rubber band to hold
lever in full throttle position.
Set multimeter to Vdc.
Install the D.E.S.S. key.
Depress the START/STOP button.
As engine is cranking, measure the voltage as
per following tables.
SOLENOID DYNAMIC TEST (ENGINE CRANKING)
TEST PROBES VOLTAGE (DC)
Solenoid
battery post
Battery ground Battery voltage
M
1
2
smr2009-034-010_a
1. Starter motor
2. Starter solenoid
If test failed, check battery and cable from battery
to solenoid.
If test succeeded, continue with next test.
SOLENOID DYNAMIC TEST (ENGINE CRANKING)
TEST PROBES VOLTAGE (DC)
Solenoid
battery post
Battery ground Battery voltage
M
1
2
smr2009-034-010_b
1. Starter motor
2. Starter solenoid
If test failed, replace solenoid.
If test succeeded, continue with next test.
SOLENOID DYNAM
IC TEST (ENGINE CRANKING)
TEST PROBES VOLTAGE (DC)
Solenoid
battery post
Solenoid
starter post
0.2 Vdc max.
M
1
2
smr2009-034-010_c
1. Starter motor
2. Starter solenoid
If test failed, replace solenoid.
If all solenoid dynamic tests are as specified, carry
out a
STARTER QUICK TEST
.
Remove rubber band from throttle lever.
Reinstall removed parts.
Solenoid Removal
1. Disconnect battery. Refer to
CHARGING SYS-
TEM
section.
2. Detach fuse box 2 from its bracket.
3. Detach diagnostic connector from battery
holder.
4. Detach electrical component support from bat-
tery holder.
5. Disconnect voltage regulator/rectifier connec-
tors.
6. Disconnect starter solenoid connector.
320 smr2009-034
