Section 05 ELECTRICAL SYSTEM
Subsection 07 (GAUGE)
If one or all of the indicator lights does not come
on, refer to
MODE/SET AND UP/DOWN ARROW
SWITCH TEST USING A MULTIMETER
.
MODE/SET and UP/DOWN Switch Test
Using a Multimeter

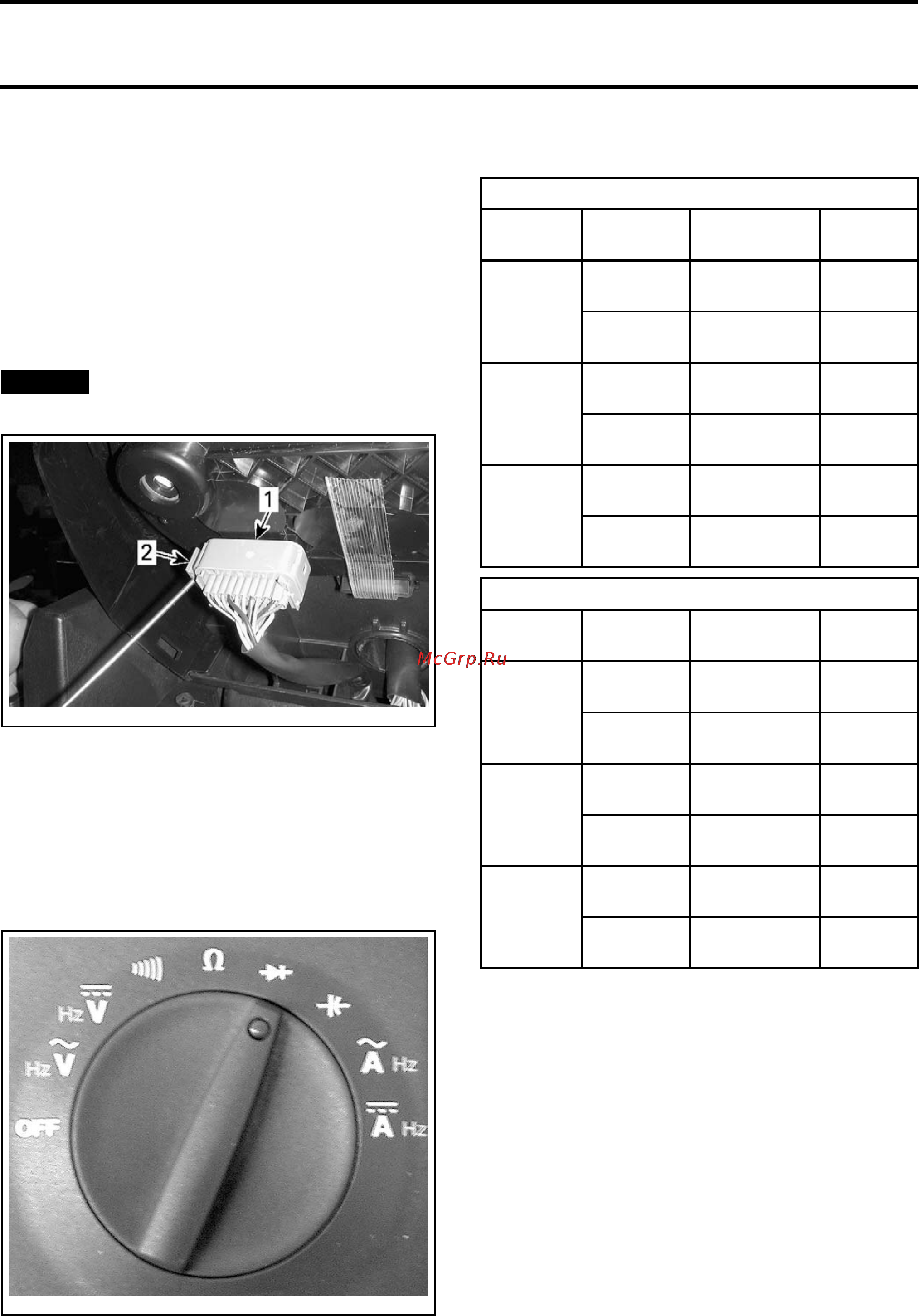

1. Remove the gauge support cover, refer to
IN-
FORMATION CENTER REMOVAL
in this sub-
section.
2. Disconnect the gauge connector.
NOTICE
Pull connector lock out. Do not twist
the screwdriver.
smr2009-
042-002_a
1. Gauge connector
2. Pull out to unlock connector
3. Set the F
LUKE 115 MULTIMETER (P/N 529 035
868)
to t
he diode test function.
NOTE: It is important to set the multimeter
to the diode check function when testing the
MODE/SET and UP/DOWN arrow switches as it
contain diodes.
vmr2006-020-005
4. Test the MODE/SET and UP/DOWN arrow
switches as per following tables.
MODE/SET SWITCH TEST
SWITCH
POSITION
FLUKE
115
GAUGE
CONNECTOR
VOLTAGE
Red lead
Black lead
Pin 17
Pin 18
Approx.
2Vdc
Switch
released
Black lead
Red lead
Pin 17
Pin 18
OL
Red lead
Black lead
Pin 17
Pin 18
Approx.
1.1 Vdc
MODE
depressed
Black lead
Red lead
Pin 17
Pin 18
OL
Black lead
Red lead
Pin 17
Pin 18
Approx.
1.6 Vdc
SET
depressed
Black lead
Red lead
Pin 17
Pin 18
OL
UP/DOWN ARROW SWITCH TEST
SWITCH
POSITION
FLUKE
115
GAUGE
CONNECTOR
VOLTAGE
Red lead
Black lead
Pin 16
Pin 18
Approx.
2Vdc
Switch
released
Black lead
Red lead
Pin 16
Pin 18
OL
Red lead
Black lead
Pin 16
Pin 18
Approx.
1.1 Vdc
UP
depressed
Black lead
Red lead
Pin 16
Pin 18
OL
Red lead
Black lead
Pin 16
Pin 18
Approx.
1.6 Vdc
DOWN
depressed
Black lead
Red lead
Pin 16
Pin 18
OL
NOTE: Remember that each diode should drop
approximately 0.6 Vdc when positively biassed,
and read as an OL (open circuit) when negatively
biassed (leads reversed).
When measuring between pins 17 and 18, or 16
and 18, if an OL is obtained with both positive
and negative diode biassing, test the continuity of
each wire between the gauge and switch assem-
bly. If continuity is good, replace the switch as-
sembly.
If any reading is significantly different than speci-
fied, carry out the same test at the switch connec-
tor, refer to the wiring diagram. If you obtain the
same results, replace the switch assembly.
smr2009-036 353
