Section 06 STEERING AND PROPULSION
Subsection 01 (STEERING AND O.T.A.S.)

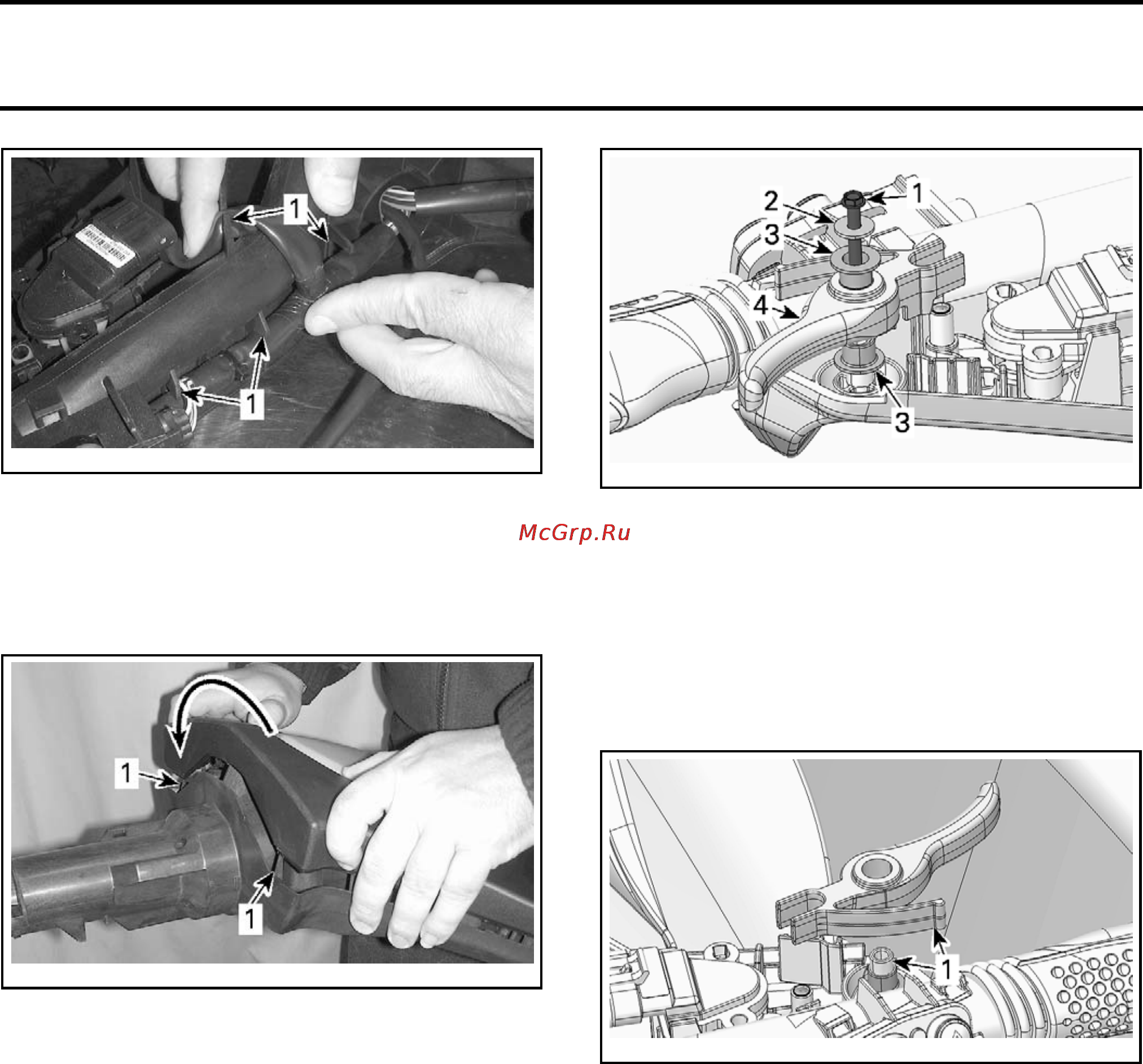

smr2009-037-019_a
1. Harness slots
5.2 Clip the top of the cover.
5.3 Stretch the bottom of the steering cover
until the cover edge passes over the inner
ribs.
smr2009-037-020_a
STEERING REMOVED FOR CLARITY PURPOSE
1. Inner ribs
5.4 Push both side of the cover to lock it with
the steering column.
5.5 Install switch covers.
THROTTLE AND iBR LEVERS
NOTE: The following procedure demonstrates
the replacement of the throttle lever but the same
procedure will be used for the iBR lever.
Lever Replacement
1. Remove
STEERING COVER
, see procedure in
this subsection.
2. Remove the screw and washer securing throt-
tle lever.
3. Remove throttle lever and its bushings.
smr2009-037-031_a
1. Retaining screw
2. Washer
3. Bushings
4. Throttle lever
4. Clean throttle lever area from dust or any de-
posits.
5. Apply
XPS SYNTHETIC GREASE (P/N 293 550 010)
on shaft that receives throttle lever and on the
end of the return tab.
smr2009-037-032_a
1. Apply g
rease here
6. Install the lever.
6.1 Insta
ll both bushings in lever hole.
6.2 Insert sensor lever end into throttle lever
fork.
6.3 Position the return tab against the handle-
bar.
6.4 Secu
re the lever with washer and screw.
6.5 Tighten the lever screw to 0.7 N•m
(6 lbf•in).
7. Reinstall all removed parts using appropriate
procedure.
STEERING CABLE
Steering Cable Replacement
1. Remove the moving deck. Refer to
BODY
sub-
section.
366 smr2009-037
