Section 06 STEERING AND PROPULSION

Subsection 02 (iBR AND VTS)

IBR GATE LOCKING SLEEVE

REPLACEMENT

NOTE: The iBR locking sleeve (iBR key) should be

replaced if it is cracked, broken, show signs of ad-

vance wear, is loose fitting in the "U" arm or on the

iBR actuator shaft, or every 100 hours as per the

maintenance schedule.

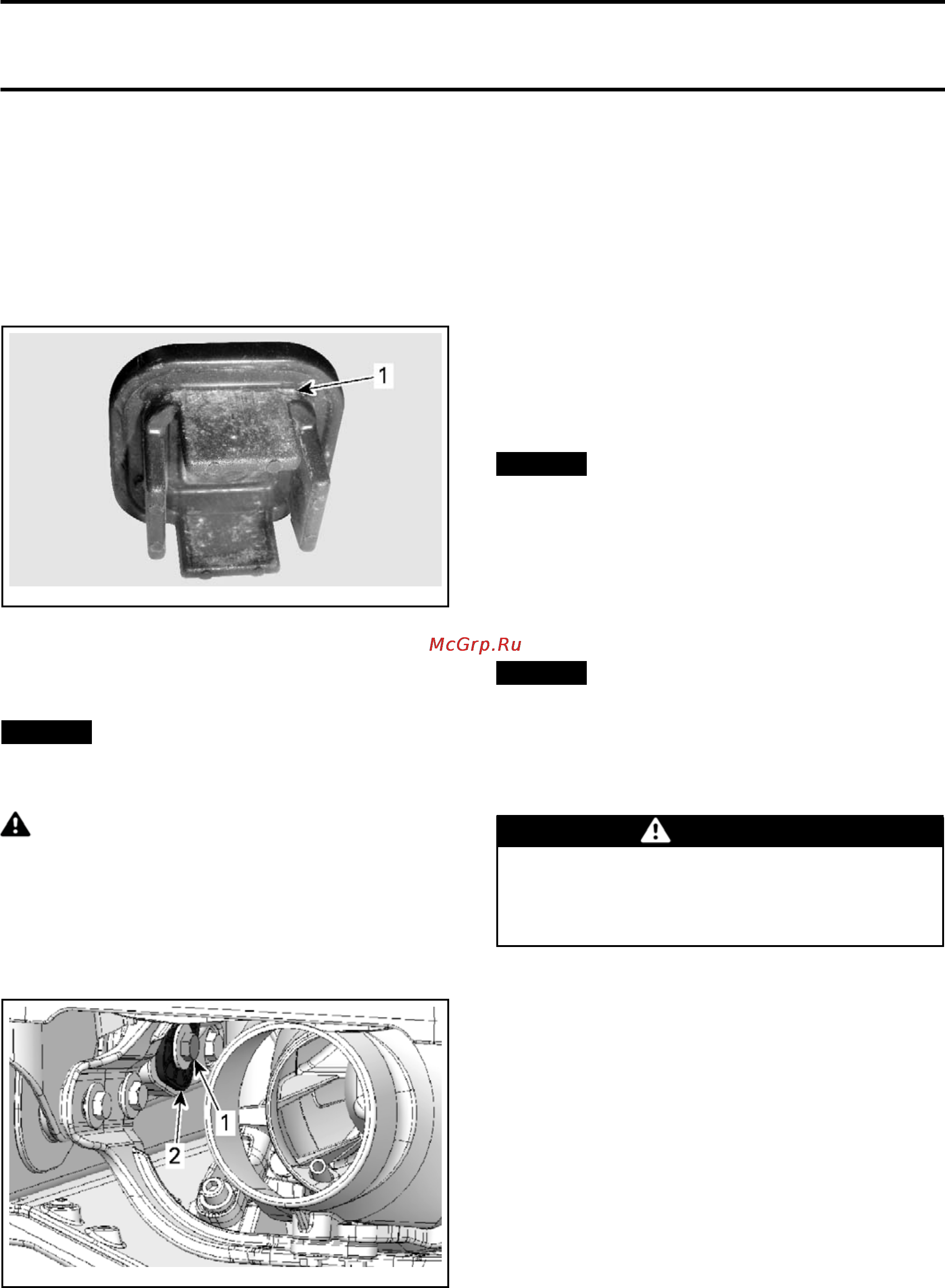

smr2009-038-020_a

1. Worn locking sleeve

1. Move the iBR gate to the forward position (full

up), refer to

iBR OVERRIDE

SYSTEM DE-

SCRIPTION (iBR)

of this subsection.

NOTICE

Do not try to move the iBR gate by

hand if the locking sleeve (iBR key) is installed

or component damage will occur.

CAUTION Wait at least 5 minutes for wa-

tercraft electrical power to shut down before

working in the iBR gate area.

2. Remove and discard the hexagonal screw(s) se-

curing the iBR gate locking sleeve (iBR key) and

remove the sleeve from the iBR "U" arm and ac-

tuator.

smr2009-038-002_a

1. Hexagonal screw(s)

2. Locking sleeve

3. Insert a new locking sleeve.

4. Install new screw(s) with Scotch Grip thread-

locker and torque as specified in exploded view.

INSPECTION

IBR SYSTEM FUNCTIONAL TEST

Test on Dry Land

NOTE: This test requires two people. One person

to start watercraft and operate controls, and one

person to observe iBR gate movement.

1. Provide adequate ventilation of exhaust gases

or move watercraft outside.

NOTICE

Do not install an exhaust ventilation

hose in the iBR gate area or damage may oc-

cur when the iBR gate moves downward dur-

ing operation.

2. Connect a water hose to the watercraft to pro-

vide exhaust system cooling when operating

engine. Refer to

EXHAUST SYSTEM

subsec-

tion for procedure.

NOTICE

– Ensure there are no tools or other object that

may interfere with the iBR gate movement.

– Do not run watercraft for more than 2 min-

utes out of water or damage may occur to

drive shaft seal carrier.

WARNING

The person observing the iBR gate move-

ment must stand to the side of the stern well

clear of the iBR gate and pump nozzle, and

in full view of the operator.

3. Start watercraft and allow to run at idle RPM.

NOTE: If

iBR gate was not in the neutral position,

it will m

ove to the neutral position on engine start

up.

4. Depress the throttle lever slightly and visually

confirm the iBR gate moves to the forward po-

sition (up to the VTS trim position), then release

throttle. The iBR gate must remain in the for-

ward position.

5. Depress the iBR lever fully and confirm the iBR

gate moves to the full down position.

6. Relea

se the iBR lever completely and confirm

the i

BR gate moves to the neutral position.

7. Shut engine off and disconnect water hose.

smr2009-037 381
