Section 06 STEERING AND PROPULSION

Subsection 02 (iBR AND VTS)

2. Open the boarding platform and remove the LH

storage bin.

3. Disconnect the two aft electrical connectors

from the iBR actuator. The forward electrical

connector (iBR motor power) does not need to

be removed.

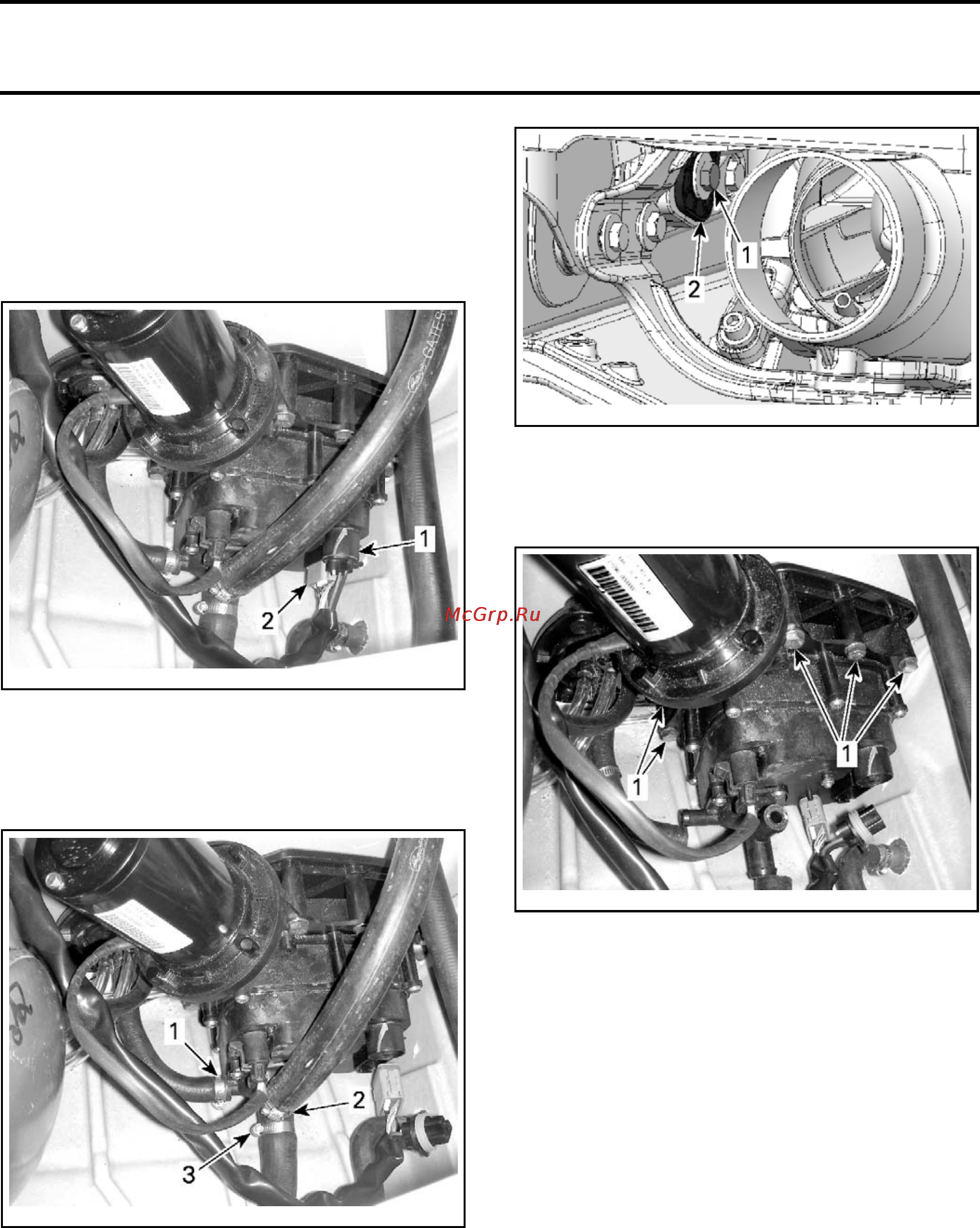

smr2009-038-003_a

1. iBR actua

tor 3 pin connector

2. iBR actuator 12 pin connector

4. Disconnect the three water pressure hoses in-

dicated in the following illustration from the iBR

actuator.

smr2009-038-004_a

1. Pressure hose from jet pump

2. Pressure hose to intercooler

3. Pressure hose to exhaust manifold

5. Remove and discard the hexagonal screw(s) se-

curing the iBR gate locking sleeve (iBR key) and

remove the sleeve from the iBR "U" arm and ac-

tuator.

smr2009-038-002_a

1. Hexagonal screw(s)

2. Locking sleeve

6. Remove the five hexagonal screws securing

the iBR actuator to the LH support plate.

smr2009-038-005_a

1. Hexagonal screws to remove (1 screw not visible)

7. Pull t

he iBR actuator from the support plate.

iBR Actuator Installation

Insta

llation is the reverse of the removal proce-

dure h

owever, pay attention to the following:

– Clean all actuator mounting screw threads and

apply

LOCTITE 243 (BLUE) (P/N 293 800 060) on

threads (or install new screws with Scotch

grip).

– Install the iBR locking sleeve using a new

hexagonal screw with Scotch grip.

–Torq

ue hexagonal screws securing iBR actuator

and

iBR locking sleeve as specified in exploded

vie

– Torque gear clamps securing water pressure

hoses to 2 N•m (18 lbf•in).

– Apply a small amount of

DIELECTRIC GREASE

(P/N 293 550 004)

to the connector pins before

installing the connectors on the iBR actuator.

392 smr2009-037
