Section 06 STEERING AND PROPULSION

Subsection 02 (iBR AND VTS)

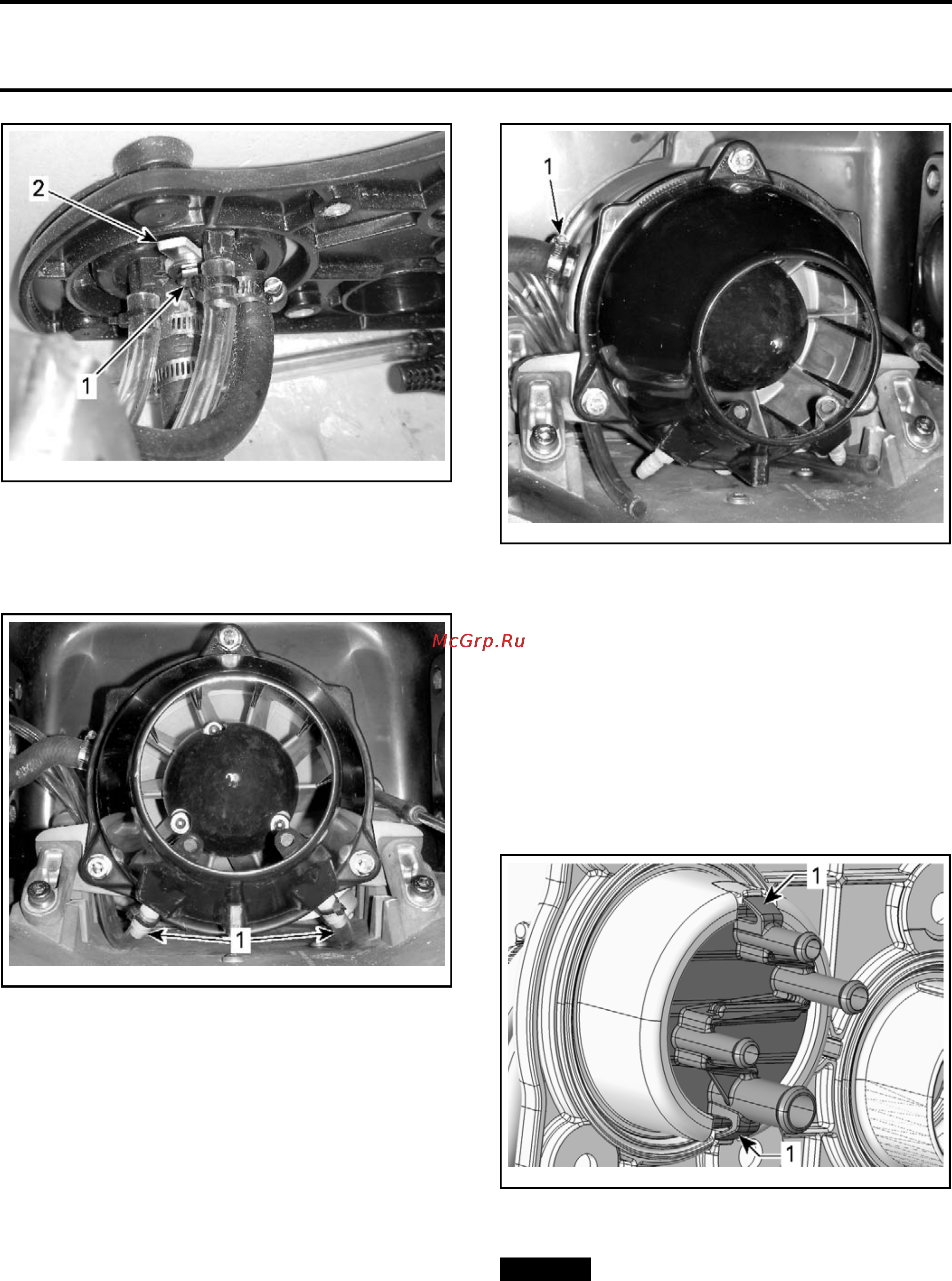

smr2009-043-005_a

TYPICAL

1. Hexagonal screw

2. Metal fitting plate retainer

4. Cut the locking ties and disconnect the 2 bailer

hoses from the jet pump venturi.

smr2009-039-002_a

1. Bailer hoses

5. Loose

n the gear clamp and disconnect the wa-

ter p

ressure hose from the jet pump.

smr2009-039-003_a

1. Water pressure hose

6. Pull the fitting plate out of the outer support

plate from the jet pump side.

Models With Plastic Retaining Tabs

on Fitting Plate

NOTE: On models with plastic retaining tabs on

the fitting plate, the procedure is the same as

models with a metal retaining tab except for the

following.

1. Compress the fitting plate retaining tab and pull

the fitting plate from the outer support plate.

smr2009-043-012_a

1. Fitt

ing plate tabs

2. Discard the fitting plate.

NOT

ICE

When the fitting plate retaining tabs

are compressed for removal, the tabs become

deformed and weakened. Do not reinstall a

used fitting plate. Always install a new fitting

plate. Failure to comply with this notice can

result in water seeping into the bilge.

smr2009-037 401
