Section 06 STEERING AND PROPULSION
Subsection 02 (iBR AND VTS)
5. Depress and hold the VTS UP arrow button and
ensure the iBR gate moves up to the forward
position.
NOTE: If the VTS button is released before full
travel of the iBR gate, movement of the iBR gate
will cease.
If the iBR does not respond to VTS button com-
mands (UP or DOWN), carry out the following
VTS
SWITCH TEST USING B.U.D.S.
VTS Control Button Test Using
B.U.D.S.
1. Connect watercraft to the latest B.U.D.S. soft-
ware, refer to
COMMUNICATION TOOLS AND
B.U.D.S. SOFTWARE
.
2. Select the Read Data button.
3. Check for an applicable fault code on the
FAULTS
page.
4. Select the Monitoring page tab.
5. In the lower LH corner of the monitoring page,
select the Cluster tab.
6. Press the VTS UP arrow and DOWN arrow but-
ton alternately and look for the VTS UP and VTS
Down indicator lights to come on in the Cluster
Lamp Active field.

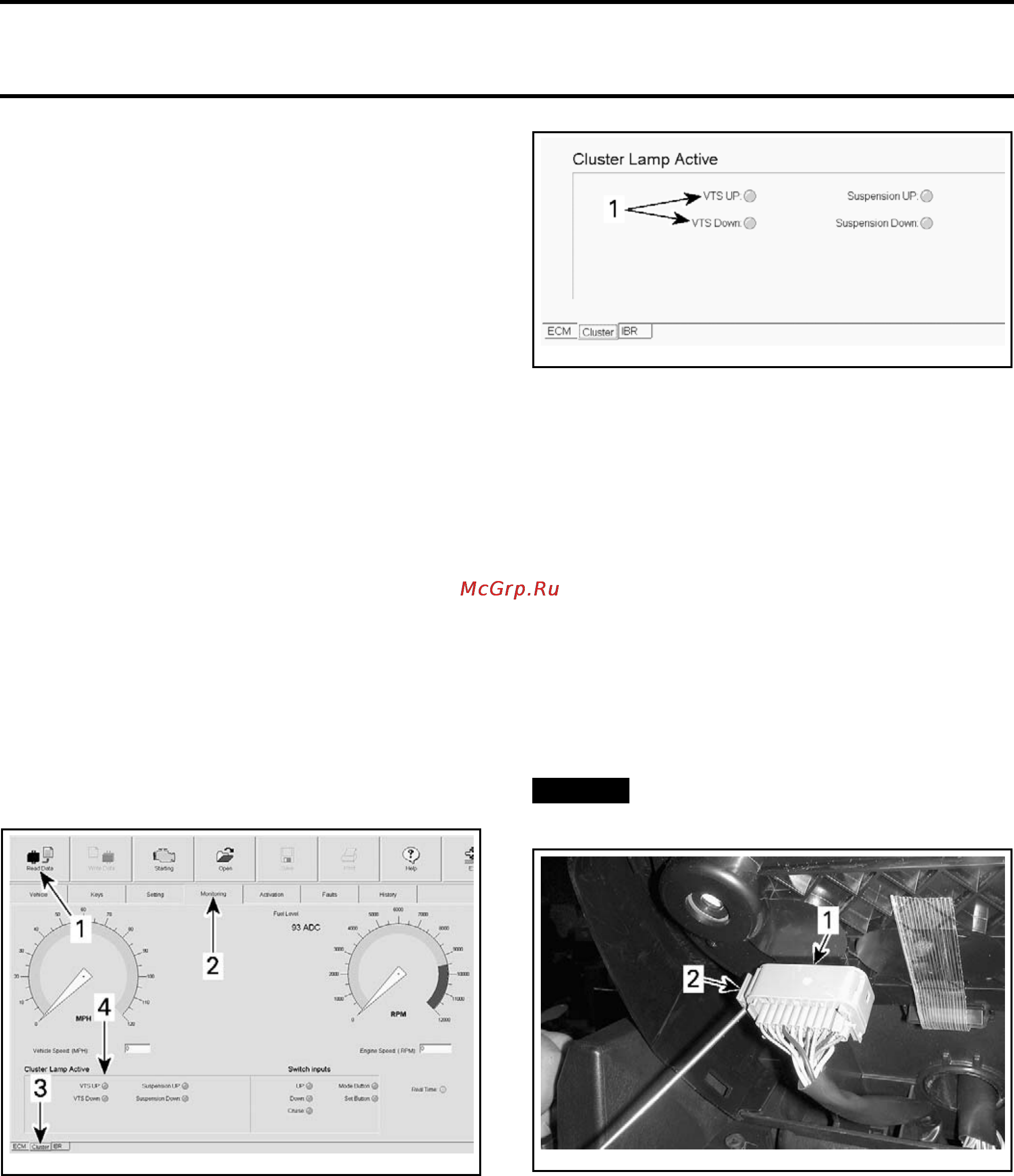

smr2009-036-002_c
1. Read Data button
2. Monitoring tab
3. Cluster tab
4. Cluster Lamp Active field
smr2009-041-051_b
1. VTS UP and VTS Down indicator lights
If each of the gauge button indicator lights come
on when the applicable switch is closed, the VTS
control button switches and wiring are good. The
problem may be related to the information center
or iBR module.
If one or all of the indicator lights do not come on,
refer to
VTS CONTROL BUTTON TEST USING A
MULTIMETER
.
VTS Control Button Test Using a
Multimeter
1. Remove the gauge support cover, refer to
GAUGE
subsection.
2. Disconnect the gauge connector.
NOTICE
Pull connector lock out. Do not twist
the screwdriver.
smr2009-042-002_a
1. Gauge connector
2. Pull o
ut to unlock connector
3. Use a FLUKE 115 MULTIMETER (P/N 529 035 868)
set to the diode test function. Test the VTS but-
ton switches as per following tables.
NOTE:
It is important to set the multimeter to the
diode
check function when testing the VTS control
swit
ches.
404 smr2009-037
