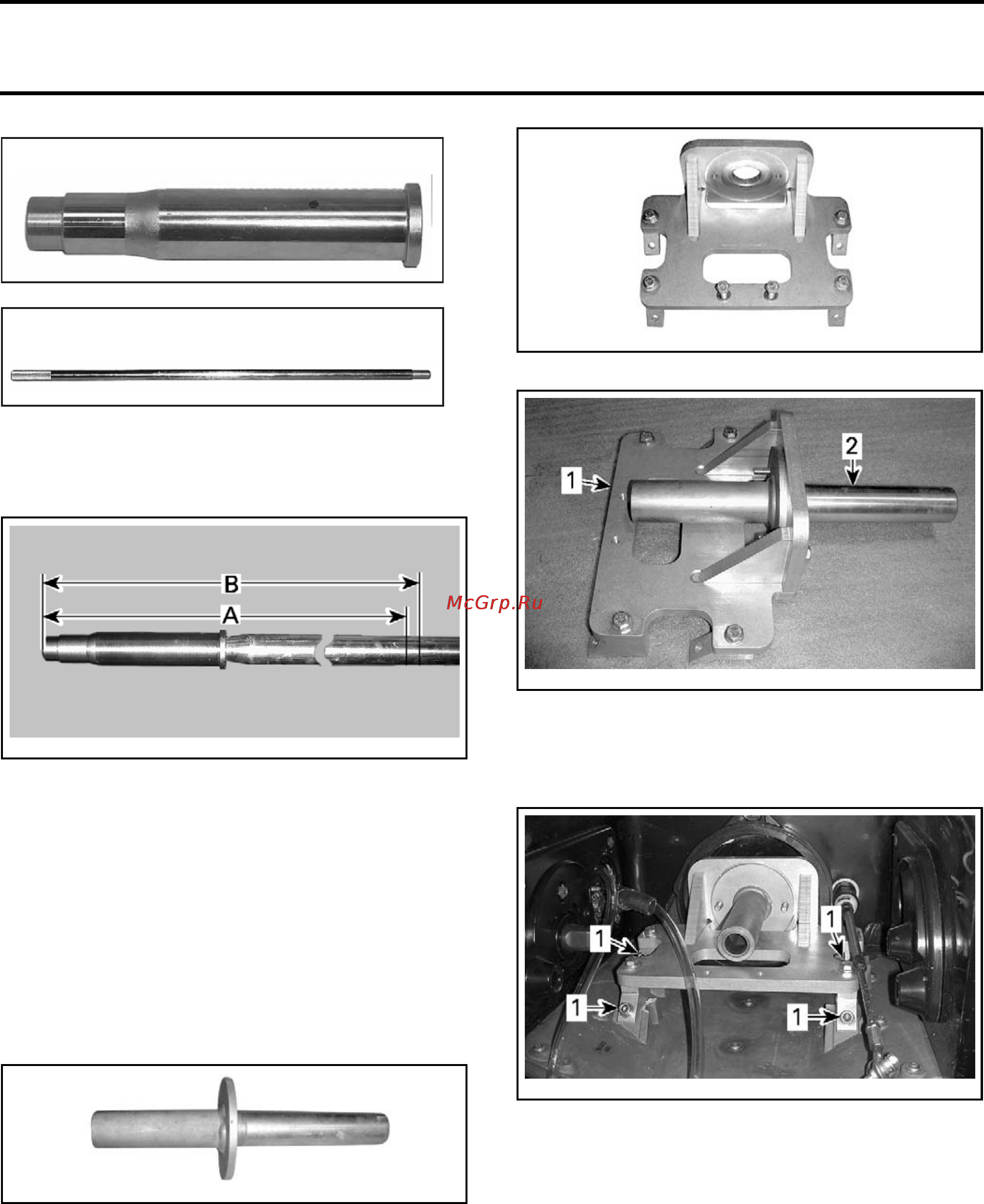

Section 02 ENGINE
Subsection 01 (ENGINE REMOVAL AND INSTALLATION)
529 035 719
295 000 141
Trace two thin lines on alignment shaft. One
at 739 mm (29-3/32 in) and the other at 742 mm
(29-7/32 in).
smr2009-016-200_a
A. 739 mm (29-3/32 in)
B. 742 mm (29-7/32 in)
NOTE: To perform this procedure the jet pump
and the drive shaft must be removed. Refer to
JET PUMP
and
DRIVE SYSTEM
subsections.
To verify alignment proceed as follows:
1.Removethesealingringandthedriveshaft
boot. Refer to
DRIVE SHAFT
subsection.
2. Install the
ALIGNMENT SHAFT SUPPORT (P/N 529
035 506)
on the ENGINE ALIGNMENT PLATE
(P/N 529 036 170)
.
529035506
ALIGNMENT SHAFT SUPPORT
529036170
ENGINE ALIGNMENT PLATE
smr2009-016-027_a
1. Engine alignment plate
2. Engine al
ignment support
3. Secure the tool on ride plate using jet pump
socket screws.
smr2009-016-028_a
1. Jet pump socket screws
4. Install the ALIGNMENT SHAFT ADAPTER (P/N 529
035 719)
in engine PTO housing.
smr2009-016 21
