Section 06 STEERING AND PROPULSION

Subsection 04 (DRIVE SHAFT)

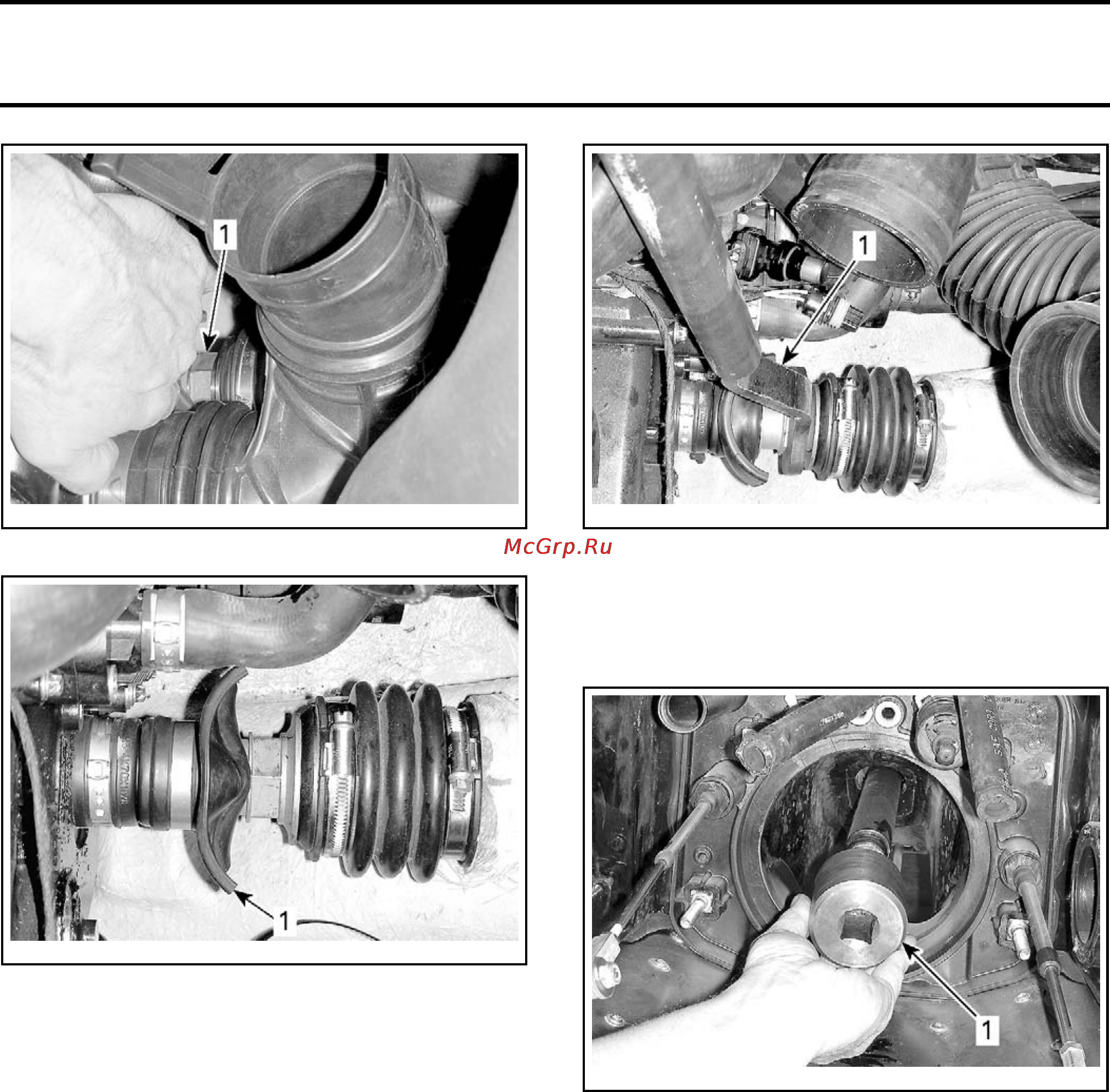

smr2009-040-003_a

1. Sealing ring

smr2009-007-001_a

TYPICAL

1. Rubber protector

10. Remove all spark plugs from engine. Refer to

IGNITION SYSTEM

NOTE: Spark plug removal will ease engine rota-

tion for drive shaft removal.

11. In engine compartment, install the

DRIVE

SHAFT WRENCH (P/N 529 036 167)

on the

hexagon of sealing ring.

smr2009-007-002_a

TYPICAL

1. Drive shaft wrench

12. From rear of watercraft, install the DRIVE

SHAFT ADAPTER (P/N 529 035 985)

on drive

shaft end.

smr2009-007-003_a

TYPICA

1. Drive shaft adapter

13. While a coworker holds the drive shaft wrench

in the engine compartment, unscrew the drive

shaft clockwise (LH threads).

smr2009-040 431
