Section 07 BODY AND HULL

Subsection 01 (SUSPENSION (iS))

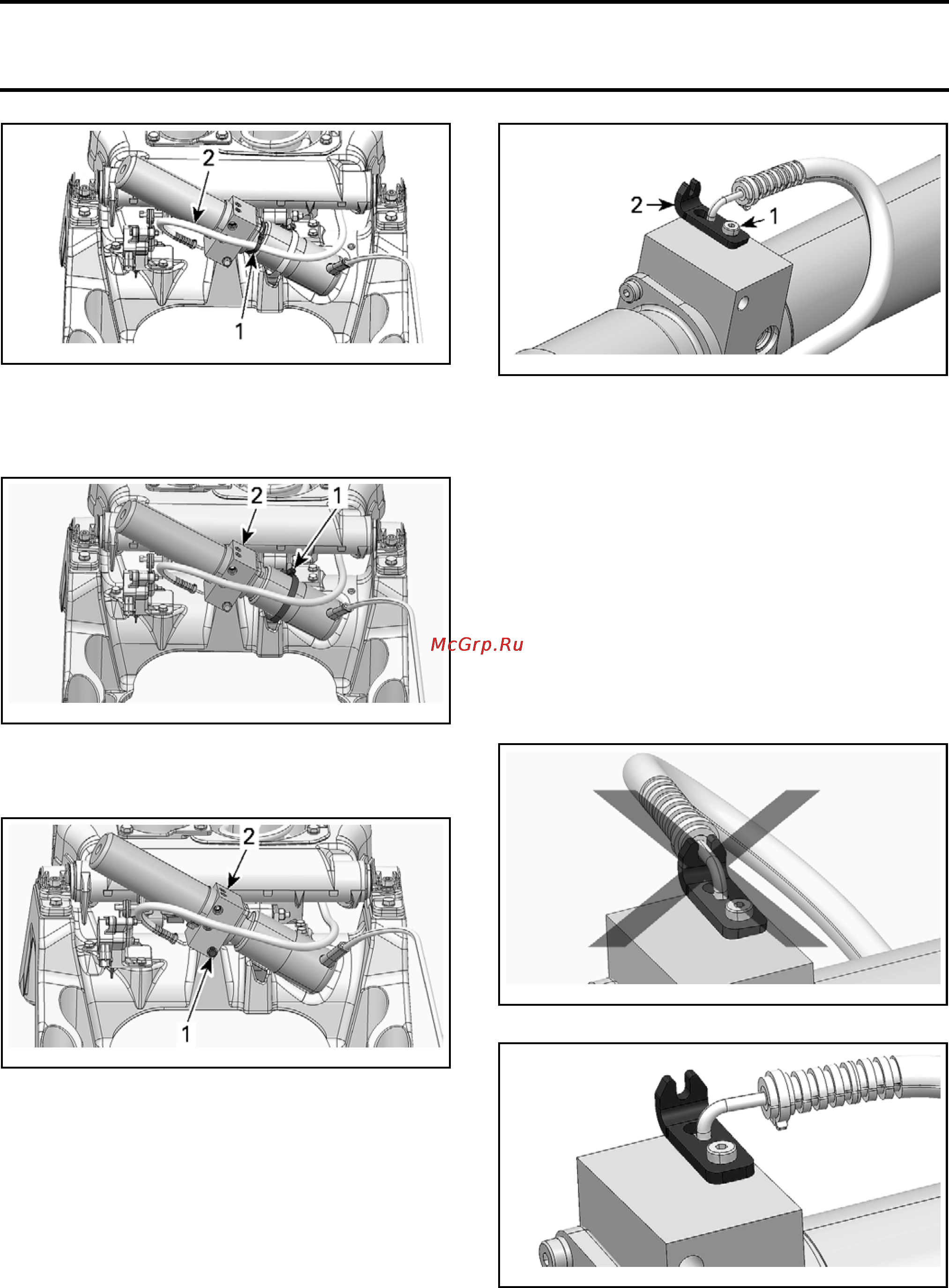

smr2009-041-016_a

1. Cut this locking tie

2. Hydraulic hose

6. Unscrew the retaining clamp completely and re-

move it.

smr2009-

041-017_a

1. Retaining clamp

2. Hydraulic pump

7. Remove h

ydraulic pump retaining bolt.

smr2009-041-018_a

1. Retaining bolt

2. Hydraulic pump

8. At the bottom of pump housing, remove socket

screw securing hydraulic hose lock.

smr2009-041-019_a

1. Socket screw

2. Hydraulic hose lock

9. Remove hose from pump and plug hose to

avoid oil spillage.

10. Place your finger on pump opening and re-

move pump from vehicle.

NOTE: Wipe any oil spillage.

Hydraulic Pump Installation

(Without Actuator)

1. Install hydraulic hose on pump and secure hose

using the the hydraulic hose lock.

NOTE: The hose must turn freely. Do not inserted

hose into lock hook.

smr200

9-041-020_a

WRONG POSITION

smr2009-041-021

RECOMMENDED POSITION

2. Apply LOCTITE 243 (BLUE) (P/N 293 800 060) on

threads of lock screw.

3. Tighten screw to 8 N•m (71 lbf•in).

456 smr2009-041
